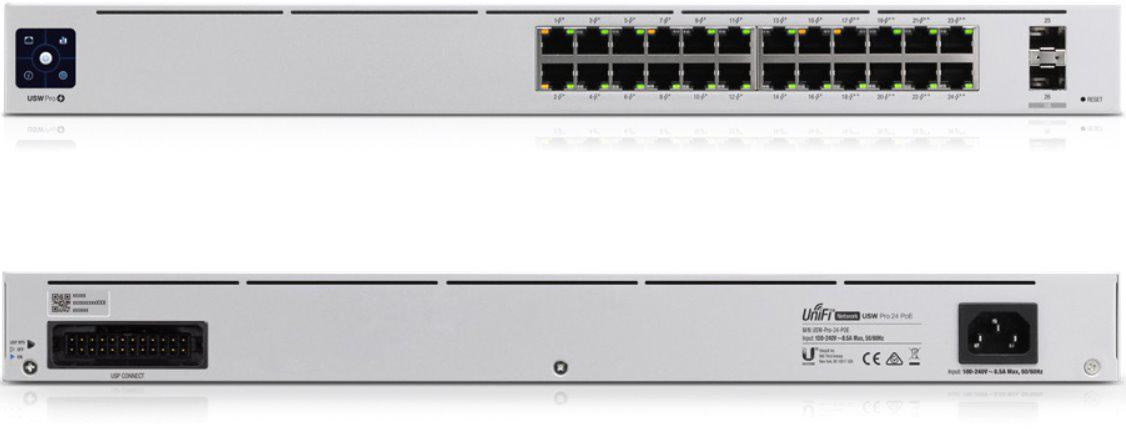

UBIQUITI UNIFI PRO SWITCH 24-PORT POE L3

Ubiquiti UniFi pro switch, USW-PRO-24-POE, 802.3at/bt PoE Gigabit Switches with Layer 3 Features and SFP+, auto-sensing 802.3at PoE+ and 802.3bt PoE++. Integrated Fans for Near-Silent Cooling, (16) Gigabit RJ45 ports with 802.3af/at, (8) Gigabit RJ45 ports with 802.3bt, (2) 1/10G SFP+ ports.
Garantie: 24 luni


Specificatii tehnice

Layer: Layer-2
Stackable: Yes
Forwarding rate: 65.472 Mpps
LED indicators: Activity, Link, PoE, Speed, System
Certification: CE, FCC, IC
Throughput: 44000 Mpps
Switching capacity: 8.8 Gbit/s
MAC address table: 16000 entries
Packet buffer memory: 2 MB
Jumbo frames support: Yes
Static route: Yes
Form factor: 1U
Reset button: Yes
Rack mounting: Yes
Product colour: Silver
Display type: LCM
Flow control support: Yes
Rate limiting: Yes
VLAN support: Yes
Quality of Service (QoS) support: Yes
Networking standards: IEEE 802.3af, IEEE 802.3at
Harmonized System (HS) code: 85176990
Switch layer: L2/L3
Web-based management: Yes
System event log: Yes
Switch type: Managed
Number of VLANs: 1000
10G support: Yes
Port mirroring: Yes
Auto MDI/MDI-X: Yes
Power over Ethernet (PoE): Yes
Full duplex: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Spanning tree protocol: Yes
Auto-sensing: Yes
IPv4 routes: 64
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -5 - 40 °C
SFP module slots quantity: 2
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 24
SFP+ module slots quantity: 2
Power connector: AC-in jack
Redundant power supply (RPS) support: Yes
Number of power supply units: 1
DC input voltage: 52 V
Input current: 7.69 A
Power supply included: Yes
Power consumption (max): 450 W
Power source: AC
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Total Power over Ethernet (PoE) budget: 400 W
Power over Ethernet (PoE) power per port: 64 W
Power over Ethernet plus (PoE+) ports quantity: 16
Power over Ethernet 4PPoE (PoE++) ports quantity: 8
Authentication type: IEEE 802.1x, RADIUS
IGMP snooping: Yes
DHCP features: DHCP relay, DHCP server, DHCP snooping
Weight: 4.3 kg
Width: 442.4 mm
Depth: 285.4 mm
Height: 43.7 mm
LAN-Ports: 24
LAN port type: 10Gigabit
Rackable: Yes
Redundant-PSU: No
