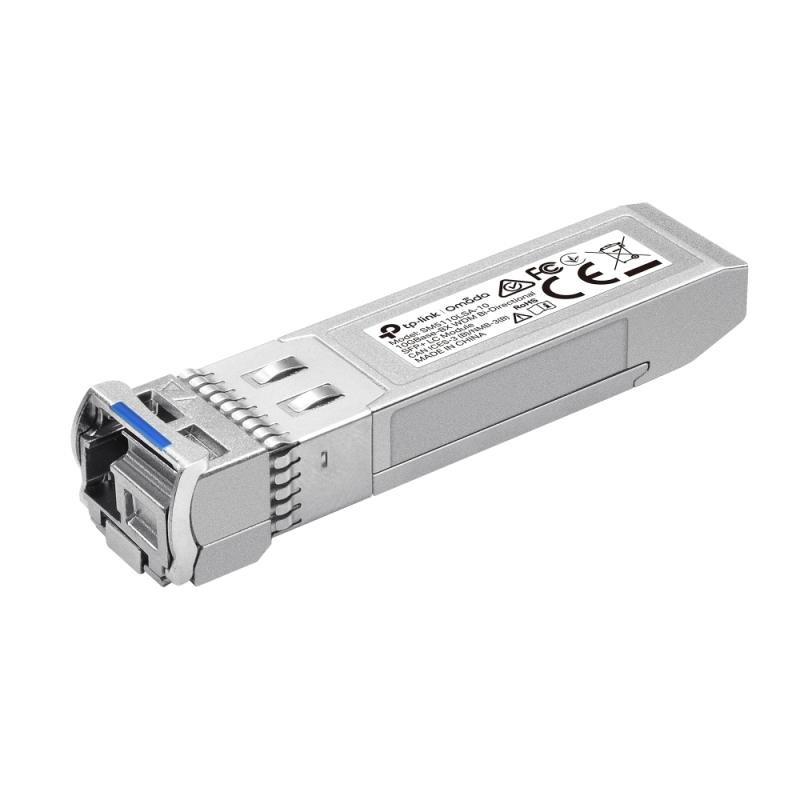

Omada 10GBase-BX SM5110LSA-10

Omada 10Gbase-BX Single-Mode WDM Bi-Directional SFP+ Module SPEC: LC/UPC Connector, TX:1330nm/RX:1270nm, Single-mode, 10 km
Garantie: 60 luni


Specificatii tehnice

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Product colour: Silver
Hot-swap: Yes
Minimum operating temperature: 0 °C
Storage relative humidity (H-H): 5 - 90%
Maximum operating temperature: 70 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 70 °C
Manual: Yes
Quantity per pack: 1 pc(s)
Fiber optic connector: LC (UPC)
Digital Diagnostics Monitoring (DDM): Yes
Tx wavelength (max): 1330 nm
Networking standards: IEEE 802.3ae
Maximum data transfer rate: 10312 Mbit/s
Rx wavelength (max): 1270 nm
SFP transceiver type: Fiber optic
Interface type: SFP
Single-mode fiber (SMF) supported: Yes
Fiber cable diameters supported (core/cladding): 9/125 µm
Maximum transfer distance: 10000 m
Input voltage: 3.3 V
Depth: 14 mm
Width: 57 mm
Height: 12 mm
Switch-CM-Type: SFP
