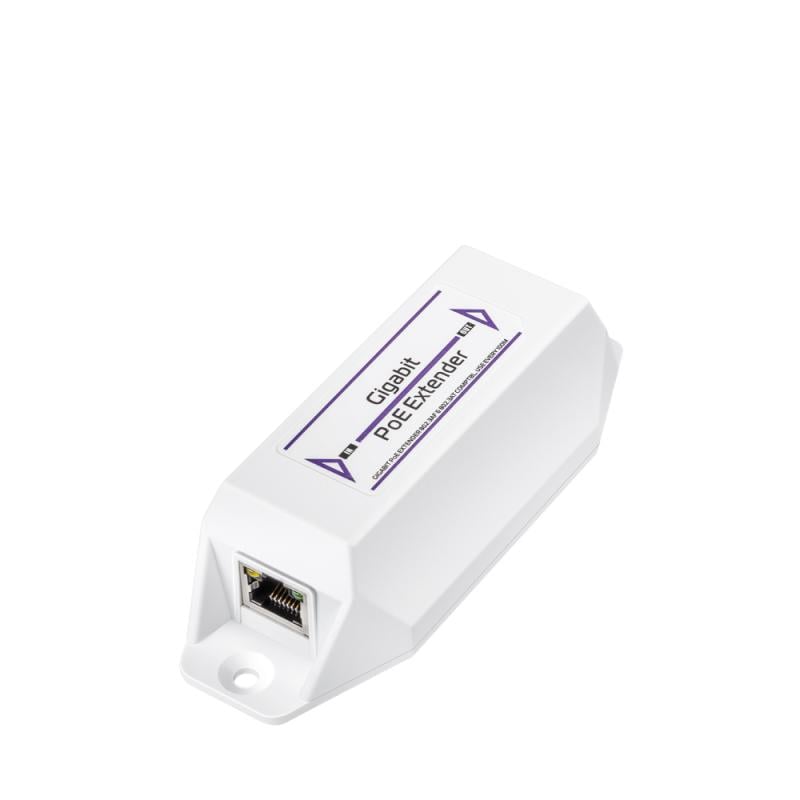

CUDY Gigabit PoE+ Extender

CUDY 10/100/1000Mbps PoE+ Extender, IEEE802.3af/at
Garantie: 24 luni


Specificatii tehnice

Plug and Play: Yes
LED indicators: Activity, Link, PoE
Wall mountable: Yes
Ethernet interface type: Gigabit Ethernet
Easy to install: Yes
Cabling technology: 10/100/1000Base-T(X)
Power over Ethernet (PoE): Yes
Maximum operating distance: 100 m
Pin assignment & polarity: 1/2 (-), 3/6 (+), 7/8 (-), 4/5 (+)
Output power: 22 W
Product colour: White
Cable types supported: Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1
Duplex system: Full, Half
Ethernet LAN data rates: 10,100,1000 Mbit/s
Storage relative humidity (H-H): 10 - 95%
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): -40 - 45 °C
Manual: Yes
Quantity per pack: 1 pc(s)
Package type: Box
Ethernet LAN (RJ-45) ports: 2
Networking standards: IEEE 802.3af, IEEE 802.3at
RJ-45 input ports: 1
RJ-45 output ports: 1
Power over Ethernet (PoE) power per port: 22 W
Depth: 60 mm
Height: 40 mm
Width: 145 mm
