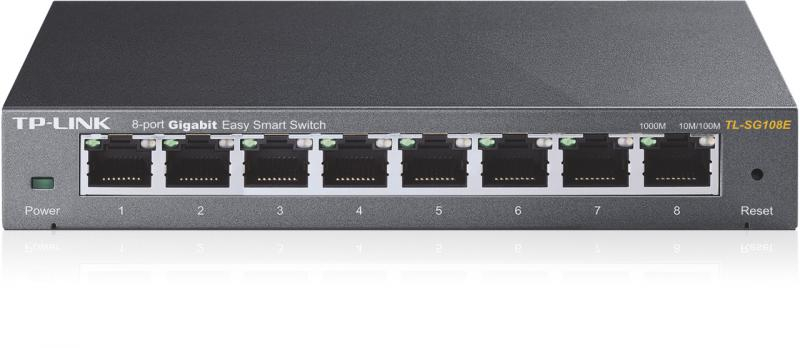

TPL SW 8P-GB EASY-SMART

Certification: FCC, CE, RoHS

Jumbo frames support: Yes

Packet buffer memory: 1.5 MB

Store-and-forward: Yes

Switching capacity: 16 Gbit/s

Forwarding rate: 11.9 Mpps

MAC address table: 4000 entries

Jumbo frames: 15000

LED indicators: Yes

Housing material: Metal

Networking standards: IEEE 802.1ab, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3x

VLAN support: Yes

Quality of Service (QoS) support: Yes

Web-based management: Yes

Switch type: Managed

Switch layer: L2

Cable types supported: Cat3, Cat4, Cat5, Cat5e

Auto MDI/MDI-X: Yes

Port mirroring: Yes

Link aggregation: Yes

Virtual LAN features: Port-based VLAN

Number of VLANs: 32

Auto-negotiation: Yes

10G support: No

Broadcast storm control: Yes

Storage relative humidity (H-H): 5 - 90%

Heat dissipation: 12.12 BTU/h

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 10 - 90%

Storage temperature (T-T): -40 - 70 °C

Cables included: AC

Package type: Box

Package height: 92 mm

Package weight: 630 g

Package depth: 191 mm

Package width: 130 mm

Plug and Play: Yes

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity: 8

Gigabit Ethernet (copper) ports quantity: 8

Input current: 0.6 A

Power supply included: Yes

Power consumption (max): 3.55 W

Power source: DC

Input voltage: 9 V

Security algorithms: SNMP, SNMPv2, SNMPv3

IGMP snooping: Yes

Loop protection: Yes

Depth: 101 mm

Height: 25 mm

Width: 158 mm

LAN port type: Gigabit

Garantia Produsului: 60 luni
