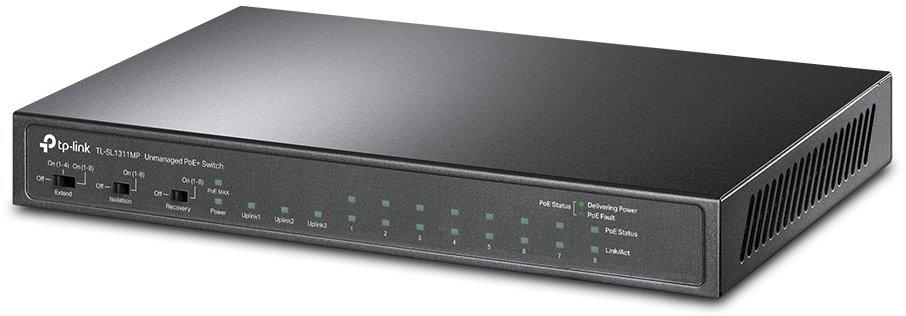

TPL SW 8P 10/100 3P GB POE TL-SL1311MP

"8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+ PORT: 8× 10/100 Mbps PoE+ Ports, 2× Gigabit Non-PoE Ports, 1× Gigabit SFP Slots SPEC: 802.3at/af, 124 W PoE Power, Desktop Steel Case FEATURE: Extend Mode for 250m PoE Transmitting, Isolation Mode, PoE Auto Recovery, Plug and Play"
Garantie: 24 luni


Specificatii tehnice

Forwarding rate: 5.6544 Mpps
Switching capacity: 7.6 Gbit/s
Jumbo frames support: Yes
Jumbo frames: 16000
MAC address table: 2000 entries
Store-and-forward: Yes
Rack mounting: No
Number of fans: 0 fan(s)
Networking standards: IEEE 802.3af, IEEE 802.3at
Harmonized System (HS) code: 85176990
Switch type: Unmanaged
10G support: No
Auto-negotiation: Yes
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
Power over Ethernet (PoE): Yes
Auto MDI/MDI-X: Yes
Cable types supported: Cat3, Cat4, Cat5, Cat5e
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%
Package type: Box
SFP+ module slots quantity: 1
Power connector: DC-in jack
SFP module slots quantity: 1
Basic switching RJ-45 Ethernet ports quantity: 10
Installed SFP modules quantity: 0
Installed SFP+ modules quantity: 0
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Number of power supply units: 1
Input current: 2.43 A
DC input voltage: 53.5 V
Power supply included: Yes
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 124 W
Height: 26 mm
Depth: 126 mm
Width: 209 mm
LAN port type: FastEthernet
