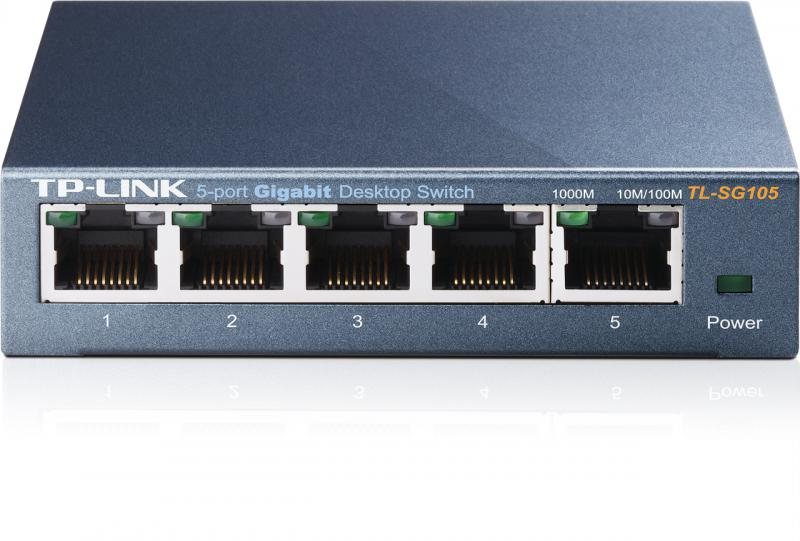

TPL SW 5P-GB UNMNGD DESK METAL

Certification: CE, FCC, RoHS

Jumbo frames support: Yes

Jumbo frames: 16000

MAC address table: 2000 entries

Store-and-forward: Yes

Switching capacity: 10 Gbit/s

Packet buffer memory: 1 MB

Forwarding rate: 7.4 Mpps

Supported data transfer rates: 10/100/1000Mbps

Maximum data transfer rate: 2 Gbit/s

LED indicators: Yes

Ethernet LAN: Yes

Ethernet LAN data rates: 10,100,1000 Mbit/s

Quality of Service (QoS) support: Yes

Flow control support: Yes

Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Switch type: Unmanaged

Auto MDI/MDI-X: Yes

Full duplex: Yes

Power over Ethernet (PoE): No

Auto-negotiation: Yes

10G support: No

Storage temperature (T-T): -40 - 70 °C

Heat dissipation: 7.83 BTU/h

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 10 - 90%

Storage relative humidity (H-H): 5 - 90%

Connectivity technology: Wired

Wi-FI: No

Power LED: Yes

Rack mount kit: Yes

Package type: Box

Package height: 92 mm

Package weight: 370 g

Package depth: 128 mm

Package width: 125 mm

Basic switching RJ-45 Ethernet ports quantity: 5

Installed SFP+ modules quantity:

Gigabit Ethernet (copper) ports quantity: 5

Installed SFP modules quantity:

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

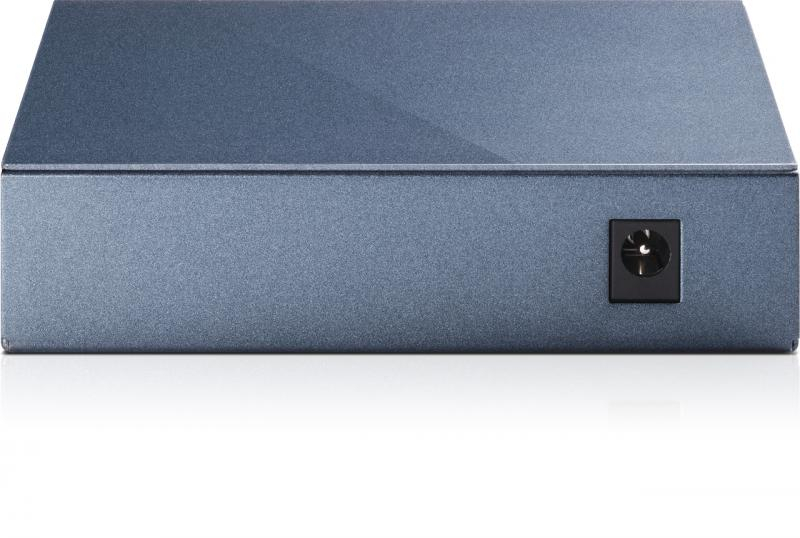

Power connector: DC-in jack

Power supply included: Yes

Input current: 0.6 A

Input voltage: 9 V

Power source: DC

Power consumption (max): 2.3 W

Switching protocols: CSMA/CD

IGMP snooping: Yes

Depth: 98 mm

Width: 100 mm

Height: 25 mm

LAN port type: Gigabit

Garantia Produsului: 60 luni
