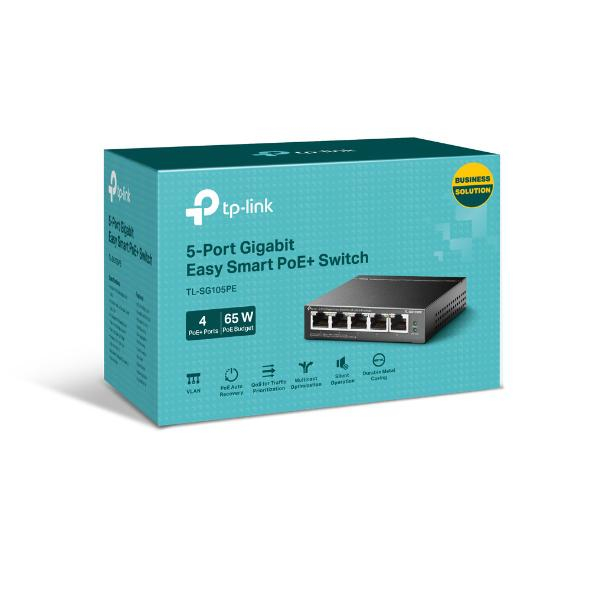

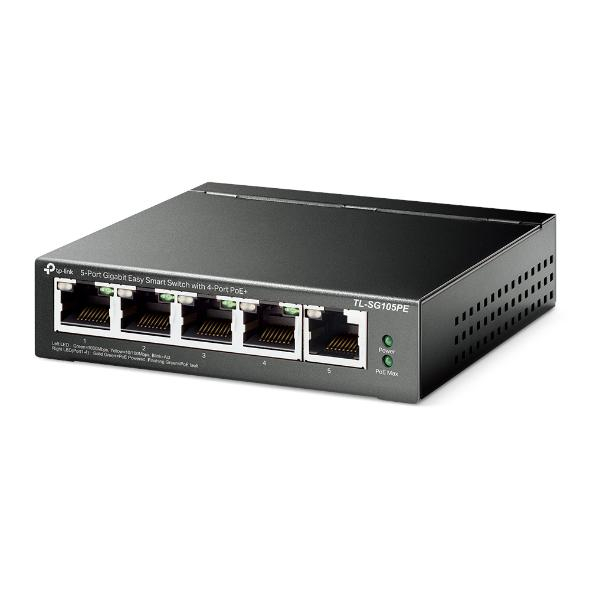

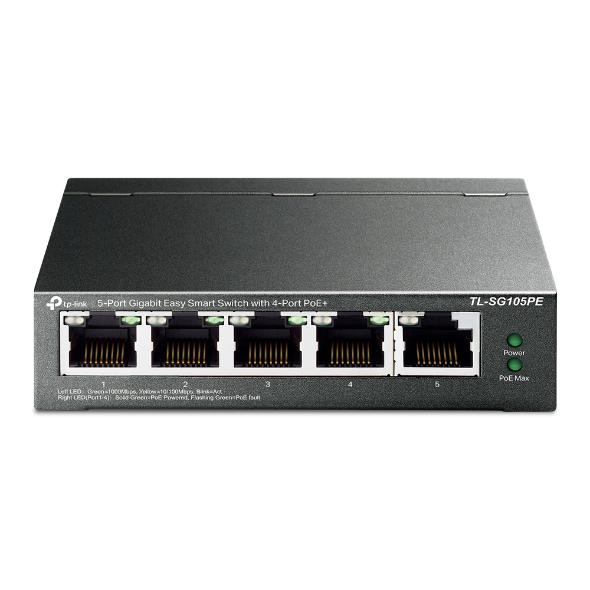

TPL SW 5P-GB EASY-SMART POE

Certification: FCC, CE, RoHS

Number of queues: 4

Store-and-forward: Yes

Switching capacity: 10 Gbit/s

Forwarding rate: 7.44 Mpps

Packet buffer memory: 1 MB

Jumbo frames support: Yes

Jumbo frames: 16000

MAC address table: 2000 entries

Rack mounting: No

LED indicators: Activity, Link, PoE, Power, Speed, Status

VLAN support: Yes

Quality of Service (QoS) support: Yes

Flow control support: Yes

Rate limiting: Yes

Harmonized System (HS) code: 85176990

Web-based management: Yes

Switch type: Managed

Switch layer: L2

Auto MDI/MDI-X: Yes

Port mirroring: Yes

Link aggregation: Yes

Power over Ethernet (PoE): Yes

Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6

Auto-negotiation: Yes

10G support: No

Broadcast storm control: Yes

Virtual LAN features: Port-based VLAN, Tagged VLAN

Copper ethernet cabling technology: 10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-T

Number of VLANs: 4000

Heat dissipation: 256.3 BTU/h

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 10 - 90%

Storage temperature (T-T): -40 - 70 °C

Storage relative humidity (H-H): 5 - 95%

Package depth: 196 mm

Package width: 131 mm

Package height: 121 mm

Package weight: 770 g

Fanless: Yes

Basic switching RJ-45 Ethernet ports quantity: 5

Installed SFP+ modules quantity:

Installed SFP modules quantity:

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper) ports quantity: 5

Power supply included: Yes

Power consumption (max): 75.16 W

Power source: DC

Input voltage: 53.5 V

Input current: 1.31 A

Power over Ethernet (PoE) power per port: 30 W

Power over Ethernet plus (PoE+) ports quantity: 4

Total Power over Ethernet (PoE) budget: 65 W

IGMP snooping: Yes

Loop protection: Yes

Depth: 98 mm

Height: 25 mm

Width: 99.8 mm

LAN-Port-Type: Gigabit

Garantia Produsului: 60 luni
