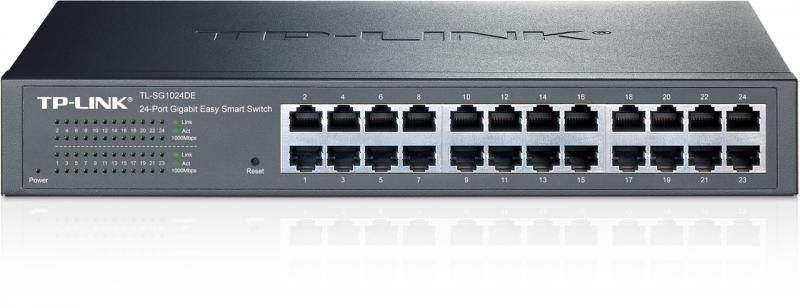

TPL SW 24P-GB EASY-SMART RM

Certification: FCC, CE, RoHS

Number of queues: 4

Switching capacity: 48 Gbit/s

Packet buffer memory: 0.512 MB

Forwarding rate: 35.7 Mpps

Jumbo frames support: Yes

MAC address table: 8000 entries

Jumbo frames: 9216

Rack mounting: Yes

Form factor: 1U

LED indicators: Yes

Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Flow control support: Yes

VLAN support: Yes

Quality of Service (QoS) support: Yes

Rate limiting: Yes

Harmonized System (HS) code: 85176990

Web-based management: Yes

Switch type: Managed

Switch layer: L2

Auto MDI/MDI-X: Yes

Port mirroring: Yes

Link aggregation: Yes

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T

Auto-negotiation: Yes

10G support: No

Broadcast storm control: Yes

Number of VLANs: 32

Cable types supported: Cat3, Cat5, Cat6

Virtual LAN features: Port-based VLAN, Tagged VLAN

Heat dissipation: 114.37 BTU/h

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 10 - 90%

Storage temperature (T-T): -40 - 70 °C

Storage relative humidity (H-H): 5 - 90%

Rack mount kit: Yes

Cables included: AC

Package type: Box

Package width: 250 mm

Package depth: 400 mm

Package height: 80 mm

Package weight: 2.02 kg

Compatible operating systems: Windows 98SE, NT, 2000, XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux

Installed SFP+ modules quantity:

Installed SFP modules quantity:

Basic switching RJ-45 Ethernet ports quantity: 24

Gigabit Ethernet (copper) ports quantity: 24

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Power supply included: Yes

Power source: AC

AC input voltage: 100 - 240 V

AC input frequency: 50 - 60 Hz

Power consumption (max): 14.86 W

Loop protection: Yes

IGMP snooping: Yes

Width: 294 mm

Depth: 180 mm

LAN port type: Gigabit

Garantia Produsului: 60 luni
