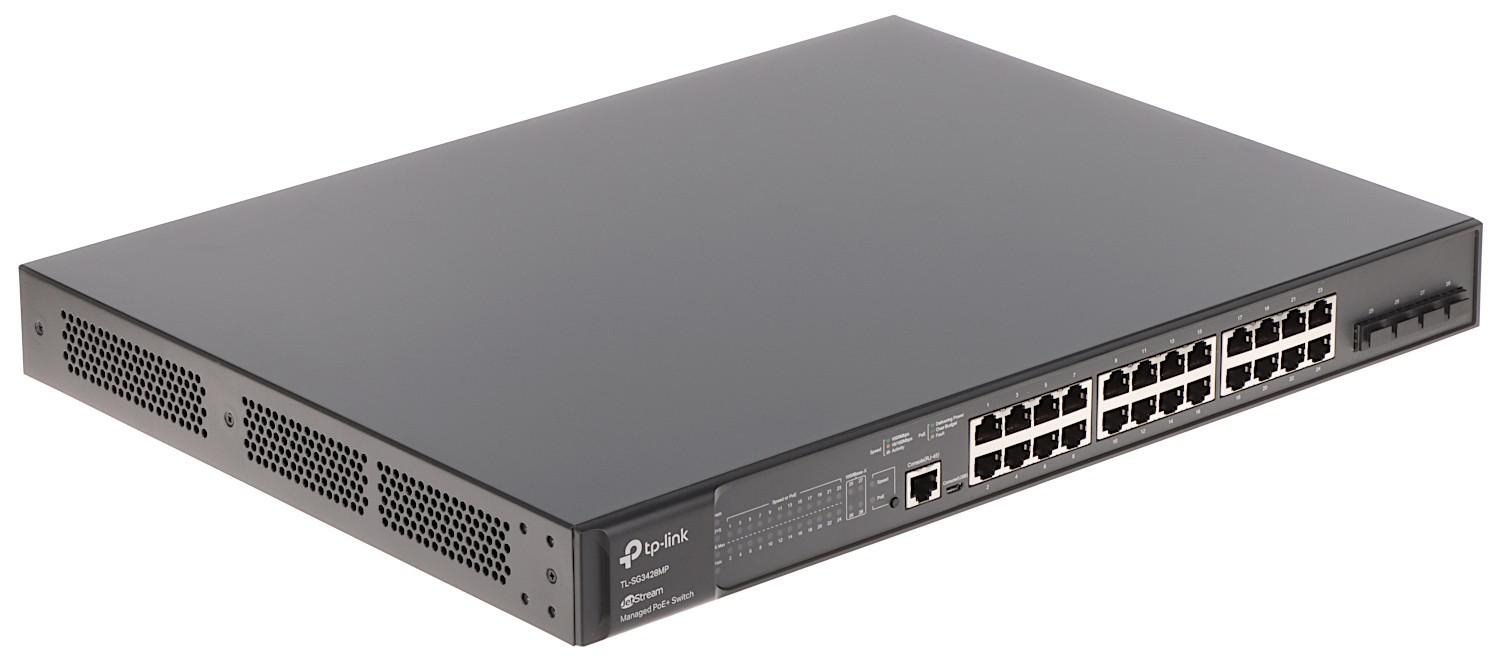

TPL SW 24P-GB 4 SFP L2 MANAGED POE

"JetStream™ 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+ PORT: 24× Gigabit PoE+ Ports, 4× Gigabit SFP Slots, RJ45/Micro-USB Console Port SPEC: 802.3at/af, 384 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller,Static Routing, OAM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6"
Garantie: 60 luni


Specificatii tehnice

Console port: RJ-45/Micro-USB
Forwarding rate: 41.66 Mpps
LED indicators: Yes
Certification: CE, FCC, RoHS
Switching capacity: 56 Gbit/s
Packet buffer memory: 12 MB
Store-and-forward: Yes
Jumbo frames: 9000
MAC address table: 16000 entries
Jumbo frames support: Yes
Number of fans: 2 fan(s)
Rack mounting: Yes
Form factor: 1U
Product colour: Black
Ethernet LAN data rates: 10,100,1000 Mbit/s
Quality of Service (QoS) support: Yes
VLAN support: Yes
Flow control support: Yes
Rate limiting: Yes
Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Harmonized System (HS) code: 85176990
Cloud-managed: Yes
Switch layer: L2
Web-based management: Yes
System event log: Yes
Switch type: Managed
Configuring Location Settings (CLI): Yes
ARP inspection: Yes
Multicast support: Yes
10G support: No
Broadcast storm control: Yes
Spanning tree protocol: Yes
Active link detection: Yes
IP routing: Yes
Number of VLANs: 4000
Head-of-line (HOL) blocking: Yes
Port mirroring: Yes
Power over Ethernet (PoE): Yes
Link aggregation: Yes
Security algorithms: SSH, SSL/TLS
Virtual LAN features: MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
Copper ethernet cabling technology: 10BASE-T, 1000BASE-T
Heat dissipation: 1637.14 BTU/h
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%
Quick start guide: Yes
User guide: Yes
Package height: 100 mm
Package width: 440 mm
Package depth: 528 mm
Package weight: 6.08 kg
SFP+ module slots quantity: 4
Installed SFP modules quantity: 0
Installed SFP+ modules quantity: 0
Power connector: AC-in jack
SFP module slots quantity: 4
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 24
Gigabit Ethernet (copper) ports quantity: 24
Power supply included: Yes
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power source: AC
Power consumption (max): 463.8 W
Power over Ethernet plus (PoE+) ports quantity: 24
Total Power over Ethernet (PoE) budget: 384 W
Power over Ethernet (PoE) power per port: 30 W
GARP VLAN Registration Protocol (GVRP): Yes
Management protocols: SNMPv1/v2c/v3, LLDP/LLDP-MED
BPDU filtering/protection: Yes
Static port security: Yes
DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
IP-MAC-Port binding: Yes
Authentication: MAC-based authentication, Port-based authentication
SSH/SSL support: Yes
Loop protection: Yes
IGMP snooping: Yes
MAC address filtering: Yes
Access Control List (ACL): Yes
Depth: 330 mm
Height: 44 mm
Width: 440 mm
LAN port type: Gigabit
