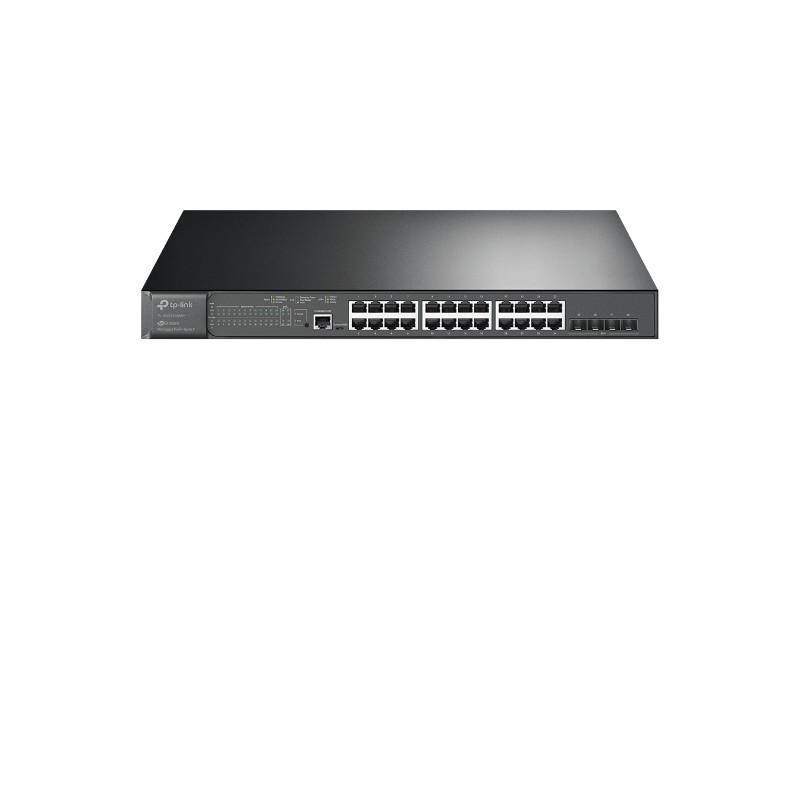

TPL SW 24P-GB 4 10GE SFP L2 MANAGED POE

"JetStream™ 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+ PORT: 24× Gigabit PoE+ Ports, 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 802.3at/af, 384 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller,Static Routing, OAM, DDM, sFlow, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6"
Garantie: 60 luni


Specificatii tehnice

Layer: Layer-2
Stackable: No
Forwarding rate: 95.23 Mpps
Console port: RJ-45/micro-USB
LED indicators: Yes
Packet buffer memory: 12 MB
Number of static routes: 48
Jumbo frames: 9000
MAC address table: 16000 entries
Switching capacity: 128 Gbit/s
Jumbo frames support: Yes
Number of fans: 2 fan(s)
Rack mounting: Yes
Form factor: 1U
Ethernet LAN data rates: 10,100,1000 Mbit/s
VLAN support: Yes
Quality of Service (QoS) support: Yes
Flow control support: Yes
Rate limiting: Yes
Networking standards: IEEE 802.11d, IEEE 802.1s, IEEE 802.1w
Cloud-managed: Yes
MIB support: Yes
Switch layer: L2+
Web-based management: Yes
System event log: Yes
Switch type: Managed
Multicast support: Yes
Number of VLANs: 4000
Broadcast storm control: Yes
Spanning tree protocol: Yes
Active link detection: Yes
Head-of-line (HOL) blocking: Yes
Virtual LAN features: MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
10G support: Yes
Port mirroring: Yes
Policy-based routing: Yes
Power over Ethernet (PoE): Yes
Link aggregation: Yes
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 1658.78 BTU/h
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Quick start guide: Yes
Cables included: LAN (RJ-45)
SFP+ module slots quantity: 4
Power connector: AC-in jack
SFP module slots quantity: 4
Installed SFP+ modules quantity: 0
Basic switching RJ-45 Ethernet ports quantity: 24
Gigabit Ethernet (copper) ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity: 0
Power supply included: Yes
Power consumption (max): 486.2 W
AC input voltage: 100 - 240 V
Power source: AC
Total Power over Ethernet (PoE) budget: 384 W
Power over Ethernet plus (PoE+) ports quantity: 24
Management protocols: SNMPv1/v2c/v3, SNTP
DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
IP-MAC-Port binding: Yes
BPDU filtering/protection: Yes
SSH/SSL support: Yes
Loop protection: Yes
IGMP snooping: Yes
Access Control List (ACL): Yes
Depth: 330 mm
LAN-Ports: 24
LAN port type: Gigabit
Rackable: Yes
Redundant-PSU: Yes
