TPL SW 24P-FE 4P-GB 2CMB SMART RM POE

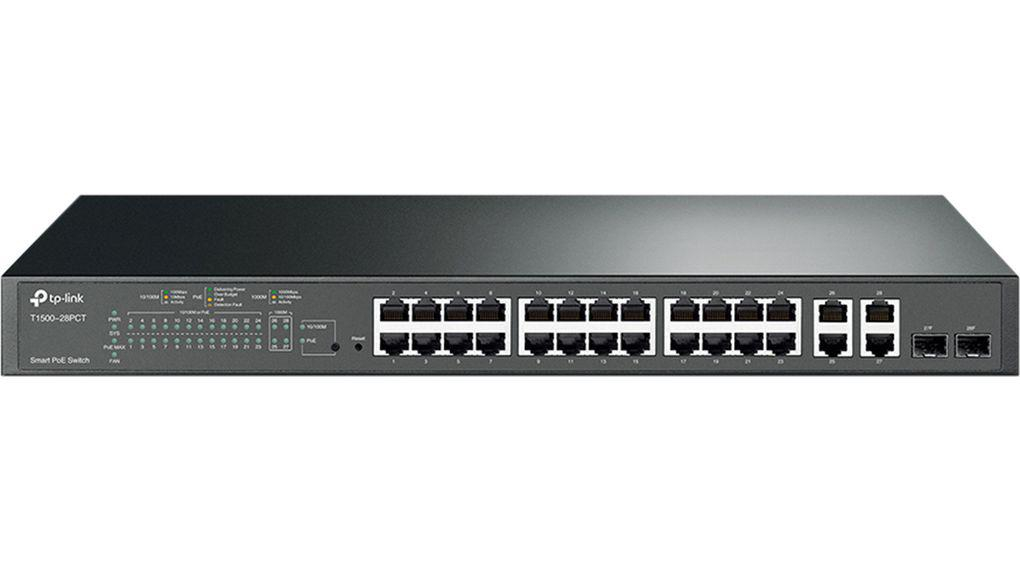

"JetStream™ 24-Port 10/100 Mbps + 4-Port Gigabit Smart Switch with 24-Port PoE+ PORT: 24× 10/100 Mbps PoE+ Ports, 4× Gigabit Non-PoE Ports, 2× Combo Gigabit SFP Slots SPEC: 802.3at/af, 250 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image, IPv6"
Garantie: 60 luni


Specificatii tehnice

Certification: CE, FCC, RoHS
Switching capacity: 128 Gbit/s
Number of queues: 4
Throughput: 9.5 Mpps
Jumbo frames support: Yes
MAC address table: 8000 entries
Number of fans: 2 fan(s)
Rack mounting: Yes
Form factor: 1U
Product colour: Black
Rate limiting: Yes
Harmonized System (HS) code: 85176990
ARP inspection: Yes
Switch layer: L2
Configuring Location Settings (CLI): Yes
Firmware upgradeable: Yes
Quality of Service (QoS) support: Yes
Web-based management: Yes
System event log: Yes
Switch type: Managed
Multicast support: Yes
10G support: No
Broadcast storm control: Yes
Spanning tree protocol: Yes
Auto MDI/MDI-X: Yes
Flow control support: Yes
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring: Yes
VLAN support: Yes
Link aggregation: Yes
Cable types supported: Cat5, Cat5e
Number of VLANs: 512
Operating temperature (T-T): 0 - 40 °C
Heat dissipation: 995.09 BTU/h
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%
Rack mount kit: Yes
Quick start guide: Yes
Cables included: AC
Package height: 80 mm
Package width: 250 mm
Package depth: 528 mm
Package weight: 3.02 kg
Compatible operating systems: Microsoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
Installed SFP+ modules quantity: 0
Basic switching RJ-45 Ethernet ports quantity: 24
Combo SFP ports quantity: 2
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Gigabit Ethernet (copper) ports quantity: 4
Fast Ethernet (copper) ports quantity: 24
Power consumption (max): 291.6 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power source: AC
Power over Ethernet plus (PoE+) ports quantity: 24
Total Power over Ethernet (PoE) budget: 250 W
Power over Ethernet (PoE): Yes
Management protocols: SNMP v1/v2c/v3, RMON, SNTP, TFTP
Security algorithms: SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS
SSH/SSL support: Yes
Access Control List (ACL): Yes
IGMP snooping: Yes
Width: 440 mm
Height: 44 mm
Depth: 180 mm
LAN-Port-Type: FastEthernet
