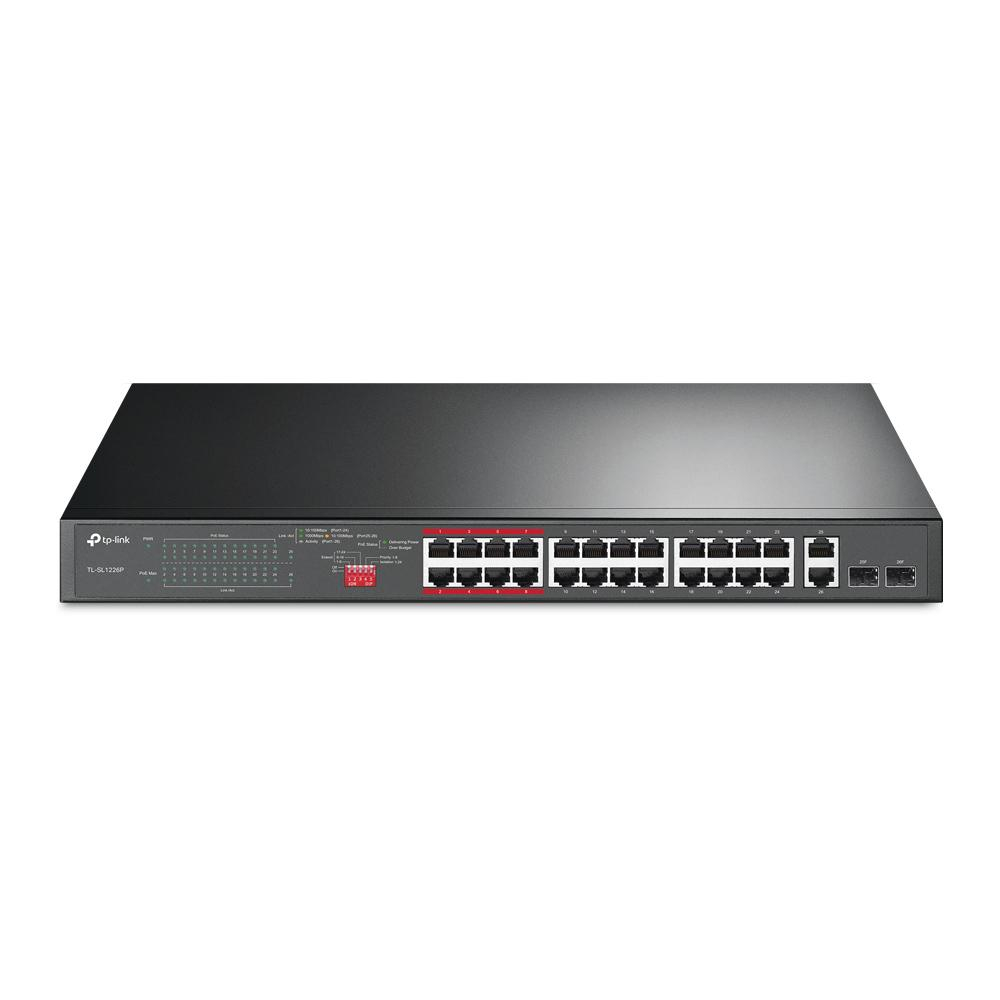

TPL SW 24P-FE 2P-GB UNMNGD RM POE

"24-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 24-Port PoE+ PORT: 24× 10/100 Mbps PoE+ Ports, 2× Gigabit Non-PoE Ports, 2× Combo Gigabit SFP Slots SPEC: 802.3at/af, 250 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Extend Mode for 250m PoE Transmitting, Priority Mode for Port1-8, Isolation Mode, Plug and Play"
Garantie: 24 luni


Specificatii tehnice

Forwarding rate: 6.54 Mpps
Certification: CE, FCC, RoHS
Switching capacity: 8.8 Gbit/s
Packet buffer memory: 4.1 MB
Store-and-forward: Yes
Jumbo frames: 10000
Jumbo frames support: Yes
MAC address table: 8000 entries
Number of fans: 2 fan(s)
Rack mounting: Yes
Form factor: 1U
Product colour: Grey
LED indicators: Yes
Harmonized System (HS) code: 85176990
Switch type: Unmanaged
Traffic classification: Yes
Auto MDI/MDI-X: Yes
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Auto-negotiation: Yes
Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
10G support: No
Operating relative humidity (H-H): 10 - 90%
Heat dissipation: 1002.54 BTU/h
Storage relative humidity (H-H): 5 - 90%
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Rack mount kit: Yes
Quick start guide: Yes
Package weight: 3.02 kg
Package height: 80 mm
Package width: 250 mm
Package depth: 528 mm
Basic switching RJ-45 Ethernet ports quantity: 26
Gigabit Ethernet (copper) ports quantity: 2
Fast Ethernet (copper) ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 2
Power supply included: Yes
Power consumption (max): 281 W
AC input voltage: 100 - 240 V
Power source: AC
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 250 W
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet plus (PoE+) ports quantity: 24
Width: 440 mm
Height: 44 mm
Depth: 180 mm
LAN port type: FastEthernet
