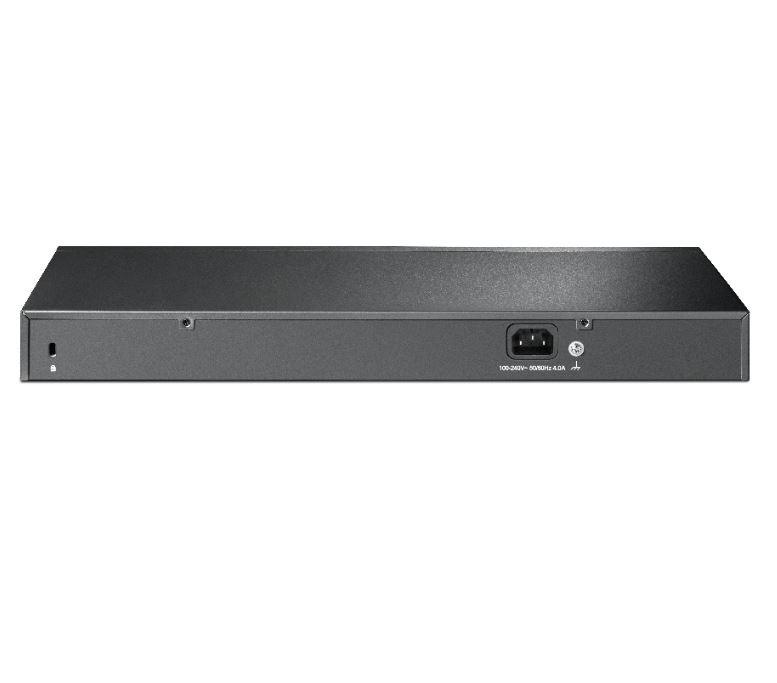

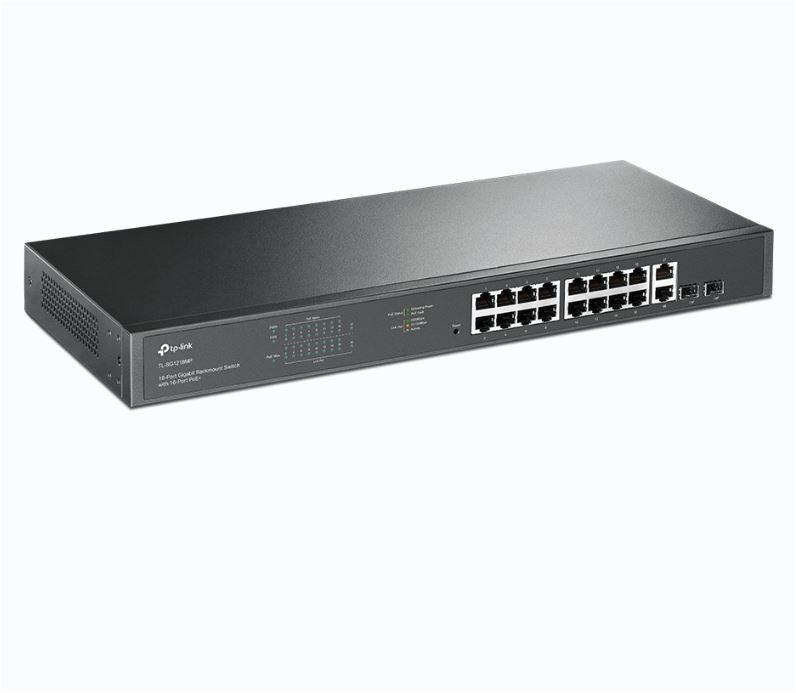

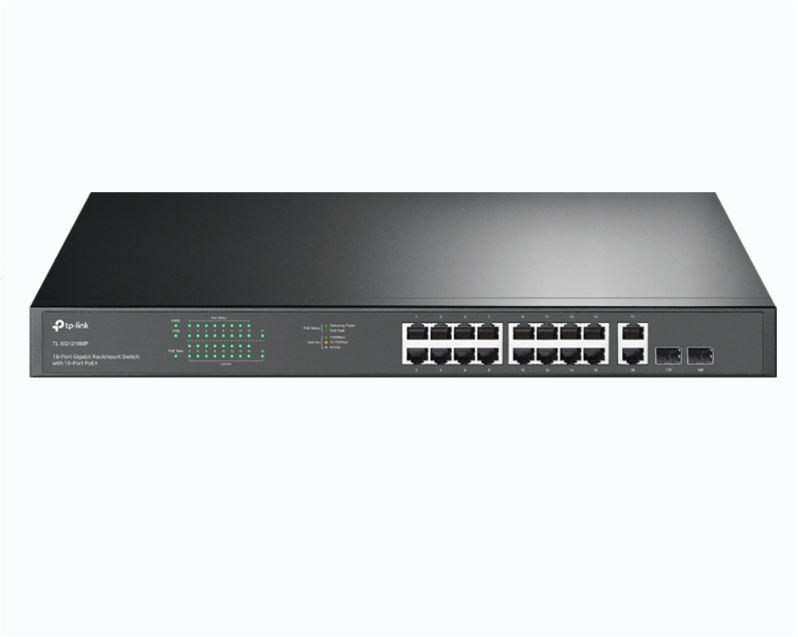

TPL SW 18P-GB 2P-SFP UNMNGD POE SWITCH

Forwarding rate: 26.78 Mpps

LED indicators: Yes

Certification: CE, FCC, RoHS

Packet buffer memory: 4.1 MB

Jumbo frames: 10000

Switching capacity: 36 Gbit/s

MAC address table: 8000 entries

Jumbo frames support: Yes

Number of fans: 2 fan(s)

Rack mounting: Yes

Form factor: 1U

Housing material: Metal

Ethernet LAN data rates: 10,100,1000 Mbit/s

Quality of Service (QoS) support: Yes

Flow control support: Yes

Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Harmonized System (HS) code: 85176990

Traffic classification: Yes

Switch type: Unmanaged

Full duplex: Yes

Power over Ethernet (PoE): Yes

Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6

10G support: No

Half duplex: Yes

Auto-negotiation: Yes

Auto MDI/MDI-X: Yes

MAC address auto-learning supported: Yes

MAC address auto-aging supported: Yes

Operating relative humidity (H-H): 10 - 90%

Heat dissipation: 977.44 BTU/h

Operating temperature (T-T): 0 - 50 °C

Storage temperature (T-T): -40 - 70 °C

Storage relative humidity (H-H): 5 - 90%

Quick start guide: Yes

Cables included: AC

Package height: 80 mm

Package width: 250 mm

Package depth: 528 mm

Package weight: 3.05 kg

Basic switching RJ-45 Ethernet ports quantity: 18

Gigabit Ethernet (copper) ports quantity: 18

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Combo SFP ports quantity: 2

Installed SFP modules quantity:

Installed SFP+ modules quantity:

Power supply included: Yes

AC input voltage: 100 - 240 V

Power source: AC

AC input frequency: 50 - 60 Hz

Power consumption (max): 286.64 W

Total Power over Ethernet (PoE) budget: 250 W

Power over Ethernet (PoE) power per port: 30 W

Power over Ethernet plus (PoE+) ports quantity: 16

Depth: 180 mm

LAN-Port-Type: Gigabit
