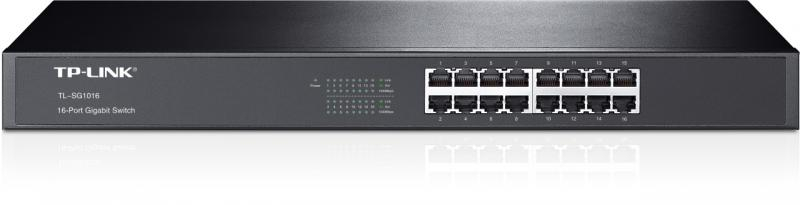

TPL SW 16P-GB UNMNGD RM

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

Jumbo frames: 10000

Jumbo frames support: Yes

MAC address table: 8000 entries

Switching capacity: 32 Gbit/s

Forwarding rate: 23.8 Mpps

Store-and-forward: Yes

Rack mounting: Yes

Form factor: 1U

Housing material: Metal

Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Quality of Service (QoS) support: Yes

Flow control support: Yes

Harmonized System (HS) code: 85176990

Switch type: Unmanaged

Cable types supported: Cat3, Cat4, Cat5, Cat5e

10G support: No

Half duplex: Yes

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T

Auto-negotiation: Yes

Full duplex: Yes

Power over Ethernet (PoE): No

Auto MDI/MDI-X: Yes

Heat dissipation: 35.6 BTU/h

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 10 - 90%

Storage temperature (T-T): -40 - 70 °C

Storage relative humidity (H-H): 5 - 90%

Rack mount kit: Yes

Cables included: AC

Package type: Box

Package weight: 2.04 kg

Package width: 250 mm

Package depth: 528 mm

Maximum cable length: 100 m

Compatible operating systems: Microsoft Windows 2000/XP/2003/Vista/2008/7/2012/8/10nMacOSnNetWarenUNIXnLinux

Fanless: Yes

Gigabit Ethernet (copper) ports quantity: 16

Power connector: AC-in jack

Installed SFP+ modules quantity:

Basic switching RJ-45 Ethernet ports quantity: 16

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Installed SFP modules quantity:

Power supply included: Yes

Power source: AC

Power consumption (max): 10.44 W

AC input voltage: 100 - 240 V

Sustainability compliance: Yes

Depth: 180 mm

LAN port type: Gigabit

Garantia Produsului: 60 luni
