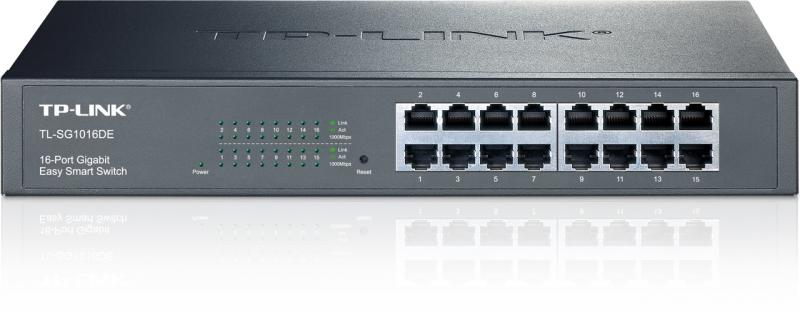

TPL SW 16P-GB EASY-SMART RM

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

Packet buffer memory: 0.512 MB

Jumbo frames: 9000

Switching capacity: 32 Gbit/s

Forwarding rate: 23.8 Mpps

Number of queues: 4

MAC address table: 8000 entries

Store-and-forward: Yes

Jumbo frames support: Yes

Stackable: No

Rack mounting: Yes

Form factor: 1U

LED indicators: Yes

Housing material: Metal

Networking standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Flow control support: Yes

Rate limiting: Yes

VLAN support: Yes

Quality of Service (QoS) support: Yes

Switch type: Managed

Switch layer: L2

Number of VLANs: 32

10G support: No

Broadcast storm control: Yes

Copper ethernet cabling technology: 100BASE-TX, 100BASE-T, 1000BASE-T

Cable types supported: Cat3, Cat5, Cat6

Virtual LAN features: Port-based VLAN, Tagged VLAN

Auto MDI/MDI-X: Yes

Power over Ethernet (PoE): No

Auto-negotiation: Yes

Port mirroring: Yes

Link aggregation: Yes

Storage relative humidity (H-H): 5 - 90%

Heat dissipation: 34.52 BTU/h

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 10 - 90%

Storage temperature (T-T): -40 - 70 °C

Cables included: AC

Rack mount kit: Yes

Resource CD: Yes

Package height: 80 mm

Package type: Box

Package width: 250 mm

Package depth: 400 mm

Package weight: 1.91 kg

Maximum cable length: 100 m

Compatible operating systems: Windows

Power connector: AC-in jack

Basic switching RJ-45 Ethernet ports quantity: 16

Installed SFP+ modules quantity:

Gigabit Ethernet (copper) ports quantity: 16

Installed SFP modules quantity:

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Power supply included: Yes

Power source: AC

AC input voltage: 100 - 240 V

Power consumption (max): 19.15 W

IGMP snooping: Yes

Sustainability compliance: Yes

Depth: 180 mm

Width: 28.4 mm

LAN port type: Gigabit

Layer: Unmanaged

Rackable: No

Redundant-PSU: Yes

LAN-Ports: 16

Garantia Produsului: 60 luni
