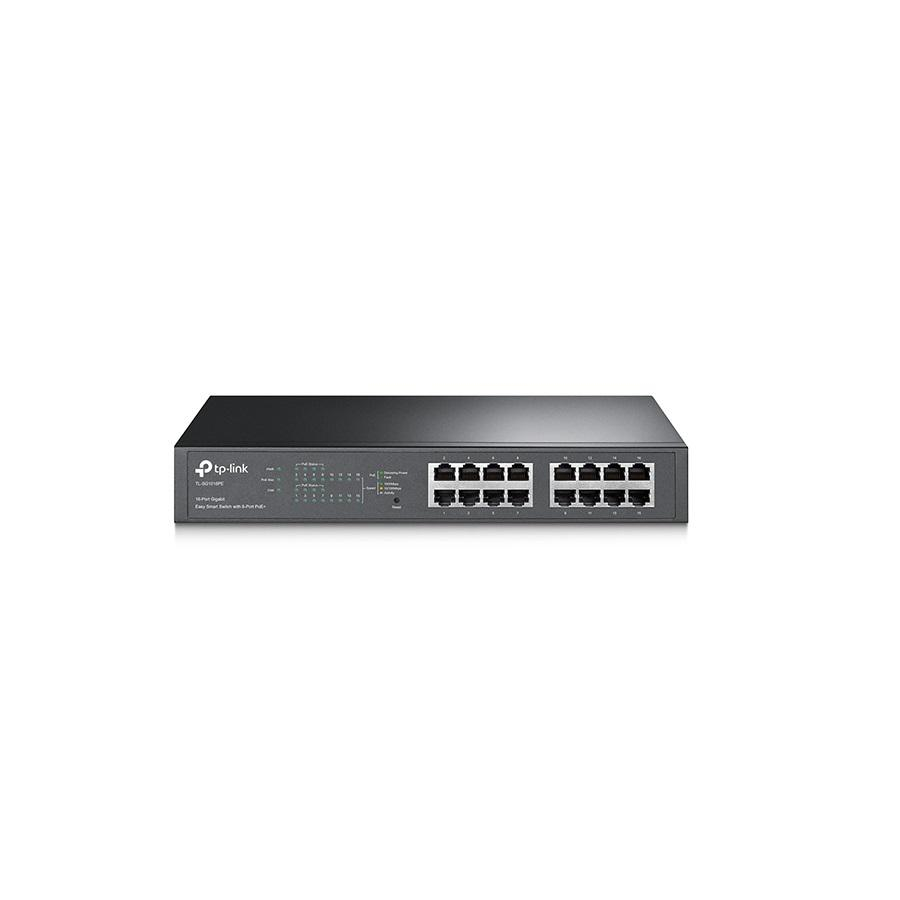

TPL SW 16P-GB EASY-SMART POE

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

Switching capacity: 32 Gbit/s

Forwarding rate: 23.8 Mpps

Number of queues: 4

Packet buffer memory: 4.1 MB

Store-and-forward: Yes

Jumbo frames: 10000

Jumbo frames support: Yes

MAC address table: 8000 entries

Form factor: 1U

Stackable: No

Number of fans: 1 fan(s)

Rack mounting: Yes

LED indicators: Yes

Housing material: Metal

Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

VLAN support: Yes

Quality of Service (QoS) support: Yes

Flow control support: Yes

Switch layer: L2

Web-based management: Yes

Switch type: Managed

Virtual LAN features: Tagged VLAN, Port-based VLAN

Number of VLANs: 4000

Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6

Port mirroring: Yes

Power over Ethernet (PoE): Yes

Link aggregation: Yes

Auto MDI/MDI-X: Yes

10G support: No

Broadcast storm control: Yes

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T

Auto-negotiation: Yes

Storage relative humidity (H-H): 5 - 90%

Storage temperature (T-T): -40 - 70 °C

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 10 - 90%

Cables included: AC

Rack mount kit: Yes

Resource CD: Yes

Package height: 80 mm

Package weight: 2.28 kg

Package width: 250 mm

Package depth: 400 mm

Package type: Box

Maximum cable length: 100 m

Compatible operating systems: Windows

Gigabit Ethernet (copper) ports quantity: 16

Power connector: AC-in jack

Installed SFP modules quantity:

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Installed SFP+ modules quantity:

Basic switching RJ-45 Ethernet ports quantity: 16

Power supply included: Yes

Power source: AC/PoE

Power consumption (max): 124.4 W

AC input voltage: 100 - 240 V

Power over Ethernet plus (PoE+) ports quantity: 8

Power over Ethernet (PoE) power per port: 30 W

Total Power over Ethernet (PoE) budget: 110 W

IGMP snooping: Yes

Sustainability compliance: Yes

Depth: 180 mm

Width: 294 mm

LAN-Port-Type: Gigabit
