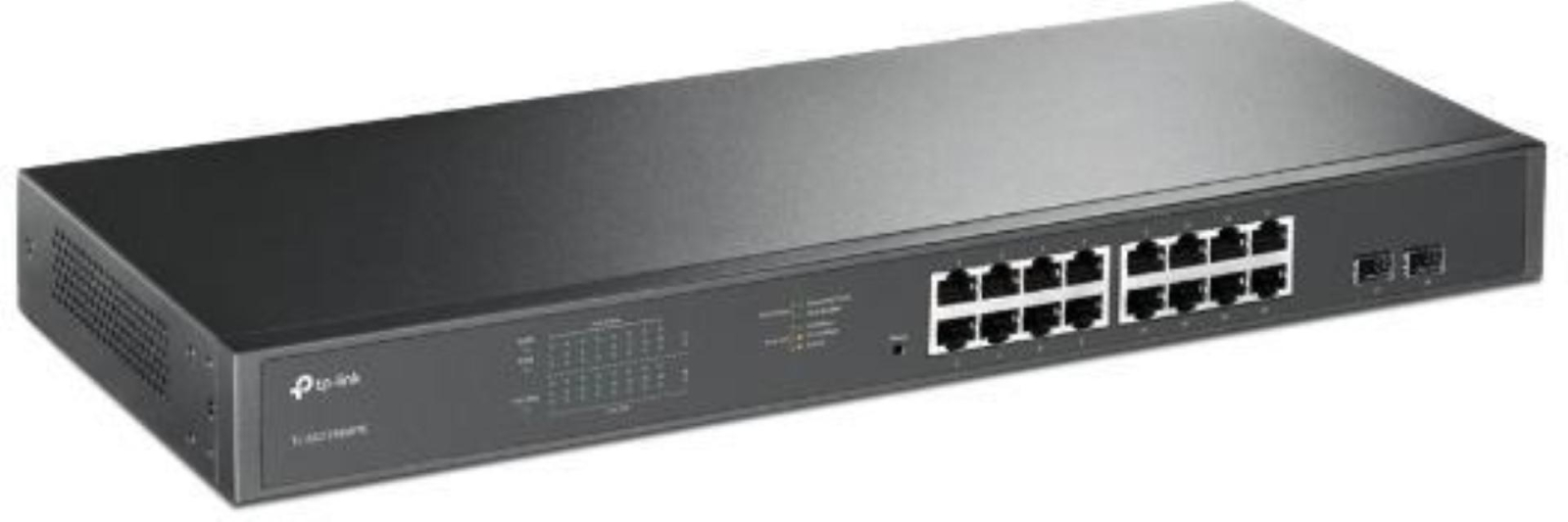

TPL SW 16P-GB 2P-SFP MNGD POE SWITCH

Certification: CE, FCC, RoHS

Switching capacity: 36 Gbit/s

Jumbo frames: 9000

Forwarding rate: 23.8 Mpps

Store-and-forward: Yes

Number of queues: 4

Packet buffer memory: 4.1 MB

Jumbo frames support: Yes

MAC address table: 8000 entries

Form factor: 1U

Number of fans: 2 fan(s)

Rack mounting: Yes

VLAN support: Yes

Quality of Service (QoS) support: Yes

Flow control support: Yes

Rate limiting: Yes

Harmonized System (HS) code: 85176990

Switch layer: L2

Web-based management: Yes

Switch type: Managed

Link aggregation: Yes

Power over Ethernet (PoE): Yes

Port mirroring: Yes

Auto MDI/MDI-X: Yes

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T

Auto-negotiation: Yes

10G support: No

Broadcast storm control: Yes

Virtual LAN features: Port-based VLAN

Number of VLANs: 32

Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6

Operating temperature (T-T): 0 - 50 °C

Heat dissipation: 741.15 BTU/h

Storage temperature (T-T): -40 - 70 °C

Operating relative humidity (H-H): 10 - 90%

Storage relative humidity (H-H): 5 - 90%

Fiber ethernet cabling technology: 1000BASE-X

Cables included: AC

Rack mount kit: Yes

Package depth: 528 mm

Package weight: 2.91 kg

Package width: 250 mm

Package height: 80 mm

SFP+ module slots quantity: 2

Gigabit Ethernet (copper) ports quantity: 16

Basic switching RJ-45 Ethernet ports quantity: 16

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

SFP module slots quantity: 2

Power supply included: Yes

AC input voltage: 100 - 240 V

Power source: AC

AC input frequency: 50 - 60 Hz

Power consumption (max): 217.22 W

Power over Ethernet plus (PoE+) ports quantity: 16

Total Power over Ethernet (PoE) budget: 192 W

IGMP snooping: Yes

Loop protection: Yes

Security algorithms: SNMP, SNMPv2, SNMPv3

Depth: 180 mm

LAN-Port-Type: Gigabit

Garantia Produsului: 60 luni
