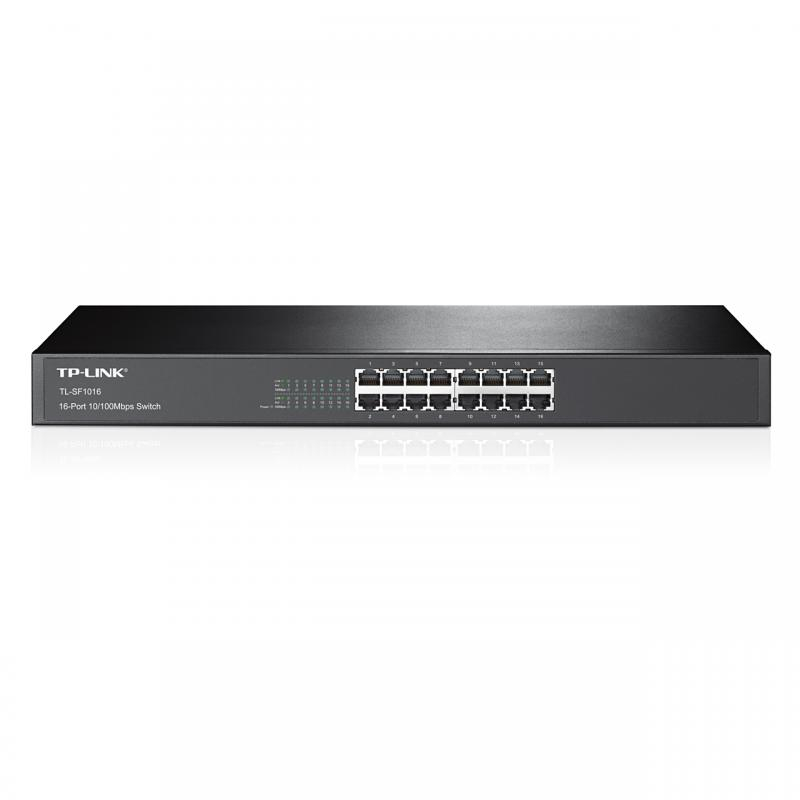

TPL SW 16P-FE UNMNGD RM

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

Switching capacity: 3.2 Gbit/s

Forwarding rate: 2.38 Mpps

MAC address table: 8000 entries

Packet buffer memory: 2 MB

Store-and-forward: Yes

Stackable: No

Rack mounting: Yes

Form factor: 1U

Housing material: Metal

Ethernet LAN data rates: 10,100 Mbit/s

Flow control support: Yes

Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Switch type: Unmanaged

Cable types supported: Cat3, Cat4, Cat5, Cat5e

10G support: No

Auto-negotiation: Yes

Auto MDI/MDI-X: Yes

Power over Ethernet (PoE): No

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX

Heat dissipation: 7.03 BTU/h

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 10 - 90%

Storage temperature (T-T): -40 - 70 °C

Storage relative humidity (H-H): 5 - 90%

Rack mount kit: Yes

Cables included: AC

Package weight: 2.28 kg

Package type: Box

Package width: 250 mm

Package depth: 528 mm

Fanless: Yes

Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)

Installed SFP modules quantity:

Fast Ethernet (copper) ports quantity: 16

Installed SFP+ modules quantity:

Basic switching RJ-45 Ethernet ports quantity: 16

Power connector: DC-in jack

Power supply included: Yes

Power consumption (max): 2.06 W

Power source: AC

AC input voltage: 100 - 240 V

Sustainability compliance: Yes

Depth: 180 mm

LAN port type: FastEthernet

Garantia Produsului: 36 luni
