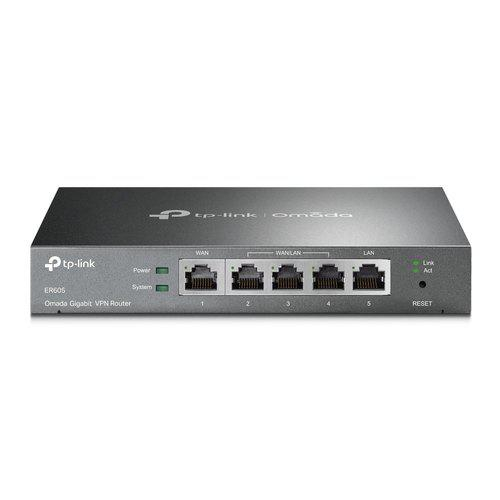

TPL OMADA GIGABIT VPN ROUTER

"Omada Gigabit VPN Router PORT: 1× Gigabit RJ45 WAN Port, 2× Gigabit RJ45 WAN/LAN Ports, 2× Gigabit RJ45 LAN Ports, 1× USB 2.0 Port; FEATURE: Integration with Omada SDN Controller, Support 20 IPsec VPN Tunnels, 16 PPTP/L2TP VPN Tunnels, 16 OpenVPN Tunnels, 150000 Concurrent Sessions, Load Balance, Link Backup, Policy-based Firewall, Static Routing, Policy Routing, Multi-net DHCP, ACL, IPv6, IPTV, Guest Portal, VLAN"
Garantie: 60 luni


Specificatii tehnice

Firewall: Yes
Compliance certificates: RoHS
Product colour: Black
LED indicators: Activity, LAN, System, USB, WAN
Reset button: Yes
Rack mounting: Yes
Rack capacity: 1U
Internal memory type: DRAM
Flash memory: 128 MB
Linux operating systems supported: Yes
Certification: CE, FCC, RoHS
Mac operating systems supported: MacOS
Web-based management: Yes
Universal Plug and Play (UPnP): Yes
Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Concurrent connections: 150000
VLAN support: Yes
Traffic control: Yes
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Policy-based routing: Yes
VPN tunnels quantity: 20
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Quick installation guide: Yes
Cables included: AC
Manual: Yes
Quick start guide: Yes
Package width: 190 mm
Package height: 60 mm
Package depth: 254 mm
Package weight: 650 g
Ethernet LAN (RJ-45) ports: 5
USB ports quantity: 1
AC input frequency: 50 - 60 Hz
Power consumption (typical): 7.94 W
AC input voltage: 120 - 240 V
Power source type: AC
Supported network protocols: TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP
DHCP client: Yes
DHCP server: Yes
Routing protocols: RIP-1, RIP-2
Management protocols: Telnet
Supported protocols: IPsec/PPTP/L2TP
DMZ support: Yes
DoS attack prevention: Yes
ARP attack prevention: Yes
Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1
Authentication method: SHA-1, MD5
URL filtering: Yes
Network address translation (NAT): Yes
System event log: Yes
Ethernet WAN: Yes
DSL WAN: No
SIM card slot: No
3G/4G USB modem compatibility: No
Height: 25 mm
Width: 158 mm
Depth: 101 mm
