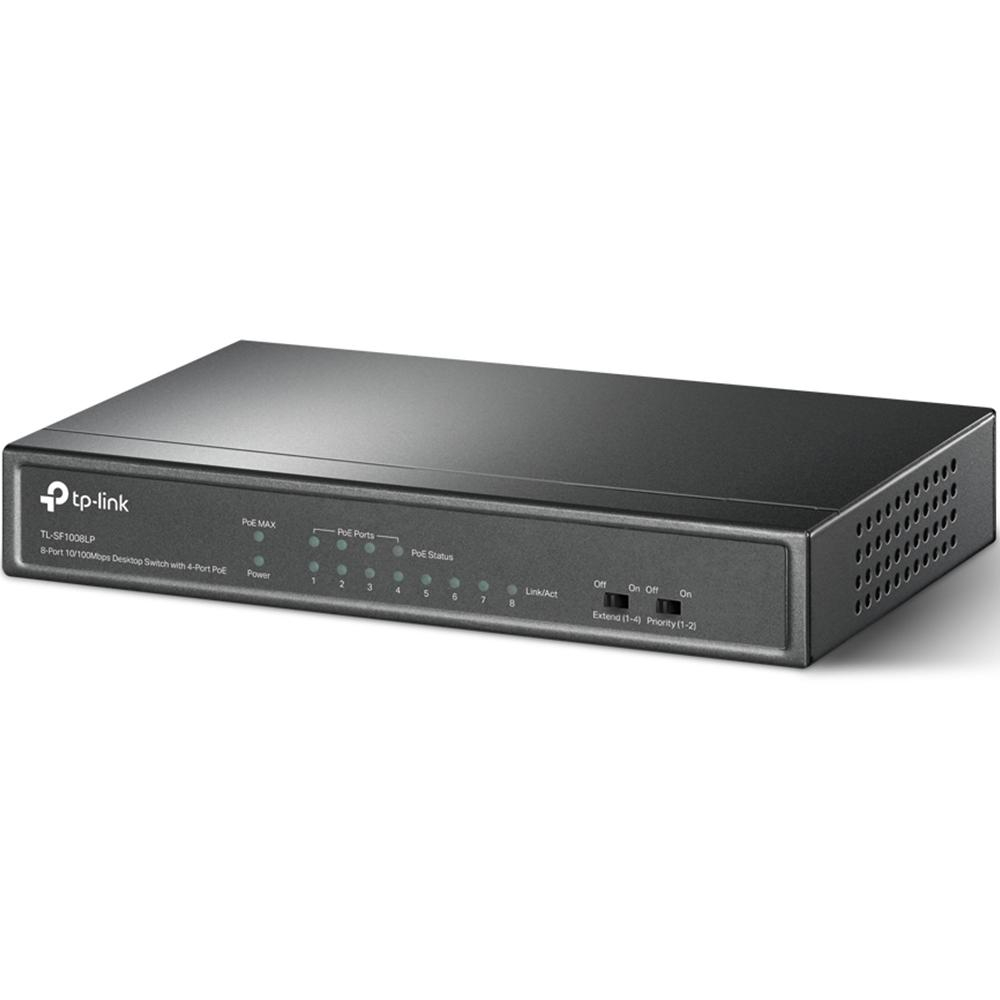

TPL 8P 10/100 4-POE DESKTOP SWITCH

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

Forwarding rate: 1.1904 Mpps

Jumbo frames support: Yes

MAC address table: 2000 entries

Store-and-forward: Yes

Switching capacity: 1.6 Gbit/s

Jumbo frames: 2000

Stackable: No

Number of fans: 0 fan(s)

Rack mounting: No

LED indicators: Yes

Wall mountable: Yes

Housing material: Metal

Flow control support: Yes

Networking standards: IEEE 802.3af, IEEE 802.3x

Harmonized System (HS) code: 85176990

Switch type: Unmanaged

MAC address auto-aging supported: Yes

MAC address auto-learning supported: Yes

Auto-negotiation: Yes

10G support: No

Half duplex: Yes

Auto MDI/MDI-X: Yes

Full duplex: Yes

Power over Ethernet (PoE): Yes

Copper ethernet cabling technology: 10GBASE-T, 100BASE-TX

Heat dissipation: 160.61 BTU/h

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 10 - 90%

Storage temperature (T-T): -40 - 70 °C

Storage relative humidity (H-H): 5 - 90%

Bandwidth: 1.6 Gbit/s

Cables included: AC

Package height: 68 mm

Package weight: 750 g

Package width: 223 mm

Package depth: 280 mm

Fanless: Yes

Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)

Power over Ethernet (PoE) ports quantity: 4

Fast Ethernet (copper) ports quantity: 8

Power connector: DC-in jack

Basic switching RJ-45 Ethernet ports quantity: 8

Power supply included: No

DC input voltage: 53.5 V

Input current: 0.81 A

Power consumption (max): 47.1 W

Power source: DC/PoE

AC input voltage: 220 V

AC input frequency: 50 Hz

Total Power over Ethernet (PoE) budget: 41 W

Routing protocols: OSPF

IPv4 & IPv6 features: IPv6 portal

DHCP features: DHCPv6 relay

Sustainability compliance: Yes

Width: 171 mm

Depth: 98 mm

Height: 27 mm

LAN port type: FastEthernet

Garantia Produsului: 60 luni
