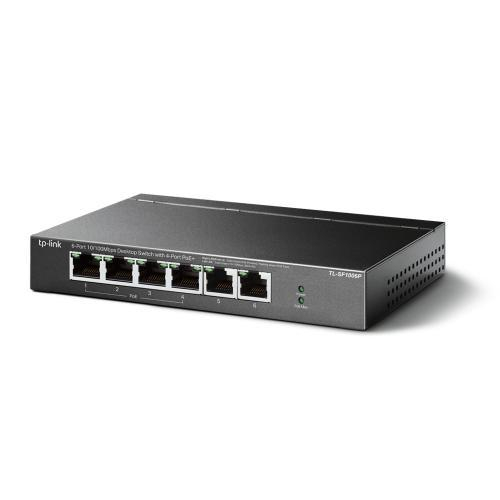

TPL 6PORT 10/100 DESKTOP 4P POE SWITCH

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

Certification: FCC, CE, RoHS

Switching capacity: 1.2 Gbit/s

Forwarding rate: 0.8928 Mpps

Jumbo frames support: Yes

MAC address table: 2000 entries

Store-and-forward: Yes

Jumbo frames: 2000

Stackable: No

Rack mounting: No

Housing material: Metal

Networking standards: IEEE 802.3af, IEEE 802.3at

Flow control support: Yes

Harmonized System (HS) code: 85176990

Switch type: Unmanaged

10G support: No

Half duplex: Yes

Cable types supported: Cat3, Cat4, Cat5, Cat5e

MAC address auto-aging supported: Yes

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 100BASE-T

MAC address auto-learning supported: Yes

Auto-negotiation: Yes

Auto MDI/MDI-X: Yes

Power over Ethernet (PoE): Yes

Full duplex: Yes

Storage relative humidity (H-H): 5 - 90%

Storage temperature (T-T): -40 - 70 °C

Heat dissipation: 252.34 BTU/h

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 10 - 90%

Package type: Box

Package depth: 196 mm

Package width: 131 mm

Package height: 121 mm

Package weight: 870 g

Fanless: Yes

Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)

Installed SFP modules quantity:

Basic switching RJ-45 Ethernet ports quantity: 6

Installed SFP+ modules quantity:

Power supply included: Yes

DC input voltage: 53.5 V

Input current: 1.31 A

AC input frequency: 50 Hz

AC input voltage: 220 V

Power consumption (max): 74 W

Power source: DC/PoE

Total Power over Ethernet (PoE) budget: 67 W

Power over Ethernet plus (PoE+) ports quantity: 4

Sustainability compliance: Yes

Height: 25 mm

Width: 158 mm

Depth: 101 mm

LAN port type: FastEthernet

Garantia Produsului: 60 luni
