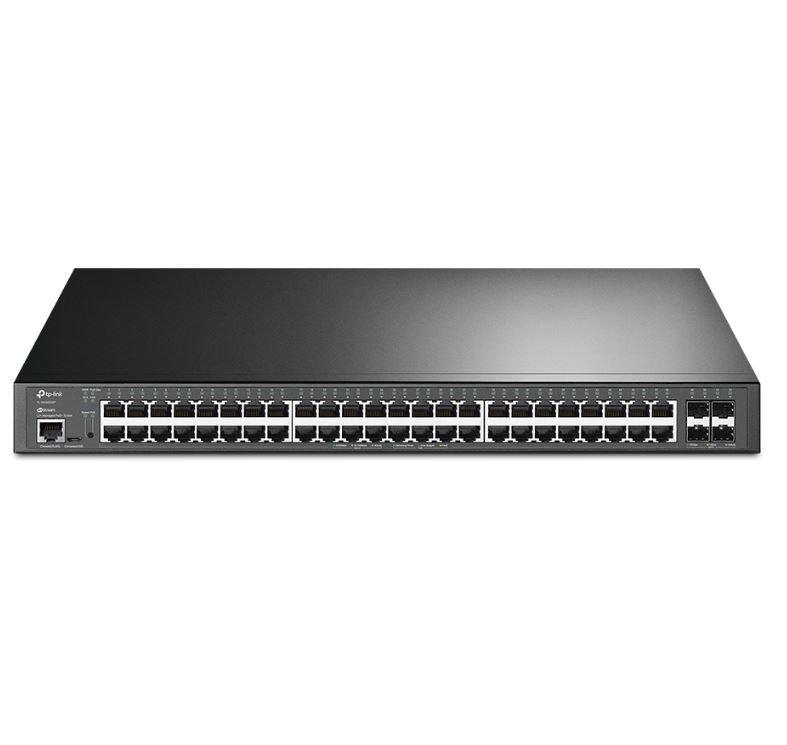

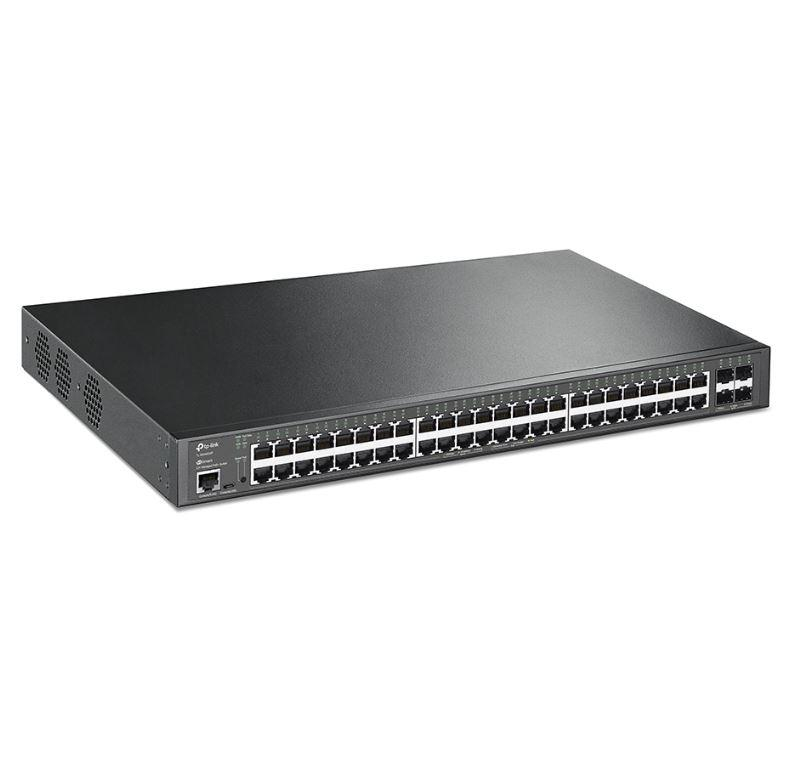

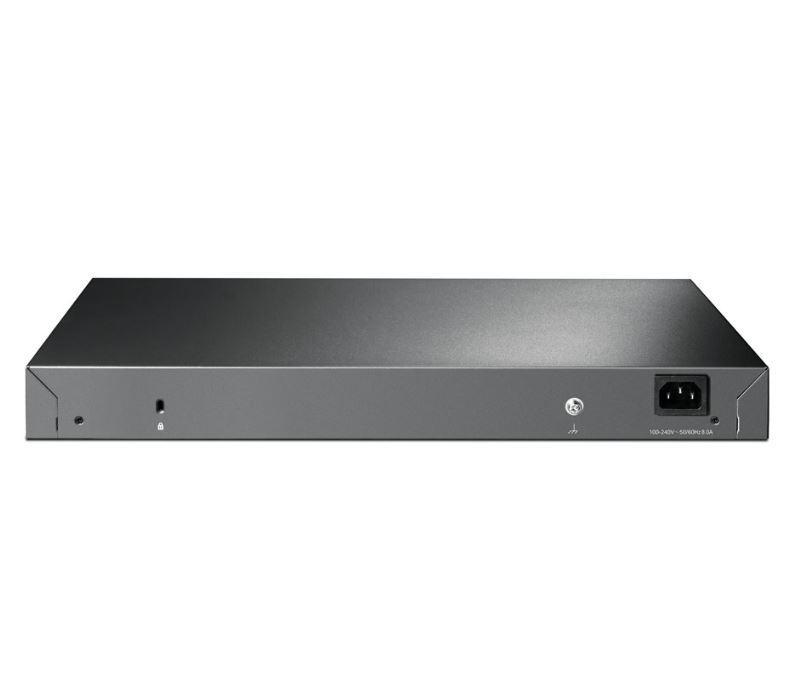

TL SW JETSTREAM 48-PORT GB L2 MNG POE+

"JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+ PORT: 48× Gigabit PoE+ Ports, 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 802.3at/af, 500 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller,Static Routing, OAM, DDM, sFlow, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6"
Garantie: 60 luni


Specificatii tehnice

Layer: Layer-2
Forwarding rate: 130.9 Mpps
Certification: CE, FCC, RoHS
Jumbo frames support: Yes
Jumbo frames: 9000
Switching capacity: 176 Gbit/s
Store-and-forward: Yes
Packet buffer memory: 12 MB
Stackable: No
Number of fans: 3 fan(s)
Reset button: Yes
Form factor: 1U
Rate limiting: Yes
Configuring Location Settings (CLI): Yes
Switch layer: L2+
Web-based management: Yes
System event log: Yes
Cloud-managed: Yes
Multicast support: Yes
Head-of-line (HOL) blocking: Yes
Broadcast storm control: Yes
Flow control support: Yes
10G support: Yes
Link aggregation: Yes
Storage relative humidity (H-H): 5 - 90%
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Heat dissipation: 2169.2 BTU/h
Cables included: AC
Console port: RJ-45/micro-USB
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 48
SFP module slots quantity: 4
Power connector: AC-in jack
Power supply included: Yes
Power source: AC
Power consumption (max): 635.7 W
AC input voltage: 100 - 240 V
Total Power over Ethernet (PoE) budget: 500 W
Power over Ethernet plus (PoE+) ports quantity: 48
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) power per port: 30 W
Static port security: Yes
SSH/SSL support: Yes
BPDU filtering/protection: Yes
MAC address filtering: Yes
Access Control List (ACL): Yes
Authentication: Auto VLAN, Guest VLAN
DHCP features: DHCP client, DHCP relay, DHCP server
IP-MAC-Port binding: Yes
Depth: 330 mm
LAN-Ports: 48
Rackable: Yes
LAN-Port-Type: Gigabit
Redundant-PSU: No
