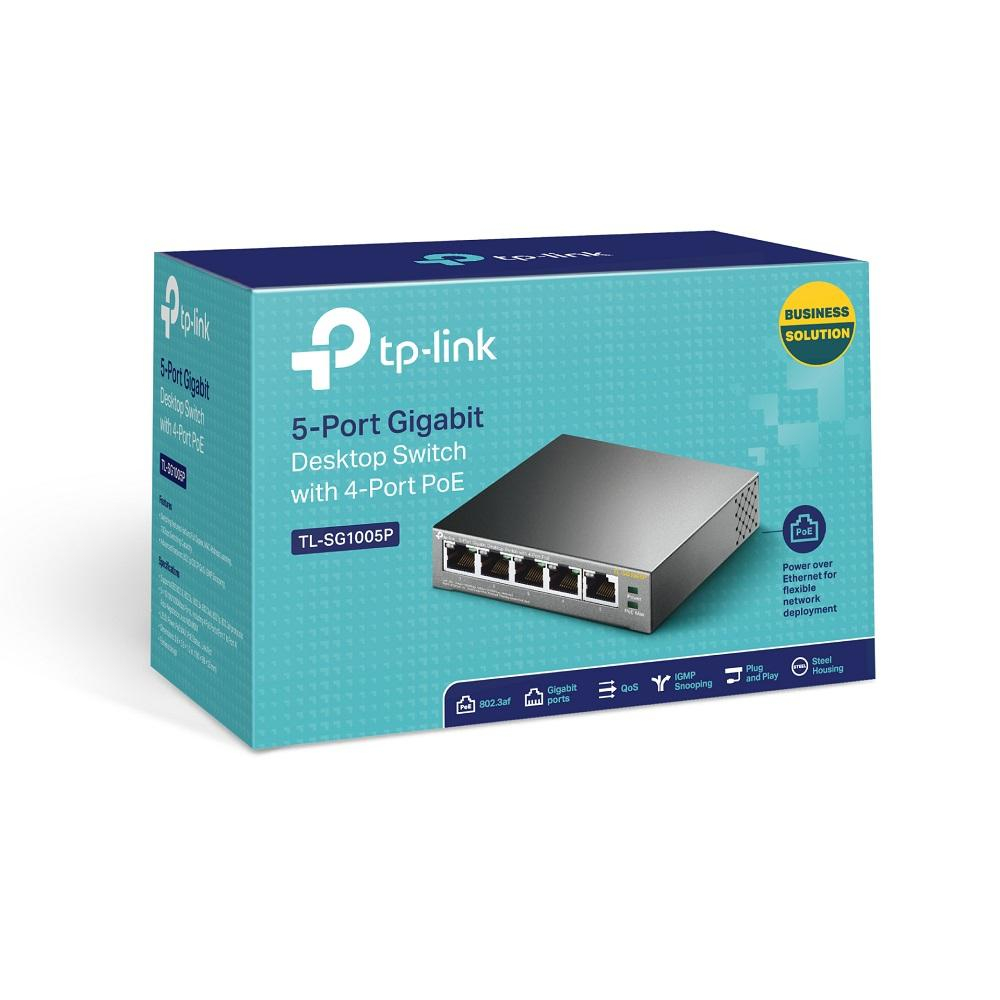

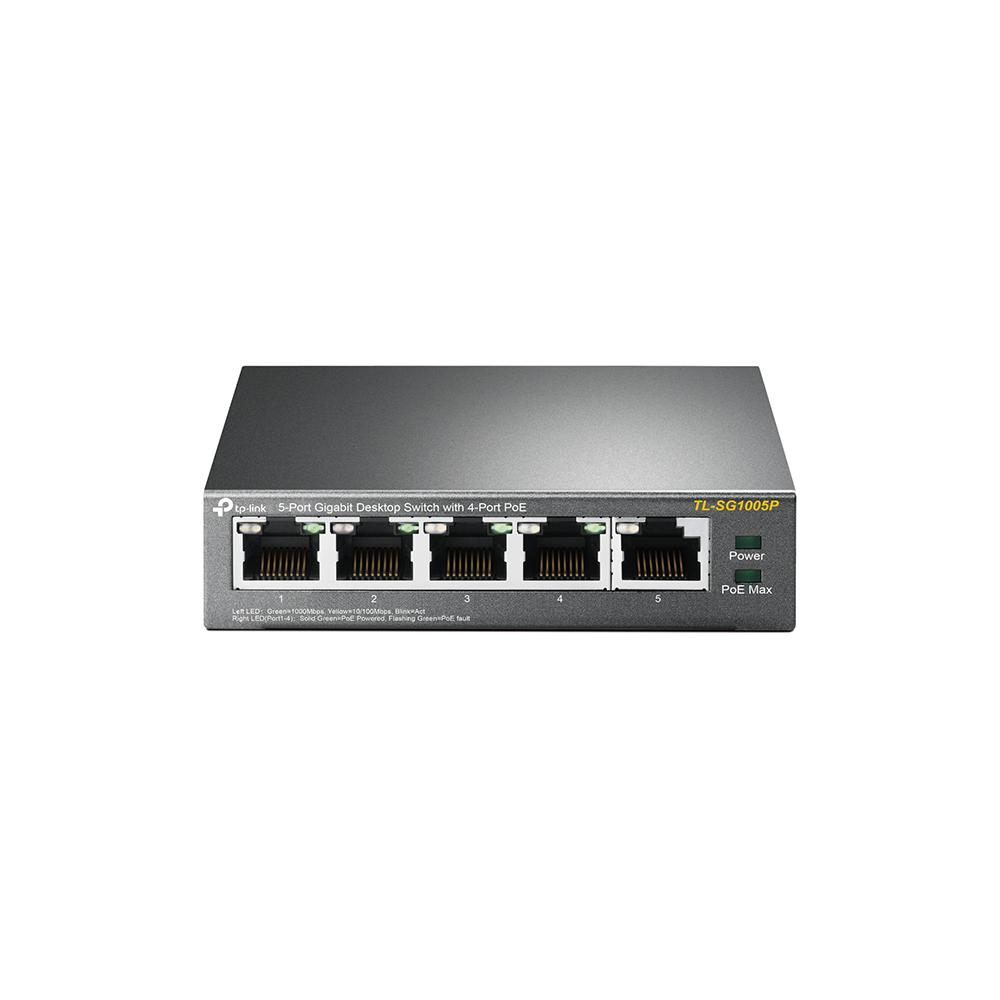

TL 5-PORT GB DESKTOP SWITCH+4PORTPOE V2

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

MAC address table: 2000 entries

Store-and-forward: Yes

Switching capacity: 10 Gbit/s

Forwarding rate: 7.44 Mpps

Stackable: No

Rack mounting: No

Flow control support: Yes

Quality of Service (QoS) support: Yes

Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x

Harmonized System (HS) code: 85176990

Switch type: Unmanaged

Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6

10G support: No

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T

Auto-negotiation: Yes

MAC address auto-learning supported: Yes

Power over Ethernet (PoE): Yes

Auto MDI/MDI-X: Yes

MAC address auto-aging supported: Yes

Heat dissipation: 219.87 BTU/h

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 10 - 90%

Storage temperature (T-T): -40 - 70 °C

Storage relative humidity (H-H): 5 - 90%

Package type: Box

Package weight: 800 g

Package depth: 196 mm

Package width: 131 mm

Package height: 121 mm

Maximum cable length: 100 m

Fanless: Yes

Basic switching RJ-45 Ethernet ports quantity: 5

Installed SFP+ modules quantity:

Power over Ethernet (PoE) ports quantity: 4

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper) ports quantity: 5

Installed SFP modules quantity:

Power supply included: Yes

DC input voltage: 48 V

Power consumption (max): 64.44 W

Power source: DC/PoE

Input current: 1.25 A

Total Power over Ethernet (PoE) budget: 56 W

IGMP snooping: Yes

Sustainability compliance: Yes

Height: 25 mm

Depth: 98 mm

Width: 99.8 mm

LAN port type: Gigabit

Garantia Produsului: 60 luni
