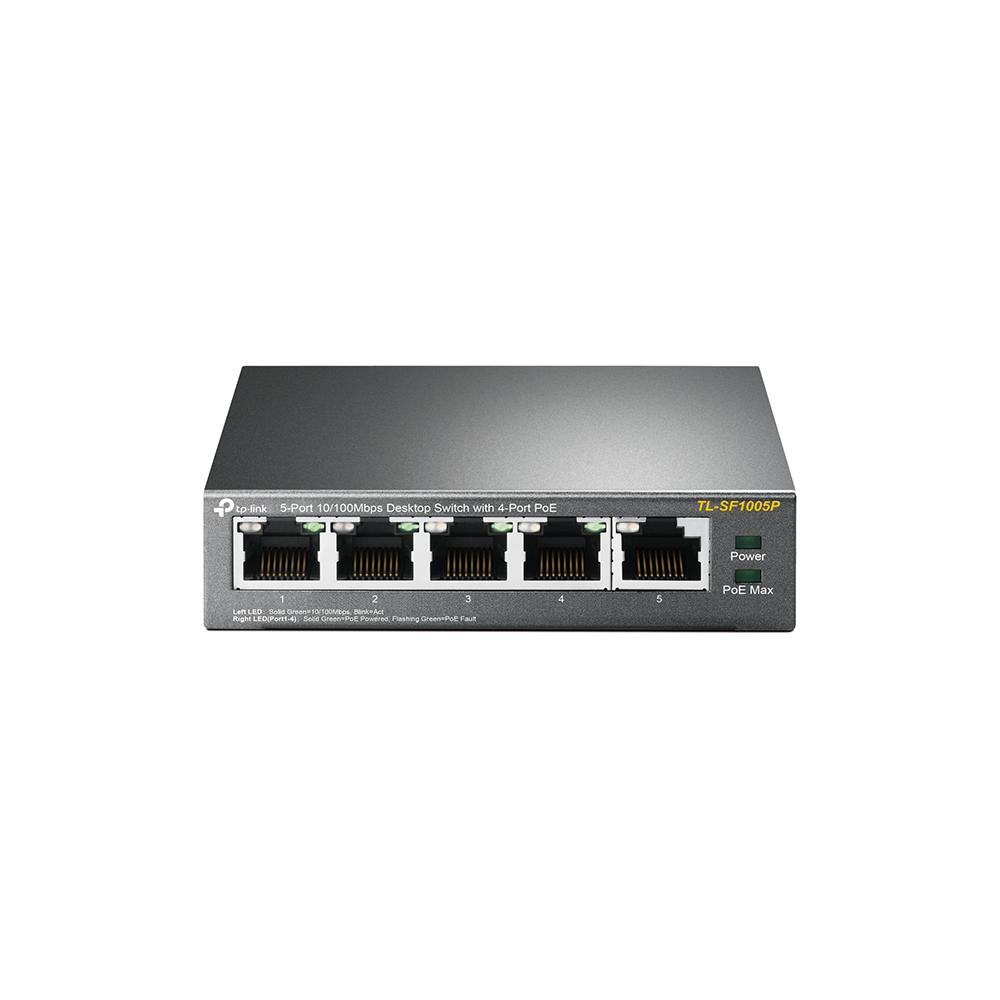

TL 5-PORT 10/100MBPS DESKTOP SWITCH

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

Forwarding rate: 0.744 Mpps

Jumbo frames support: Yes

MAC address table: 2000 entries

Store-and-forward: Yes

Switching capacity: 1 Gbit/s

Jumbo frames: 2000

Stackable: No

Rack mounting: No

Flow control support: Yes

Networking standards: IEEE 802.3af, IEEE 802.3x

Harmonized System (HS) code: 85176990

Switch type: Unmanaged

Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6

10G support: No

Half duplex: Yes

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 100BASE-T

MAC address auto-aging supported: Yes

MAC address auto-learning supported: Yes

Full duplex: Yes

Auto-negotiation: Yes

Auto MDI/MDI-X: Yes

Power over Ethernet (PoE): Yes

Heat dissipation: 252.34 BTU/h

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 10 - 90%

Storage temperature (T-T): -40 - 70 °C

Storage relative humidity (H-H): 5 - 90%

Package type: Box

Package weight: 760 g

Package depth: 196 mm

Package width: 131 mm

Package height: 121 mm

Maximum cable length: 100 m

Fanless: Yes

Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)

Basic switching RJ-45 Ethernet ports quantity: 5

Installed SFP+ modules quantity:

Installed SFP modules quantity:

Power supply included: No

DC input voltage: 53.5 V

Input current: 1.31 A

Power consumption (max): 74 W

AC input frequency: 50 Hz

AC input voltage: 220 V

Power source: DC/PoE

Power over Ethernet plus (PoE+) ports quantity: 4

Total Power over Ethernet (PoE) budget: 67 W

Sustainability compliance: Yes

Height: 25 mm

Depth: 98 mm

Width: 99.8 mm

Garantia Produsului: 60 luni
