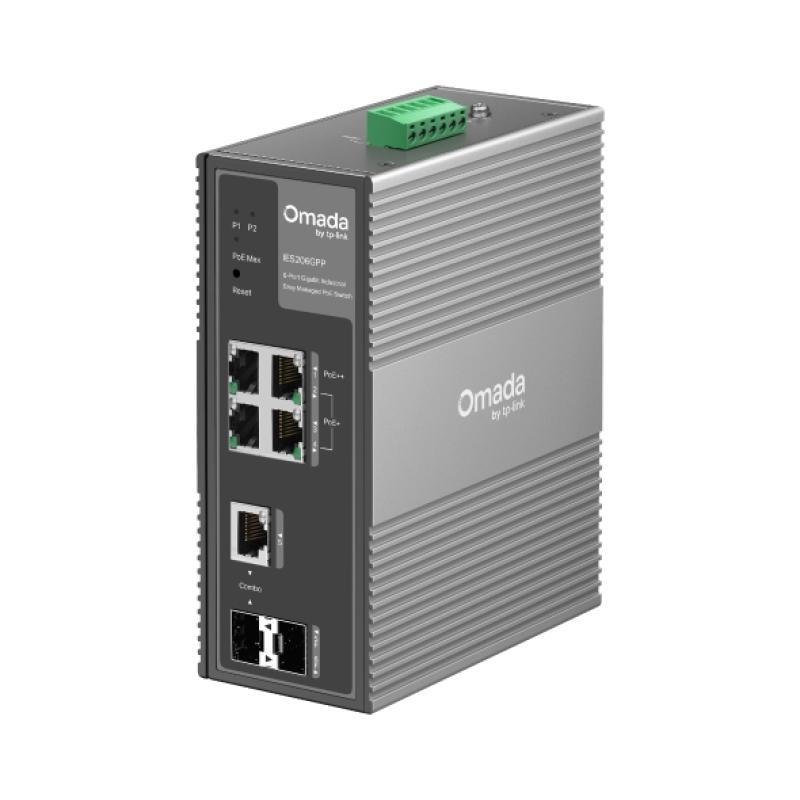

Switch industrial Omada 6-Port Gigabit

Switch Industrial Easy Managed, 6 porturi:4× Gigabit RJ45 Ports (1× PoE++, 3× PoE+), 1× Gigabit Combo RJ45/SFP Slot, 1× Gigabit SFP Slot, capacitate switch 12 Gbps
Garantie: 36 luni


Specificatii tehnice

Stackable: No
Forwarding rate: 8.93 Mpps
Certification: FCC, CE, RoHS
Store-and-forward: Yes
Jumbo frames: 15000
Switching capacity: 12 Gbit/s
Jumbo frames support: Yes
MAC address table: 8000 entries
Rack mounting: Yes
DIN rail mounting: Yes
Product colour: Black
Wall mountable: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Flow control support: Yes
Switch type: Managed
Multicast support: Yes
Port mirroring: Yes
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
10G support: No
Broadcast storm control: Yes
Spanning tree protocol: Yes
Power over Ethernet (PoE): Yes
Link aggregation: Yes
Storage relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): -40 - 75 °C
Quick start guide: Yes
Fanless: Yes
SFP module slots quantity: 1
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 4
SFP+ module slots quantity: 1
Combo SFP ports quantity: 1
DC input voltage: 12 - 57 V
Power source: DC/PoE
Redundant power supply (RPS) support: Yes
Power over Ethernet 4PPoE (PoE++) ports quantity: 1
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 120 W
Power over Ethernet plus (PoE+) ports quantity: 3
Power over Ethernet (PoE) type supported: PoE+, PoE++ (4PPoE)
DHCP features: DHCP client
IGMP snooping: Yes
Depth: 120 mm
Width: 155 mm
Height: 60 mm
Rackable: No
LAN-Port-Type: FastEthernet
Redundant-PSU: No
LAN-Ports: 5
