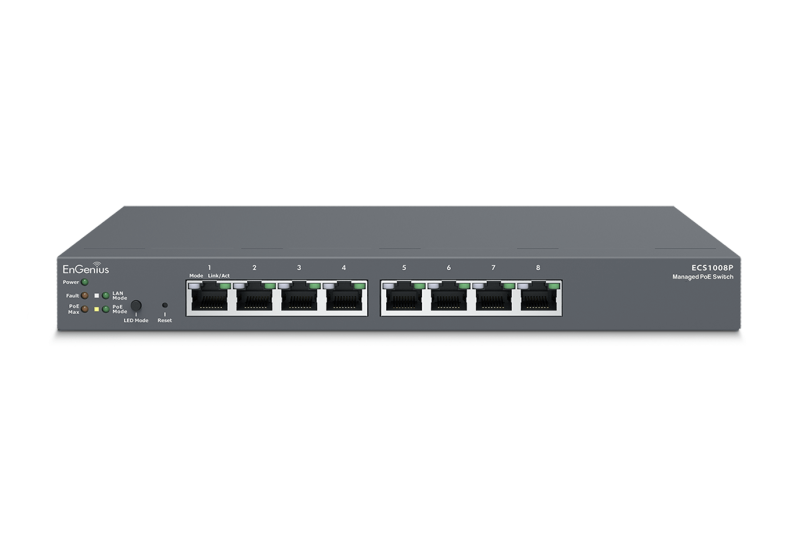

Switch EnGenius Managed 8-port 55W GbE

Jumbo frames support: Yes

Static route: Yes

MAC address table: 8000 entries

Jumbo frames: 9000

Switching capacity: 16 Gbit/s

Number of static routes: 63

Number of IP interfaces: 20

LED indicators: Yes

Stackable: No

Rack mounting: No

Wall mountable: Yes

Quality of Service (QoS) support: Yes

Flow control support: Yes

VLAN support: Yes

Flash memory: 32 MB

Harmonized System (HS) code: 85176990

ARP inspection: Yes

Configuring Location Settings (CLI): Yes

Web-based management: Yes

System event log: Yes

Switch type: Managed

Firmware upgradeable: Yes

Switch layer: L2

Multicast support: Yes

Multicast Listener Discovery (MLD) snooping: v1

Number of multicast groups filtered: 256

Multicast features: Multicast forwarding

10G support: No

Broadcast storm control: Yes

Spanning tree protocol: Yes

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T

Full duplex: Yes

Link aggregation: Yes

Power over Ethernet (PoE): Yes

Virtual LAN features: Port-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 5 - 95%

Quick start guide: Yes

Cables included: AC

Installed SFP+ modules quantity:

Installed SFP modules quantity:

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity: 8

Power over Ethernet (PoE) ports quantity: 8

Gigabit Ethernet (copper) ports quantity: 8

Total Power over Ethernet (PoE) budget: 55 W

Management protocols: SNMP v1/v2c/v3

IGMP snooping: Yes

Access Control List (ACL): Yes

Security algorithms: 802.1x RADIUS, SSH, SSL/TLS

Authentication: Port-based authentication

DHCP features: DHCP relay, DHCP snooping

Authentication type: IEEE 802.1x, RADIUS

Height: 27 mm

Depth: 105 mm

Weight: 1.5 kg

Width: 240 mm

Rackable: No

LAN-Port-Type: FastEthernet

LAN-Ports: 8

Redundant-PSU: No

Garantia Produsului: 36 luni
