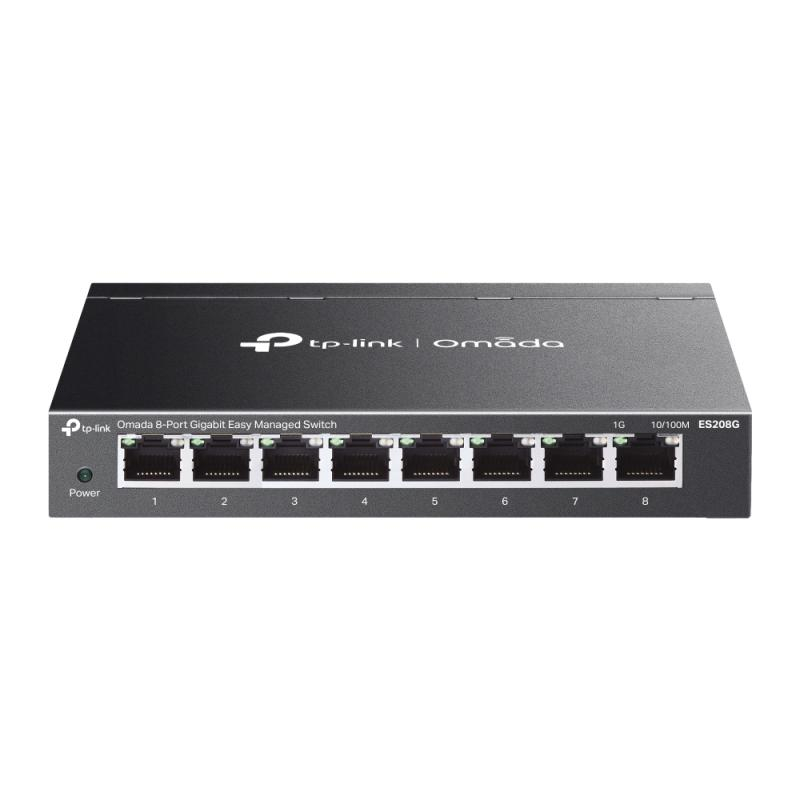

Omada 8-Port Gigabit Easy Managed Switch

Omada 8-Port Gigabit Easy Managed Switch PORT: 8× Gigabit RJ45 Ports SPEC: Desktop Steel Case and Fanless FEATURE: Integration with Omada SDN Controller and Omada Cloud Essentials, Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping, QoS, Storm Control
Garantie: 36 luni


Specificatii tehnice

Stackable: No
Forwarding rate: 11.9 Mpps
LED indicators: Yes
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Switching capacity: 16 Gbit/s
Jumbo frames: 15000
Packet buffer memory: 4 MB
Store-and-forward: Yes
Jumbo frames support: Yes
MAC address table: 8000 entries
Rack mounting: No
Product colour: Black
Wall mountable: Yes
Networking standards: IEEE 802.3ab, IEEE 802.1ab, IEEE 802.3i, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.1Q
Mean time between failures (MTBF): 1141726 h
Flash memory: 64 MB
VLAN support: Yes
Quality of Service (QoS) support: Yes
Surge protection: Yes
Flow control support: Yes
Switch layer: L2
Firmware upgradeable: Yes
Web-based management: Yes
Switch type: Managed
Unified static configuration: Yes
Cloud-managed: Yes
Virtual LAN features: MTU VLAN, Port-based VLAN, Tagged VLAN
Zero Touch Provisioning (ZTP): Yes
Fast leave: Yes
10G support: No
Number of VLANs: 32
Port mirroring: Yes
Link aggregation: Yes
Power over Ethernet (PoE): No
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 9.09 BTU/h
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): -5 - 45 °C
User guide: Yes
AC adapter included: Yes
Package type: Box
Fanless: Yes
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8
Surge protection voltage: 6 kV
Input current: 0.6 A
DC input voltage: 5 V
Power supply included: Yes
Power source: DC
Power consumption (max): 27 W
IGMP snooping: Yes
Queue scheduling algorithms: Weighted Round Robin (WRR)
DHCP features: DHCP client
Loop protection: Yes
Height: 25.4 mm
Width: 158 mm
Depth: 100.7 mm
Rackable: No
LAN-Port-Type: FastEthernet
LAN-Ports: 8
Redundant-PSU: No
