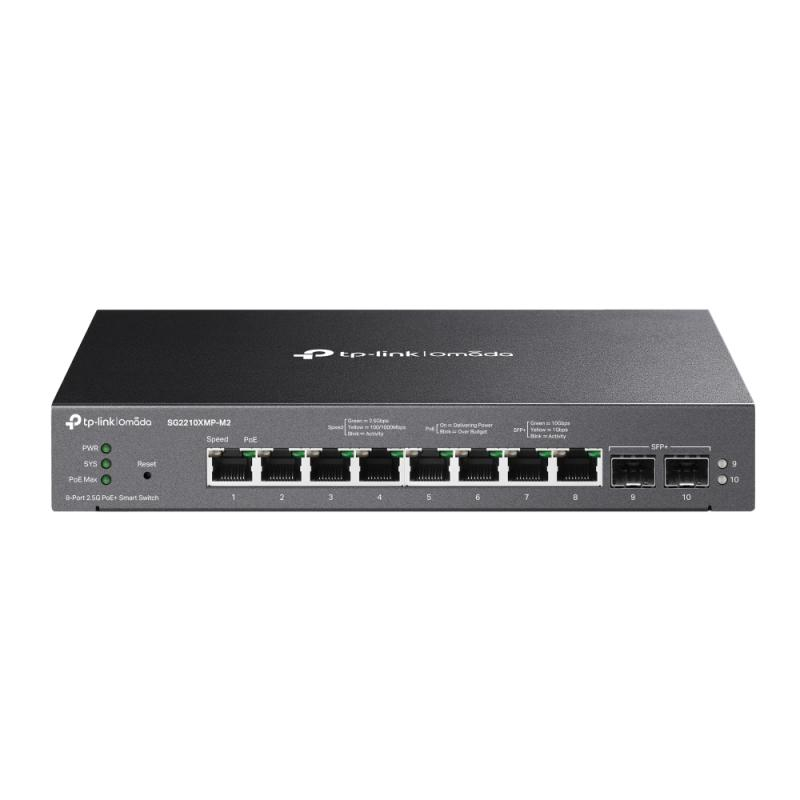

Omada 8-Port 2.5GBASE-T

Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ Smart Switch with 8-Port PoE+ PORT: 8× 2.5G PoE+ Ports, 2× 10G SFP+ Slots SPEC: 802.3at/af, 160 W PoE Power, Desktop & Fanless Steel Case FEATURE: Integration with Omada SDN Controller, Static Routing, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image, IPv6
Garantie: 36 luni


Specificatii tehnice

Forwarding rate: 59.52 Mpps
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Packet buffer memory: 9 MB
Switching capacity: 80 Gbit/s
Jumbo frames support: Yes
Static route: Yes
Jumbo frames: 9000
MAC address table: 16000 entries
Reset button: Yes
Rack mounting: Yes
Stackable: No
Product colour: Black
Form factor: Desktop/Wall-Mounting
LED indicators: Yes
Wall mountable: Yes
Rate limiting: Yes
Configuring Location Settings (CLI): Yes
Quality of Service (QoS) support: Yes
Web-based management: Yes
System event log: Yes
Switch type: Managed
Cloud-managed: Yes
Switch layer: L2/L2+
ARP inspection: Yes
MIB support: Y
Multicast support: Yes
Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x
Virtual LAN features: Protocol-based VLAN, Tagged VLAN, Voice VLAN
Port mirroring: Yes
VLAN support: Yes
Link aggregation: Yes
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
10G support: No
Broadcast storm control: Yes
Spanning tree protocol: Yes
Number of VLANs: 4000
Flow control support: Yes
Storage relative humidity (H-H): 5 - 90%
Operating temperature (T-T): 0 - 40 °C
Heat dissipation: 614.58 BTU/h
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Quick start guide: Yes
Power connector: AC/DC
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
Installed SFP+ modules quantity: 0
SFP module slots quantity: 2
Power supply included: Yes
Power source: AC
Power consumption (max): 180.1 W
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 160 W
Power over Ethernet (PoE): Yes
Access Control List (ACL): Yes
IGMP snooping: Yes
Loop protection: Yes
Authentication type: RADIUS
DHCP features: DHCP relay, DHCP server, DHCPv6 client, DHCPv6 snooping
Security algorithms: SNMP, SNMPv2, SNMPv3
Authentication: MAC-based authentication, Port-based authentication
Sustainability compliance: Yes
Height: 35 mm
Width: 226 mm
Depth: 131 mm
Rackable: No
LAN-Port-Type: FastEthernet
LAN-Ports: 8
Redundant-PSU: No
