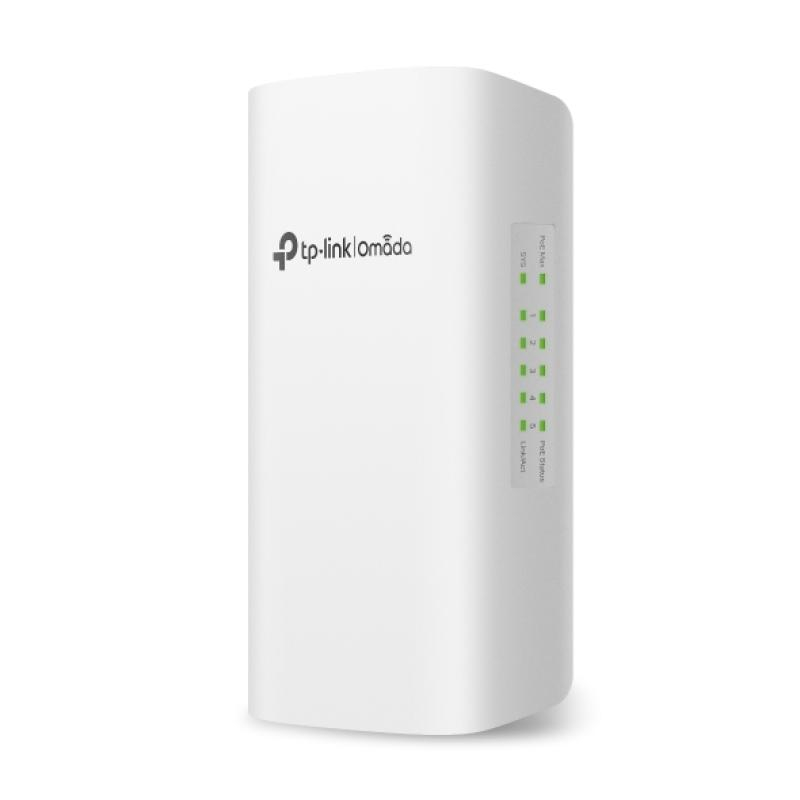

Omada 5-Port Gigabit Smart Switch

Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ in and 4-Port PoE+ out PORT: 1× Gigabit PoE++ input Ports, 4× Gigabit PoE+ output Ports SPEC: 802.3at/af, max 64 W PoE Power (90W PoE++ input), plastic case, pole-mounting/wall-mounting FEATURE: Integration with Omada SDN Controller, IP55 Weatherproof, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image, IPv6
Garantie: 36 luni


Specificatii tehnice

Stackable: No
LED indicators: Yes
Compliance certificates: CE, RoHS
Packet buffer memory: 4.1 MB
Switching capacity: 10 Gbit/s
Jumbo frames: 9
Packet forwarding rate (1 Gbps): 7440 pps
Jumbo frames support: Yes
MAC address table: 8000 entries
Form factor: Desktop
Rack mounting: No
Product colour: White
Flow control support: Yes
VLAN support: Yes
Quality of Service (QoS) support: Yes
Web-based management: Yes
Switch type: Managed
Switch layer: L2/L2+
ARP inspection: Yes
MIB support: Y
Cloud-managed: Yes
Multicast MAC address table: 8000 entries
IPv4 multicast entries: 511
IPv6 multicast entries: 511
Multicast support: Yes
Spanning tree protocol: Yes
Security algorithms: 802.1x RADIUS
10G support: Yes
Port mirroring: Yes
Power over Ethernet (PoE): Yes
Link aggregation: Yes
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 100BASE-T
IPv4 routes: 32
Number of VLANs: 4000
Virtual LAN features: Voice VLAN
Cable types supported: Cat5, Cat5e
IPv6 routes: 32
Heat dissipation: 243.99 BTU/h
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%
Operating temperature (T-T): -40 - 60 °C
Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
10G Ethernet (copper) ports quantity: 4
Power supply included: Yes
Power consumption (typical): 71.5 W
Power source: DC/PoE
Power over Ethernet (PoE) power per port: 64 W
IPv4 & IPv6 features: Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL), IPv6 tracert
Access Control List (ACL) IPv4 entries: 32
IP-MAC-Port binding: Yes
Authentication: MAC-based authentication, Port-based authentication
Password protection: Yes
IGMP snooping: Yes
DHCP features: DHCP relay, DHCP server
MAC address filtering: Yes
Access Control List (ACL): Yes
Sustainability compliance: Yes
Width: 170 mm
Depth: 100 mm
Height: 385 mm
LAN-Port-Type: FastEthernet
