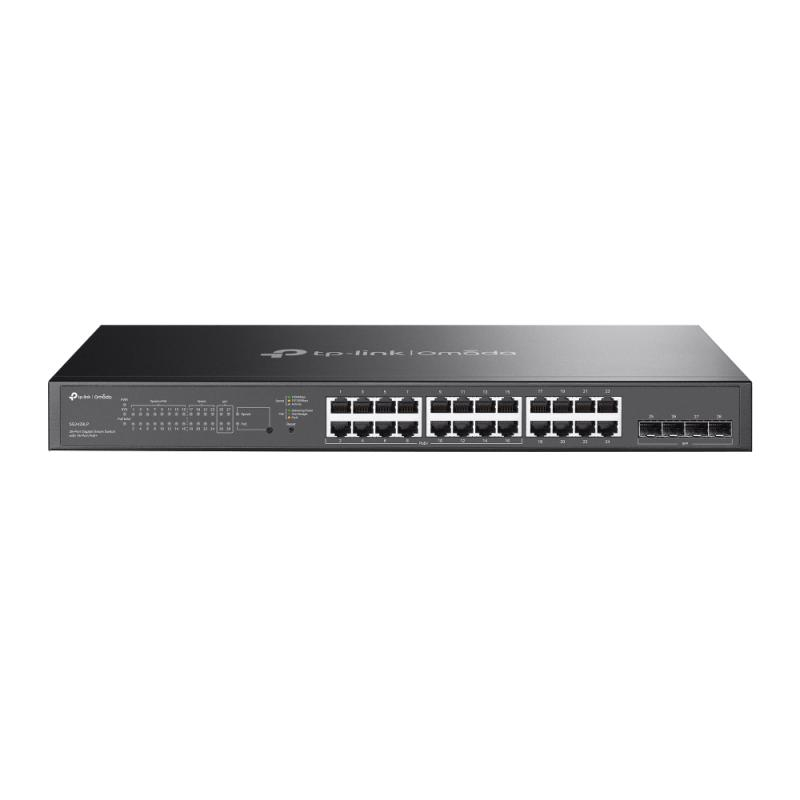

Omada 28-Port Gigabit Smart Switch

Omada 28-Port Gigabit Smart Switch with 16-Port PoE+ PORT: 24× Gigabit Ports (16×PoE+ and 8× Non-PoE), 4× Gigabit SFP Slots SPEC: 16× 802.3at/af, 150 W PoE Power, 1U 19-inch Rack-mountable Steel Case, Fanless FEATURE: Integration with Omada SDN Controller, Static Routing, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image, IPv6
Garantie: 36 luni


Specificatii tehnice

Forwarding rate: 41.66 Mpps
LED indicators: Yes
Packet buffer memory: 4.1 MB
Switching capacity: 56 Gbit/s
Jumbo frames support: Yes
MAC address table: 8000 entries
Jumbo frames: 9000
Rack mounting: Yes
VLAN support: Yes
Quality of Service (QoS) support: Yes
Networking standards: IEEE 802.3af, IEEE 802.3at
Flow control support: Yes
Web-based management: Yes
Switch type: Managed
ARP inspection: Yes
Switch layer: L2/L2+
Cloud-managed: Yes
Multicast support: Yes
Number of VLANs: 4000
Virtual LAN features: MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Power over Ethernet (PoE): Yes
Link aggregation: Yes
Auto-negotiation: Yes
10G support: No
Spanning tree protocol: Yes
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 628 BTU/h
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Fanless: Yes
SFP module slots quantity: 4
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 4
Power source: AC/PoE
Power consumption (max): 184.7 W
AC input voltage: 100 - 240 V
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 150 W
Power over Ethernet plus (PoE+) ports quantity: 16
Password protection: Yes
MAC address filtering: Yes
Access Control List (ACL): Yes
IGMP snooping: Yes
DHCP features: DHCP relay, DHCP server
Depth: 220 mm
LAN-Port-Type: FastEthernet
