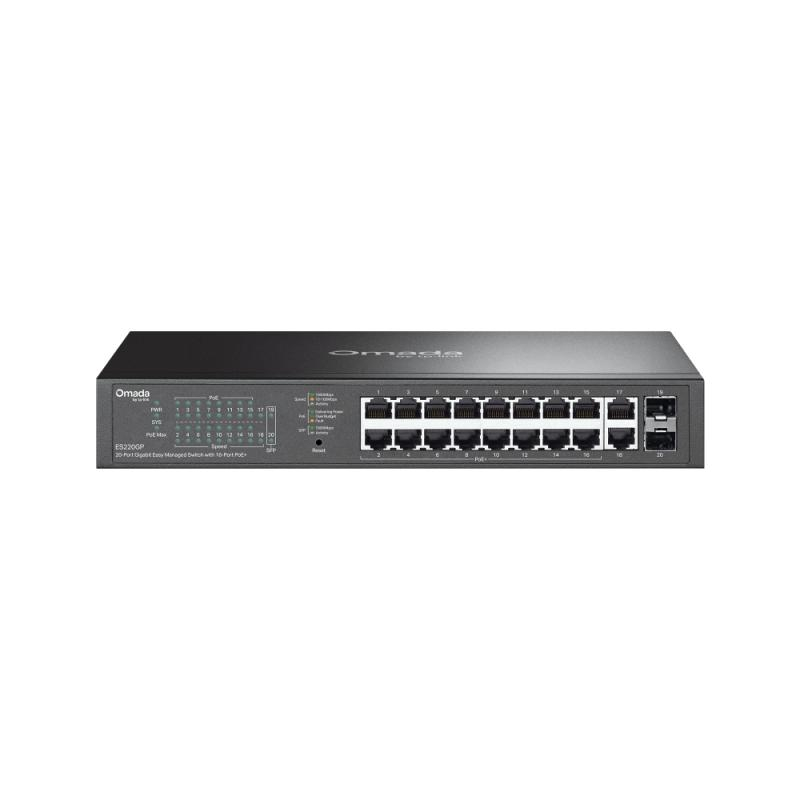

Omada 20-Port Switch ES220GP

Omada 20-Port Switch ES220GP, • 16× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3at PoE+ and 802.3af PoE)• 2× 10/100/1000 Mbps RJ45 Port• 2 × Gigabit SFP Slot, 100–240 VAC, 50/60 Hz, capacitate switch 40 Gbps
Garantie: 36 luni


Specificatii tehnice

Stackable: No
Forwarding rate: 29.76 Mpps
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Switching capacity: 40 Gbit/s
Number of queues: 8
MAC address table: 8000 entries
Packet buffer memory: 4 MB
Store-and-forward: Yes
Jumbo frames support: Yes
Rack mounting: Yes
Product colour: Black
Housing material: Metal
Ethernet LAN data rates: 10,100,1000 Mbit/s
VLAN support: Yes
Quality of Service (QoS) support: Yes
Flow control support: Yes
Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Noise level: 20.1 dB
Mean time between failures (MTBF): 320156 h
Cloud-managed: Yes
Web-based management: Yes
Switch type: Managed
Multicast support: Yes
10G support: No
Broadcast storm control: Yes
Auto MDI/MDI-X: Yes
Virtual LAN features: MTU VLAN, Port-based VLAN, Tagged VLAN
Number of VLANs: 32
Port mirroring: Yes
Auto-negotiation: Yes
Power over Ethernet (PoE): Yes
Link aggregation: Yes
Storage relative humidity (H-H): 5 - 90%
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -5 - 40 °C
User guide: Yes
Cables included: AC
Fanless: Yes
Power connector: AC-in jack
Installed SFP+ modules quantity: 0
Basic switching RJ-45 Ethernet ports quantity: 18
Gigabit Ethernet (copper) ports quantity: 18
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 2
Input current: 2.5 A
Power source: AC
Power consumption (max): 182.43 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power over Ethernet plus (PoE+) ports quantity: 16
Power over Ethernet (PoE) type supported: PoE+
Total Power over Ethernet (PoE) budget: 150 W
Power over Ethernet (PoE) power per port: 30 W
IGMP snooping: Yes
DHCP features: DHCP client
Queue scheduling algorithms: Weighted Round Robin (WRR)
Depth: 180 mm
Height: 44 mm
Width: 294 mm
Rackable: No
LAN-Port-Type: FastEthernet
LAN-Ports: 8
Redundant-PSU: No
