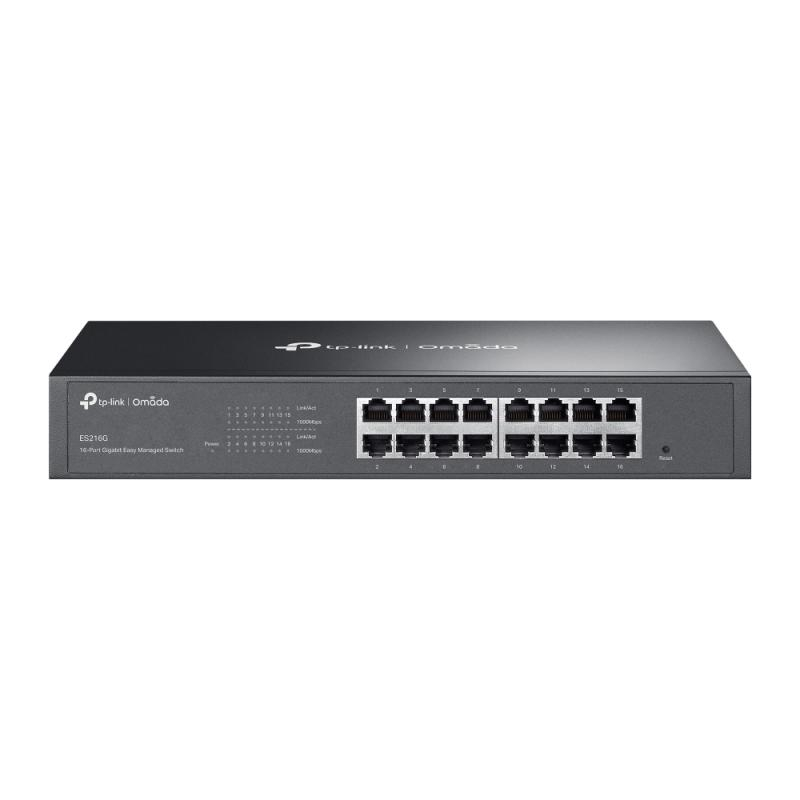

Omada 16-Port Gigabit Easy Managed Switc

Omada 16-Port Gigabit Easy Managed Switch PORT: 16× Gigabit RJ45 Ports SPEC: 1U 13-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller and Omada Cloud Essentials, Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping, QoS, Storm Control
Garantie: 36 luni


Specificatii tehnice

Stackable: No
Forwarding rate: 23.8 Mpps
LED indicators: Yes
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Packet buffer memory: 4 MB
Store-and-forward: Yes
Jumbo frames: 15000
Jumbo frames support: Yes
MAC address table: 8000 entries
Switching capacity: 32 Gbit/s
Rack mounting: Yes
Product colour: Black
Mean time between failures (MTBF): 2131140 h
Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x
Flash memory: 64 MB
VLAN support: Yes
Quality of Service (QoS) support: Yes
Surge protection: Yes
Flow control support: Yes
Switch layer: L2
Firmware upgradeable: Yes
Web-based management: Yes
Switch type: Managed
Unified static configuration: Yes
Cloud-managed: Yes
Zero Touch Provisioning (ZTP): Yes
Fast leave: Yes
Number of VLANs: 32
Virtual LAN features: MTU VLAN, Port-based VLAN, Tagged VLAN
Port mirroring: Yes
Link aggregation: Yes
Power over Ethernet (PoE): No
Auto MDI/MDI-X: Yes
10G support: No
Auto-negotiation: Yes
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 28.52 BTU/h
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): -5 - 50 °C
User guide: Yes
Cables included: AC
Rack mount kit: Yes
Package type: Box
Fanless: Yes
Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 16
Power connector: AC-in jack
Surge protection voltage: 6 kV
Power source: AC
Power supply included: Yes
Power consumption (max): 8.4 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
IGMP snooping: Yes
Queue scheduling algorithms: Weighted Round Robin (WRR)
Loop protection: Yes
DHCP features: DHCP client
Depth: 140 mm
Width: 294 mm
Height: 44 mm
Rackable: No
LAN-Port-Type: FastEthernet
LAN-Ports: 8
Redundant-PSU: No
