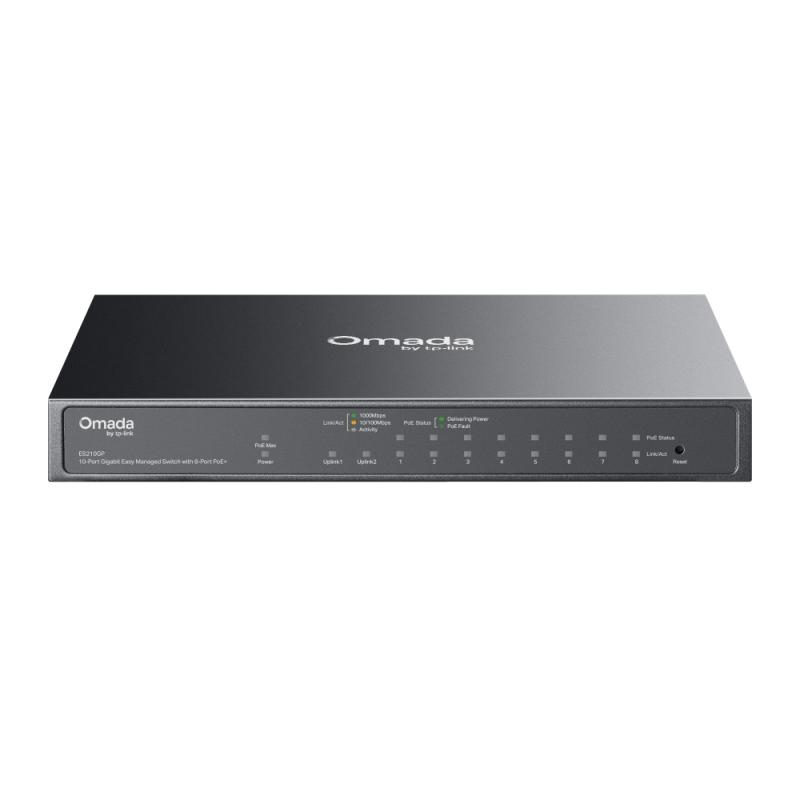

Omada 10Port Gigabit Switch

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

Packet buffer memory: 0.5 MB

Switching capacity: 20 Gbit/s

Forwarding rate: 14.88 Mpps

Store-and-forward: Yes

Jumbo frames: 15000

Jumbo frames support: Yes

MAC address table: 8000 entries

Stackable: No

Rack mounting: Yes

Form factor: DIN rail

Product colour: Black

LED indicators: Yes

Ethernet LAN data rates: 10,100,1000 Mbit/s

VLAN support: Yes

Quality of Service (QoS) support: Yes

Flow control support: Yes

Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

Cloud-managed: Yes

Switch layer: L2

Web-based management: Yes

Switch type: Managed

Multicast support: Yes

Auto-negotiation: Yes

10G support: No

Broadcast storm control: Yes

Port mirroring: Yes

Auto MDI/MDI-X: Yes

Link aggregation: Yes

Power over Ethernet (PoE): Yes

Virtual LAN features: MTU VLAN, Port-based VLAN, Tagged VLAN

Number of VLANs: 4000

Operating relative humidity (H-H): 10 - 90%

Operating temperature (T-T): 0 - 40 °C

Storage temperature (T-T): -40 - 70 °C

Storage relative humidity (H-H): 5 - 90%

Transmission distance (max): 0.25 km

Quick start guide: Yes

Cables included: Power

Combo SFP ports quantity: 1

Basic switching RJ-45 Ethernet ports quantity: 10

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Input current: 1.31 A

DC input voltage: 53 V

Power source: DC

Total Power over Ethernet (PoE) budget: 63 W

Power over Ethernet plus (PoE+) ports quantity: 8

Power over Ethernet (PoE) type supported: PoE+

IGMP snooping: Yes

Loop protection: Yes

DHCP features: DHCP client

Height: 26 mm

Depth: 126 mm

Width: 209 mm

Rackable: No

LAN-Port-Type: FastEthernet

LAN-Ports: 8

Redundant-PSU: No

Garantia Produsului: 36 luni
