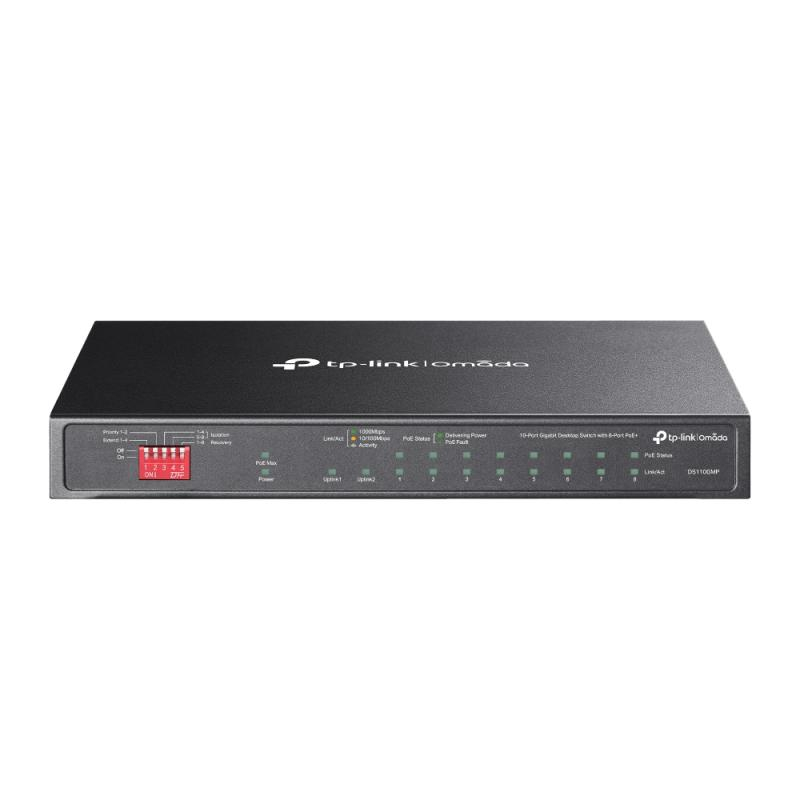

Omada 10-Port Gigabit Desktop Switch

Omada 10-Port Gigabit Desktop Switch with 8-Port PoE+ PORT: 8× Gigabit PoE+ Ports, 2x Gigabit Non-PoE Ports, 1× Combo Gigabit SFP Slot SPEC: 802.3at/af, 123 W PoE Power, Desktop Steel Case FEATURE: Extend Mode for 250m PoE Transmitting, Priority Mode for Port1-2, Isolation Mode, PoE Auto Recovery, Plug and Play
Garantie: 36 luni


Specificatii tehnice

Montare in rack: Nu
PoE: Nu
Forwarding rate: 14.88 Mpps
Management: Nu
LED indicators: Activity, Link, PoE, Power
Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS
Jumbo frames: 16
MAC address table: 4000 entries
Switching capacity: 20 Gbit/s
Jumbo frames support: Yes
Rack mounting: No
Housing material: Metal
Wall mountable: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Quality of Service (QoS) support: Yes
Plug and Play: Yes
Flow control support: Yes
Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Switch type: Unmanaged
Auto MDI/MDI-X: Yes
Power over Ethernet (PoE): Yes
10G support: No
Half duplex: Yes
Auto-negotiation: Yes
Full duplex: Yes
MAC address auto-aging supported: Yes
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X
MAC address auto-learning supported: Yes
Operating temperature (T-T): 0 - 40 °C
Heat dissipation: 482.17 BTU/h
Storage relative humidity (H-H): 5 - 90%
Cables included: Power
Fanless: Yes
Power connector: AC/DC
Basic switching RJ-45 Ethernet ports quantity: 10
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 1
DC input voltage: 53.5 V
Input current: 2.43 A
Power source: DC
Power consumption (max): 141.4 W
Power supply included: Yes
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 123 W
Viteza Transfer: Gigabit
Porturi RJ 45: 8× Gigabit PoE+ Ports, 2x Gigabit Non-PoE Ports
Porturi SFP: 1× Combo Gigabit SFP Slot
Height: 26 mm
Depth: 126 mm
Width: 209 mm
LAN-Port-Type: FastEthernet
