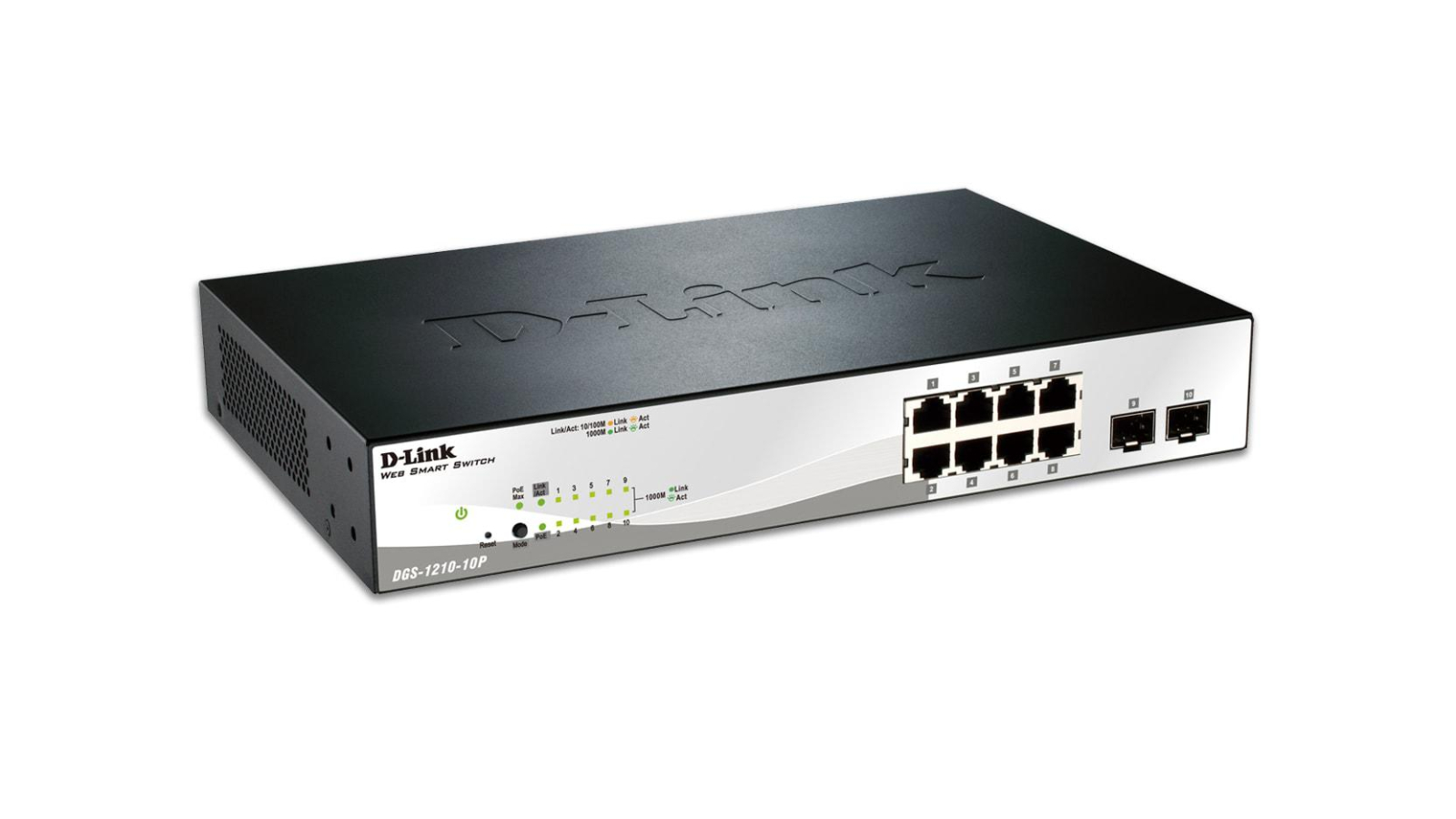

DLINK SW 8P-GB POE+ 2CMB SMART RM

D-Link Switch DGS-1210-10P, 8 porturi Gigabit PoE 802.3af, PoE budget78W, 2 porturi combo 1000BaseT/SFP, Capacity 20Gbps, 16K MAC, W ebSmart,fanless
Garantie: 60 luni


Specificatii tehnice

Stackable: Yes
Forwarding rate: 14.88 Mpps
LED indicators: Yes
Certification: EMI: CE Class A, VCCI Class A, FCC Class A, BSMI, CCC
Store-and-forward: Yes
Switching capacity: 20 Gbit/s
MAC address table: 8000 entries
Packet buffer memory: 0.512 MB
Product colour: Black
Rack mounting: Yes
Form factor: 1U
Noise level: 0 dB
Flow control support: Yes
Quality of Service (QoS) support: Yes
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Mean time between failures (MTBF): 729258 h
Harmonized System (HS) code: 85176990
Switch layer: L2
Web-based management: Yes
Switch type: Managed
Multicast support: Yes
Full duplex: Yes
10G support: No
Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
Cable types supported: Cat5, Cat5e
Port mirroring: Yes
Auto MDI/MDI-X: Yes
Power over Ethernet (PoE): Yes
Link aggregation: Yes
Storage relative humidity (H-H): 0 - 95%
Operating relative humidity (H-H): 0 - 95%
Heat dissipation: 373.96 BTU/h
Operating temperature (T-T): -5 - 50 °C
Storage temperature (T-T): -20 - 70 °C
Package weight: 2.21 kg
Package depth: 331 mm
Package height: 72 mm
Package width: 288 mm
Gigabit Ethernet (copper) ports quantity: 8
Installed SFP+ modules quantity: 0
SFP+ module slots quantity: 2
SFP module slots quantity: 2
Basic switching RJ-45 Ethernet ports quantity: 8
Installed SFP modules quantity: 0
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power connector: DC-in jack
Power over Ethernet (PoE) ports quantity: 8
Power consumption (max): 80.6 W
Power over Ethernet plus (PoE+) ports quantity: 2
Total Power over Ethernet (PoE) budget: 78 W
MAC address filtering: Yes
Access Control List (ACL): Yes
Master (outer) cases per pallet (sea): 54 pc(s)
Products per pallet (sea): 270 pc(s)
Pallet gross length: 110 cm
Pallet gross width: 120 cm
Master (outer) cases per pallet (air): 36 pc(s)
Shipping (inner) case height: 31.7 cm
Shipping (inner) case width: 34.6 cm
Shipping (inner) case length: 38.2 cm
Shipping (inner) case net weight: 11.1 kg
Pallet gross weight (air): 449.5 kg
Products per pallet (air): 180 pc(s)
Pallet height (air): 140.3 cm
Pallet gross weight (sea): 662 kg
Pallet height (sea): 2.04 m
Shipping (inner) case gross weight: 11.8 kg
Products per shipping (inner) case: 5 pc(s)
Weight: 950 g
Depth: 126 mm
Height: 44 mm
Width: 280 mm
LAN port type: Gigabit
