DLINK SW 24P-GB UNMNGD DESK/RM

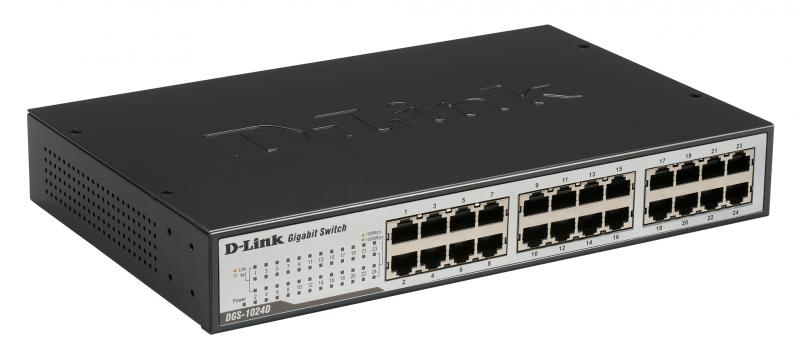

D-Link Switch DGS-1024D, 24 porturi Gigabit, Capacity 48Gbps, desktop ,fara management, metal, negru,
Garantie: 24 luni


Specificatii tehnice

Stackable: Yes
Forwarding rate: 35.71 Mpps
LED indicators: Activity, Link, Power, Speed
Certification: cUL/ULnCE LVDnCCCnCBnBSMI
Switching capacity: 48 Gbit/s
Maximum data transfer rate: 1 Gbit/s
Jumbo frames: 10000
Packet forwarding rate (100 Mbps): 148800 pps
Packet forwarding rate (1 Gbps): 14880 pps
Packet forwarding rate (10 Mbps): 1488000 pps
Jumbo frames support: Yes
Number of queues: 8
MAC address table: 8000 entries
Packet buffer memory: 0.5 MB
Store-and-forward: Yes
Rack mounting: Yes
Form factor: 1U
Product colour: Black, Silver
Housing material: Metal
Electromagnetic compatibility: ICES-003 Class A, FCC Class A, RCM Class A, BSMI Class A, CE Class A, VCCI A, CCC, KCC
Mean time between failures (MTBF): 863100 h
Noise level: 0 dB
Quality of Service (QoS) support: Yes
Flow control support: Yes
Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Harmonized System (HS) code: 85176990
Switch type: Unmanaged
Full duplex: Yes
Active link detection: Yes
Cable types supported: Cat3, Cat4, Cat5, Cat5e
MAC address auto-aging supported: Yes
10G support: No
Broadcast storm control: Yes
Power over Ethernet (PoE): No
Auto MDI/MDI-X: Yes
Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
MAC address auto-learning supported: Yes
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Heat dissipation: 45.35 BTU/h
Dimensions (WxDxH): 280 x 180 x 44 mm
Package weight: 2.43 kg
Package width: 262 mm
Package height: 102 mm
Package depth: 391 mm
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity: 0
Basic switching RJ-45 Ethernet ports quantity: 24
Power connector: AC-in jack
Input current: 0.3 A
Power supply included: Yes
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 13.3 W
Power consumption (typical): 26.7 W
Pallet gross width: 120 cm
Pallet gross length: 110 cm
Shipping (inner) case width: 28.4 cm
Master (outer) cases per pallet (air): 32 pc(s)
Master (outer) cases per pallet (sea): 32 pc(s)
Shipping (inner) case length: 54.3 cm
Shipping (inner) case height: 43.1 cm
Shipping (inner) case net weight: 8.53 kg
Pallet gross weight (air): 435.8 kg
Products per pallet (air): 160 pc(s)
Pallet height (air): 185.9 cm
Pallet gross weight (sea): 435.8 kg
Products per pallet (sea): 160 pc(s)
Pallet height (sea): 185.9 cm
Shipping (inner) case gross weight: 13 kg
Products per shipping (inner) case: 5 pc(s)
Height: 44 mm
Width: 280 mm
Weight: 1.3 kg
Depth: 180 mm
LAN port type: Gigabit
