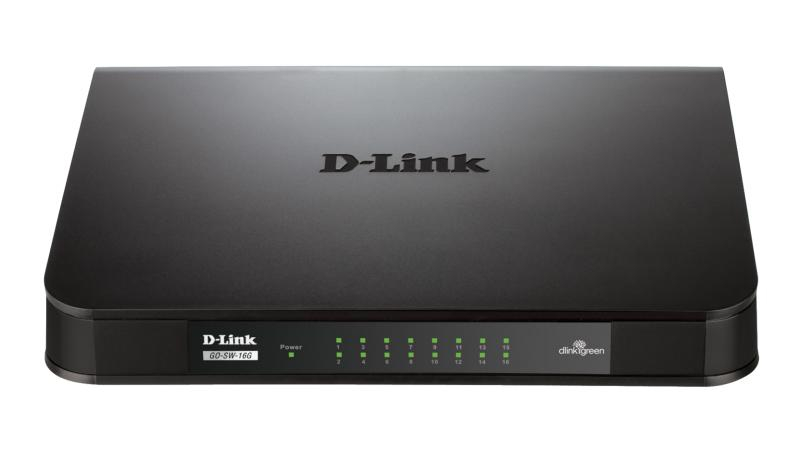

DLINK SW 16P-GB UNMNGD DESK GO

Certification: CE Class A, FCC Class A, VCCI Class A, BSMI, CCCnUL, CB, LVD, BSMI, CCC

Jumbo frames support: Yes

Number of queues: 8

MAC address table: 8000 entries

Switching capacity: 32 Gbit/s

Jumbo frames: 9216

Store-and-forward: Yes

Forwarding rate: 23.81 Mpps

Packet buffer memory: 0.512 MB

Number of fans: 0 fan(s)

Form factor: 1U

Rack mounting: Yes

LED indicators: Yes

Housing material: Metal

Ethernet LAN data rates: 10,100,1000 Mbit/s

Quality of Service (QoS) support: Yes

Flow control support: Yes

Mean time between failures (MTBF): 305171 h

Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x

Harmonized System (HS) code: 85176990

Switch type: Unmanaged

Switch layer: L2

Auto MDI/MDI-X: Yes

Auto-negotiation: Yes

Power over Ethernet (PoE): No

Full duplex: Yes

Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T

10G support: No

Half duplex: Yes

Storage temperature (T-T): -40 - 70 °C

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 10 - 90%

Heat dissipation: 39.92 BTU/h

Storage relative humidity (H-H): 5 - 95%

Package width: 180 mm

Package weight: 1.45 kg

Package height: 108 mm

Package depth: 328 mm

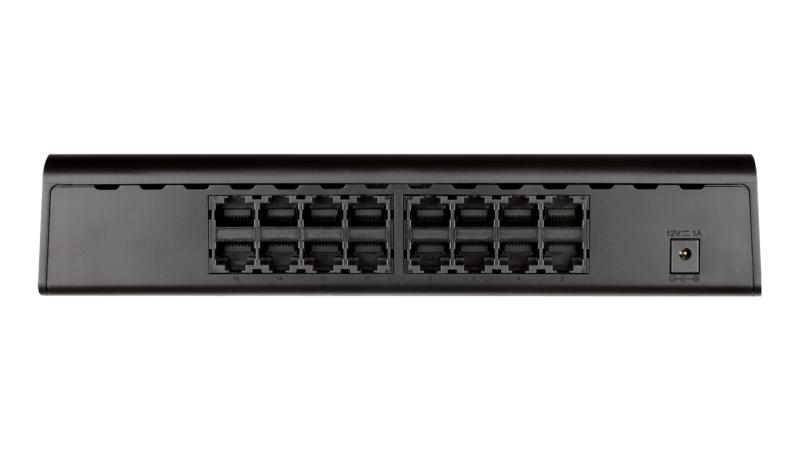

Basic switching RJ-45 Ethernet ports quantity: 16

Gigabit Ethernet (copper) ports quantity: 16

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Power connector: DC-in jack

Installed SFP+ modules quantity:

Installed SFP modules quantity:

Number of power supply units: 1

DC input voltage: 12 V

Redundant power supply (RPS) support: No

Input current: 1 A

Power supply included: Yes

Power consumption (max): 11.7 W

Master (outer) cases per pallet (sea): 30 pc(s)

Pallet height (air): 2.06 m

Shipping (inner) case height: 38.4 cm

Shipping (inner) case gross weight: 15.6 kg

Shipping (inner) case width: 34 cm

Shipping (inner) case length: 56.9 cm

Shipping (inner) case net weight: 15 kg

Pallet gross weight (air): 491.5 kg

Pallet gross weight (sea): 491.5 kg

Products per pallet (sea): 300 pc(s)

Master (outer) cases per pallet (air): 30 pc(s)

Pallet gross length: 110 cm

Pallet gross width: 120 cm

Products per pallet (air): 300 pc(s)

Pallet height (sea): 2.06 m

Products per shipping (inner) case: 10 pc(s)

Weight: 870 g

Depth: 126 mm

Width: 280 mm

LAN port type: Gigabit

Garantia Produsului: 24 luni
