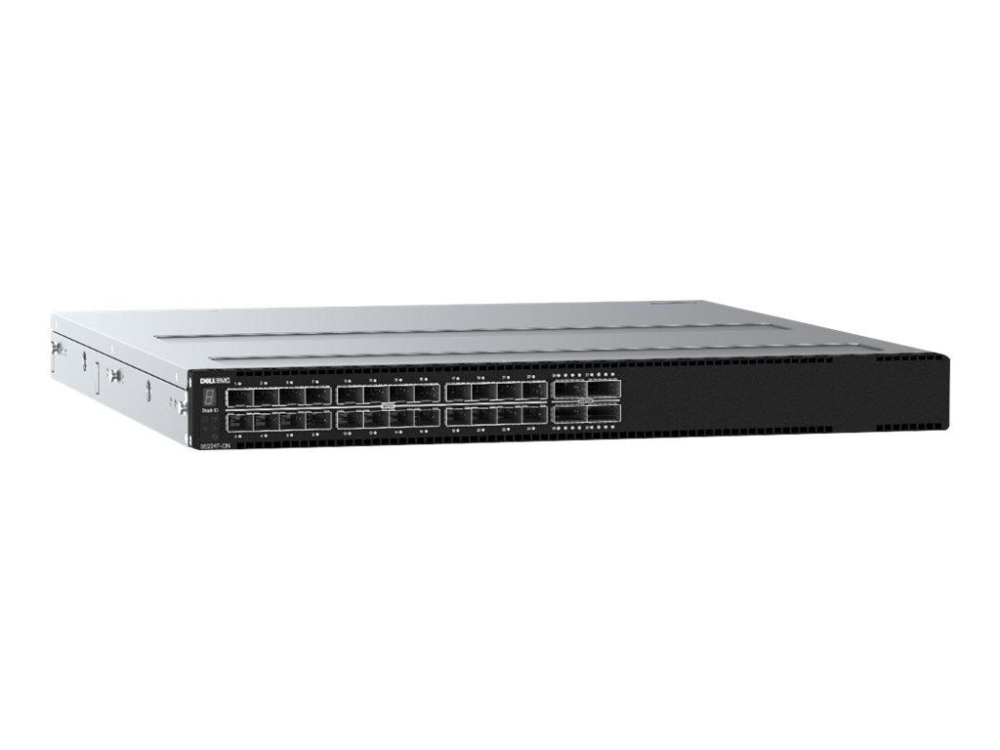

Dell EMC S5224F-ON Switch

Management: Da

PoE: Nu

Montare in rack: Da

Greutate: 9.7 kg

Memorie: 8 GB

Memorie Flash: 16 GB

Caracteristici speciale: Flow control, full duplex capability, ARP support, trunking, VLAN support, IGMP snooping, Syslog support, port mirroring, IPv6 support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree

Conectori: 1x port RJ45 consola/management cu RS232

Dimensiuni: 460 x 44 x 434 mm

Layer: Layer 3

Memorie Buffer: 32 MB

Metoda forwarding: 720 Mpps (1.42 Bpps full duplex)

Numar porturi: 24x SFP28
4x QSFP28 (uplink)

Protocoale de rutare: OSPF, BGP-4, BGP, IGMPv2, IGMP, VRRP, OSPFv2, static IP routing, IGMPv3, OSPFv3, policy-based routing (PBR), MLDv2, MLD, Bidirectional Forwarding Detection (BFD), VRRPv3, CIDR, MLDv3, MSTP

Putere consumata (W): Maximum: 455 W
Tipic: 200 W

Remote Management Protocol: SNMP 1, Telnet, SNMP 2c, TFTP, SSH-2, CLI, NTP

Rutare IP: IPv4: 128000
IPv6: 64000

Securitate: MD5, RADIUS, TACACS, Secure Shell v.2 (SSH2)

Sistem de operare: Dell SmartFabric OS10

Standarde: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 1588v

Switch capacity: 1.08 Tbps (2.16 Tbps full duplex)

Tabela de adrese MAC: 288K

Tehnologie de cablare: Base-X SFP28

Tensiune de intrare: 100–240 VAC 50/60 Hz

Tip Switch: Retea Fibra Optica

Viteza transfer LAN: 25 Gbps

Porturi RJ 45: 24 - 32

Porturi SFP: 24X 25GBE SFP28

Viteza Transfer: 10G+

Garantia Produsului: 12 luni
