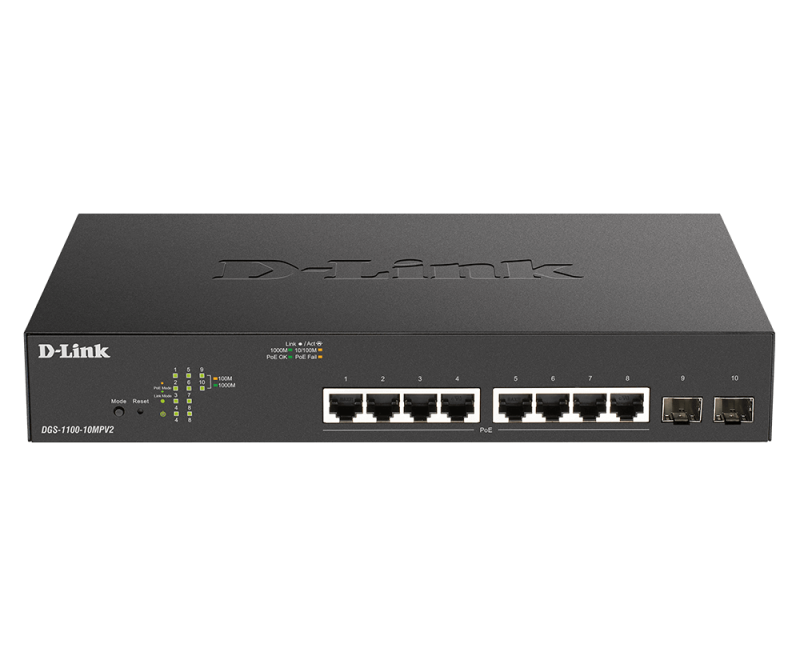

D-Link DGS-1100-10MPV2 network switch

D-Link DGS-1100-10MPV2. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Garantie: 24 luni


Specificatii tehnice

Certification: FCC A, CE A, VCCI A, C-Tick, BSMIncUL, UL, LVD, CB, BSMI
Jumbo frames support: Yes
MAC address table: 8000 entries
Jumbo frames: 9216
Switching capacity: 20 Gbit/s
Forwarding rate: 14.88 Mpps
Number of queues: 4
Packet buffer memory: 4.1 MB
Rack mounting: Yes
Form factor: 1U
Product colour: Black
Web-based management: Yes
Switch type: Managed
Quality of Service (QoS) support: Yes
Switch layer: L2
Multicast support: Yes
Head-of-line (HOL) blocking: Yes
Number of VLANs: 4094
Virtual LAN features: Port-based VLAN, Tagged VLAN, Voice VLAN
Full duplex: Yes
Auto-negotiation: Yes
10G support: No
Half duplex: Yes
VLAN support: Yes
Link aggregation: Yes
Auto MDI/MDI-X: Yes
Flow control support: Yes
Rate limiting: Yes
Storage relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -10 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 0 - 95%
Heat dissipation: 118.1 BTU/h
Noise level: 37 dB
Mean time between failures (MTBF): 406887 h
Flash memory: 16 MB
SFP module slots quantity: 2
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity: 0
Installed SFP modules quantity: 0
Basic switching RJ-45 Ethernet ports quantity: 8
Power consumption (max): 164.6 W
AC input voltage: 100 - 240 V
Total Power over Ethernet (PoE) budget: 130 W
Power over Ethernet plus (PoE+) ports quantity: 8
Power over Ethernet (PoE): Yes
IGMP snooping: Yes
Security algorithms: SSL/TLS
Queue scheduling algorithms: Weighted Round Robin (WRR)
Depth: 180 mm
Height: 44 mm
Width: 280 mm
Weight: 1.5 kg
