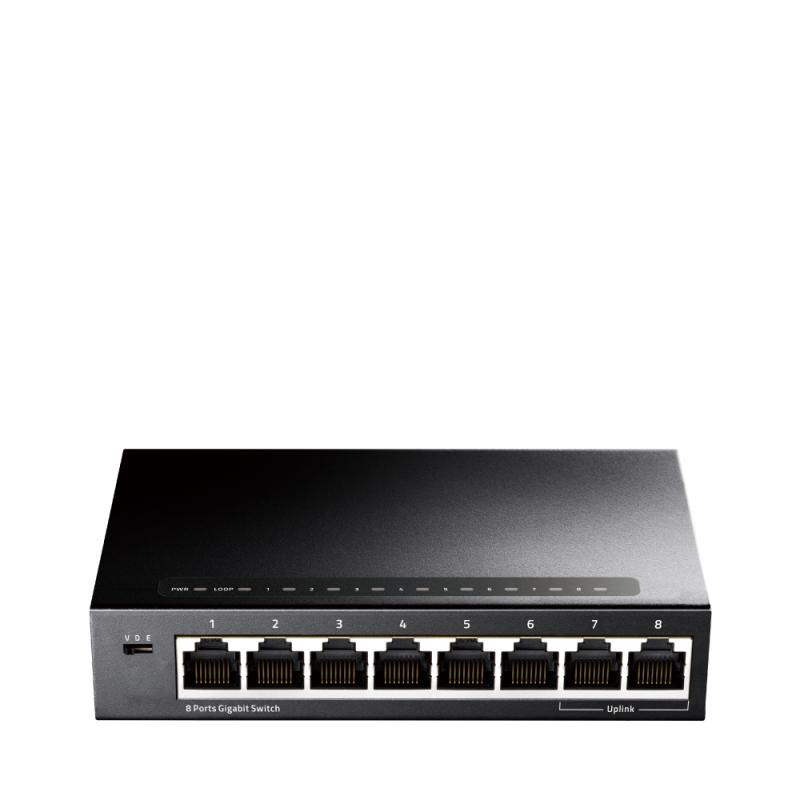

CUDY 8-Port Gigabit Metal Switch

Jumbo frames support: Yes

Store-and-forward: Yes

Switching capacity: 16 Gbit/s

MAC address table: 1000 entries

Jumbo frames: 2000

Throughput: 11.9 Mpps

Packet buffer memory: 2.5 MB

LED indicators: Loop, Link, Power

Stackable: No

Rack mounting: No

Ethernet LAN data rates: 10,100,1000 Mbit/s

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

VLAN support: Yes

Flow control support: Yes

Mean time between failures (MTBF): 100000 h

Products per master (outer) case: 40 pc(s)

Master (outer) case height: 400 mm

Master (outer) case gross weight: 21 kg

Master (outer) case length: 320 mm

Master (outer) case width: 505 mm

Auto-negotiation: Yes

Half duplex: Yes

MAC address auto-aging supported: Yes

MAC address auto-learning supported: Yes

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-TX

Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1

Auto MDI/MDI-X: Yes

Power over Ethernet (PoE): No

Full duplex: Yes

Operating altitude: 0 - 3048 m

Storage relative humidity (H-H): 5 - 90%

Operating temperature (T-T): -10 - 50 °C

Quick start guide: Yes

Cables included: DC

Package height: 63 mm

Package type: Box

Package depth: 120 mm

Package width: 175 mm

Package weight: 500 g

Basic switching RJ-45 Ethernet ports quantity: 8

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Power supply included: Yes

DC input voltage: 5 V

Power source: AC/DC

Width: 137 mm

Height: 25 mm

Weight: 300 g

Depth: 7.7 mm

Layer: Layer-2

Rackable: No

LAN-Port-Type: Gigabit

LAN-Ports: 8

Redundant-PSU: No

Garantia Produsului: 24 luni
