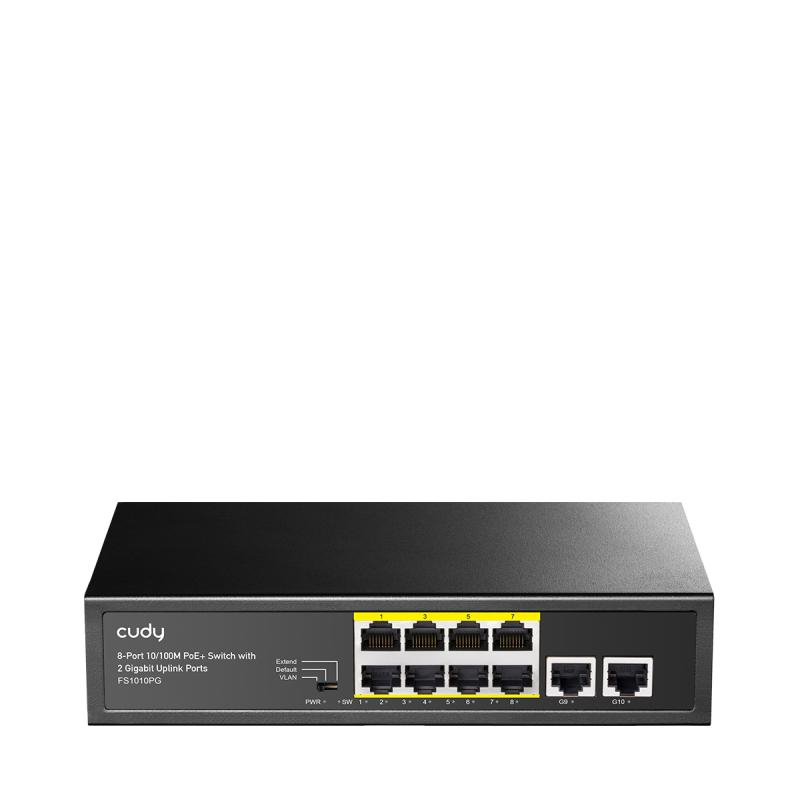

CUDY 8-Port 10/100M PoE+ Switch 2 Gigabi

CUDY 8-Port 10/100M PSE RJ-45 +2 RJ45 10/100/1000M Uplink Port Unmanaged PoE+ Switch,CCTV/VLAN/Watchdog ON/OFF Switch(New version), long distance:250M at CCTV mode. Support PD Alive Function, ±4 KV Surge Protection, 802.3af/at standard, Alternative 1/2(+),3/6(-), Steel Case,Watchdog, 120W Internal Power Supply
Garantie: 24 luni


Specificatii tehnice

Layer: Layer-2
Jumbo frames support: Yes
MAC address table: 8000 entries
Store-and-forward: Yes
Packet buffer memory: 0.25 MB
Forwarding rate: 1.48 Mpps
Jumbo frames: 1528
Stackable: No
Product colour: Black
Housing material: Metal
LED indicators: Activity, Link, PoE, Power
Full duplex: Yes
VLAN support: Yes
Ethernet LAN data rates: 10,100 Mbit/s
Flow control support: Yes
Cable types supported: Cat3, Cat4, Cat5, Cat5e
Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
Half duplex: Yes
Storage relative humidity (H-H): 5 - 90%
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Bandwidth: 2 Gbit/s
Cables included: AC
Fanless: Yes
Plug and Play: Yes
Mean time between failures (MTBF): 50000 h
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Uplink ports quantity: 2
Basic switching RJ-45 Ethernet ports quantity: 8
Power connector: AC-in jack
Surge protection voltage: 4 kV
Surge protection: Yes
Power supply included: Yes
Power source: AC
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 8
Power over Ethernet plus (PoE+) ports quantity: 1
Total Power over Ethernet (PoE) budget: 120 W
Power over Ethernet (PoE) power per port: 30 W
Height: 44 mm
Depth: 150 mm
Width: 220 mm
Rackable: No
LAN-Port-Type: Gigabit
LAN-Ports: 8
Redundant-PSU: No
