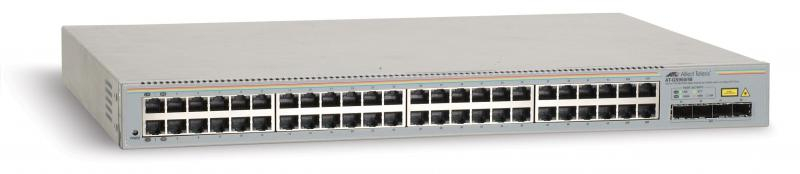

ATI SW 48P GB 4SFP L2 WEBSM ECO

Switch ALLIED TELESIS GS950 48 porturi Gigabit 4 porturi SFP rackabil Layer 2 smart-managed, 5 ani garantie prin inregistrare on-line
Garantie: 24 luni


Specificatii tehnice

Layer: Layer-2
Stackable: No
Console port: RJ-45
LED indicators: Yes
Certification: UL 1950, FCC/EN55022, VCCI, C-Tick, EN60950, EN55024, CE, CSA, CUL
Supported data transfer rates: 10/100/1000 Mbps
MAC address table: 8000 entries
Maximum data transfer rate: 1 Gbit/s
Throughput: 14.88 Mpps
Packet buffer memory: 6 MB
Jumbo frames support: Yes
Rack mounting: Yes
Form factor: 1U
Product colour: Grey
Mean time between failures (MTBF): 263000 h
VLAN support: Yes
Flash memory: 4 MB
Flow control support: Yes
Rate limiting: Yes
Quality of Service (QoS) support: Yes
Harmonized System (HS) code: 85176990
Web-based management: Yes
Switch type: Managed
Switch layer: L2
MIB support: RFC 1213, RFC 1643, RFC 1493
Multicast support: Yes
10G support: No
Broadcast storm control: Yes
Spanning tree protocol: Yes
Head-of-line (HOL) blocking: Yes
Auto MDI/MDI-X: Yes
Power over Ethernet (PoE): No
Port mirroring: Yes
Link aggregation: Yes
Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX
Storage temperature (T-T): -25 - 70 °C
Operating temperature (T-T): 0 - 40 °C
Storage relative humidity (H-H): 5 - 95%
Operating relative humidity (H-H): 5 - 90%
Security features: 802.1X
Dimensions (WxDxH): 444 x 322 x 43.5 mm
Packet transfer speed: 1488000 pps
Power requirements: 100-240V AC, 50/60Hz
Connectivity technology: Wired
Combo SFP ports quantity: 4
Basic switching RJ-45 Ethernet ports quantity: 48
SFP/SFP+ slots quantity: 4
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power connector: DC-in jack
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Management protocols: IGMP, SNMP, FTP
IGMP snooping: Yes
MAC address filtering: Yes
Static port security: Yes
DHCP features: DHCP client
Height: 43.5 mm
Weight: 4.05 kg
Width: 444 mm
Depth: 322 mm
LAN-Ports: 48
LAN port type: Gigabit
Rackable: Yes
Redundant-PSU: No
