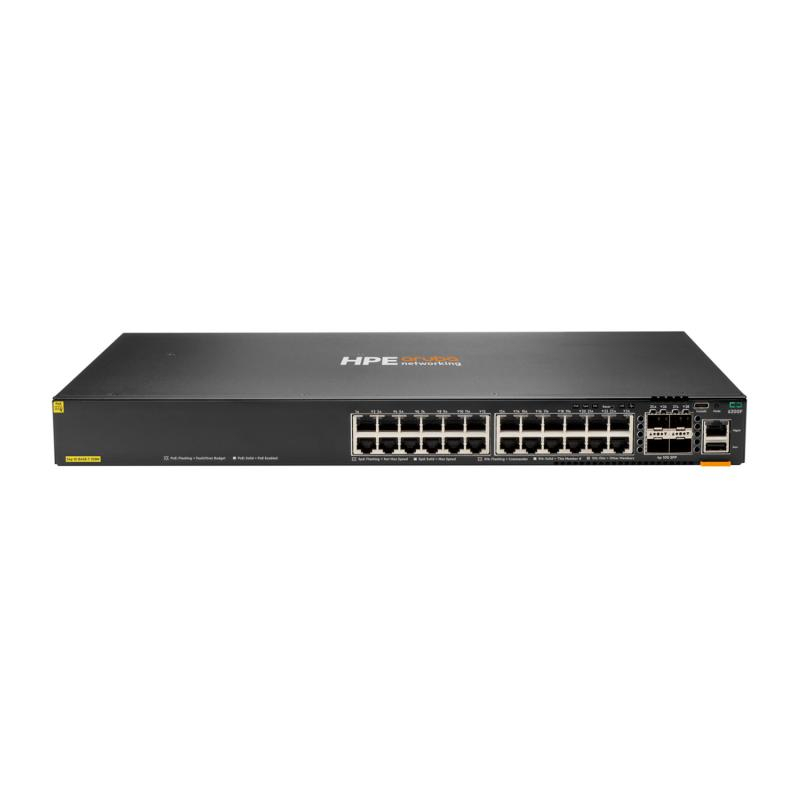

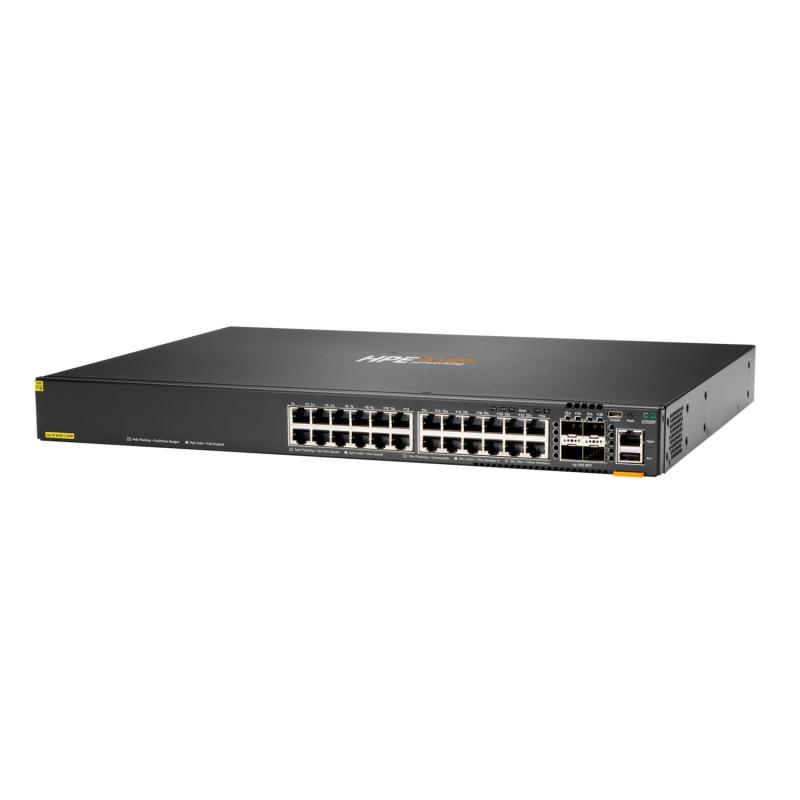

ARUBA 6200F 24G CL4 4SFP+370W SWCH

Jumbo frames support: Yes

Switching capacity: 128 Gbit/s

MAC address table: 32768 entries

Throughput: 95.2 Mpps

Latency (1 Gbps): 2.28 µs

Latency (10 Gbps): 1.46 µs

Packet buffer memory: 8 MB

Airflow direction: Front-to-back airflow

Rack mounting: Yes

Stackable: Yes

Form factor: 1U

Flash memory: 16384 MB

Flow control support: Yes

VLAN support: Yes

Quality of Service (QoS) support: Yes

Processor frequency: 1800 MHz

Processor model: ARM Cortex-A72

Built-in processor: Yes

Switch layer: L3

Switch type: Managed

Multicast support: Yes

MLD entries: 1024

Spanning tree protocol: Yes

Number of VLANs: 4094

10G support: Yes

Power over Ethernet (PoE): Yes

Link aggregation: Yes

Operating altitude: 0 - 3048 m

Storage relative humidity (H-H): 15 - 90%

Non-operating altitude: 0 - 4600 m

Operating temperature (T-T): 0 - 45 °C

Storage temperature (T-T): -40 - 70 °C

Operating relative humidity (H-H): 15 - 95%

Transmission distance (max): 10 km

Physical stacking (units): 8

Memory type: DDR4-SDRAM

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Installed SFP+ modules quantity:

Installed SFP modules quantity:

Basic switching RJ-45 Ethernet ports quantity: 24

SFP+ module slots quantity: 4

Console port: USB

USB Type-A ports quantity: 1

SFP module slots quantity: 4

Number of power supply units: 1

Power supply included: Yes

Power source: AC

AC input voltage: 100 - 240 V

Total Power over Ethernet (PoE) budget: 370 W

Management protocols: SNMPv2c, SNMPv3

Routing protocols: OSPFv2, OSPFv3, RIP-2

Authentication: MAC-based authentication, Web-based authentication

Authentication type: RADIUS, TACACS+

DHCP features: DHCP relay, DHCP server

IGMP snooping: Yes

Access Control List (ACL): Yes

Weight: 4.9 kg

Width: 442 mm

Depth: 327 mm

Height: 43.9 mm

Garantia Produsului: 999 luni
