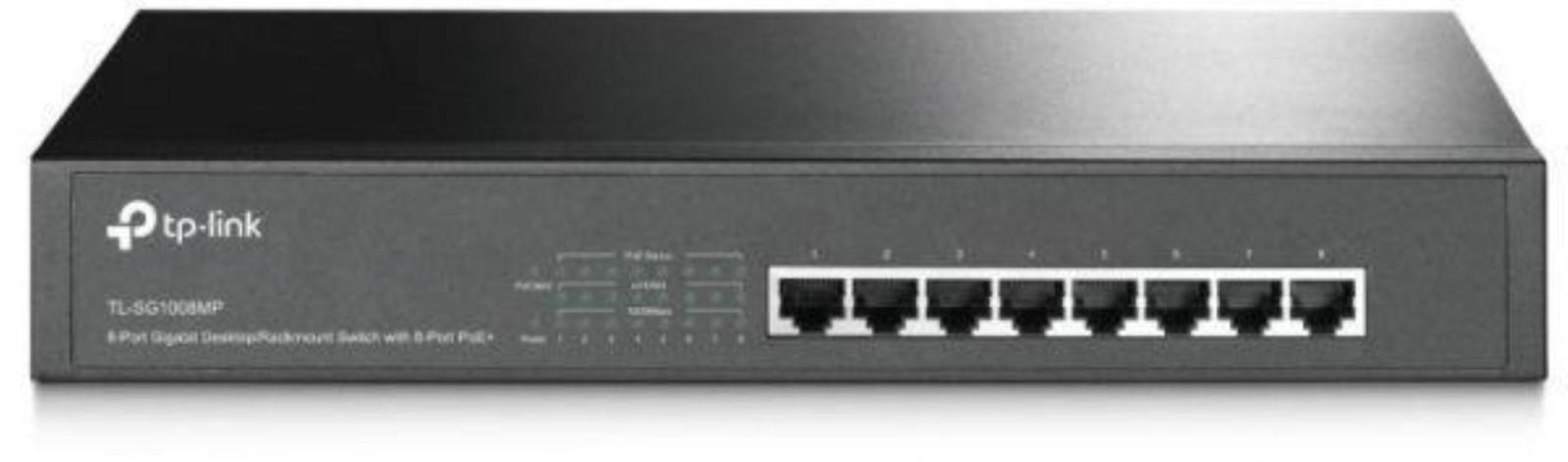

TPL SW 8P-GB UNMNGD DESK/RACK

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

Certification: FCC, CE, RoHS

Store-and-forward: Yes

Switching capacity: 16 Gbit/s

MAC address table: 4000 entries

Forwarding rate: 11.904 Mpps

Jumbo frames support: Yes

Jumbo frames: 16000

Packet buffer memory: 1.5 MB

Number of fans: 1 fan(s)

Stackable: No

Rack mounting: Yes

Form factor: 1U

Product colour: Black

Housing material: Metal

LED indicators: Yes

Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3x

Flow control support: Yes

Mean time between failures (MTBF): 1 h

Harmonized System (HS) code: 85176990

Switch type: Unmanaged

10G support: No

Half duplex: Yes

Cable types supported: Cat3, Cat4, Cat5, Cat5e

MAC address auto-aging supported: Yes

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T

Auto-negotiation: Yes

Full duplex: Yes

Auto MDI/MDI-X: Yes

Power over Ethernet (PoE): Yes

MAC address auto-learning supported: Yes

Operating relative humidity (H-H): 10 - 90%

Operating temperature (T-T): 0 - 40 °C

Storage temperature (T-T): -40 - 70 °C

Storage relative humidity (H-H): 5 - 90%

Heat dissipation: 492.6 BTU/h

Rack mount kit: Yes

User guide: Yes

Cables included: AC

Package type: Box

Package height: 80 mm

Package width: 250 mm

Package depth: 400 mm

Package weight: 2.11 kg

MTBF (PoE): 1 h

Commodity Classification Automated Tracking System (CCATS): 11

Minimum system requirements: 1

Maximum cable length: 100 m

Gigabit Ethernet (copper) ports quantity: 8

Installed SFP+ modules quantity:

Installed SFP modules quantity:

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity: 8

Power supply included: Yes

Power source: AC/PoE

AC input voltage: 100 - 240 V

AC input frequency: 50 - 60 Hz

Power consumption (typical): 140.1 W

Power consumption (max): 144.4 W

Total Power over Ethernet (PoE) budget: 153 W

Power over Ethernet plus (PoE+) ports quantity: 8

Sustainability compliance: Yes

Products per shipping (inner) case: 1 pc(s)

Master (outer) cases per pallet layer: 1 pc(s)

Shipping (inner) case height: 1 mm

Shipping (inner) case width: 1 mm

Shipping (inner) case length: 1 mm

Shipping (inner) case net weight: 1 g

Layers per pallet (air): 1 pc(s)

Layers per pallet (sea): 1 pc(s)

Pallet gross weight (air): 1 g

Master (outer) cases per pallet (air): 11 pc(s)

Products per pallet (air): 1 pc(s)

Pallet gross length: 1 mm

Pallet gross width: 1 mm

Pallet height (air): 1 mm

Pallet gross weight (sea): 1 g

Master (outer) cases per pallet (sea): 1 pc(s)

Products per pallet (sea): 11 pc(s)

Pallet height (sea): 1 mm

Shipping (inner) case gross weight: 1 g

Height: 44 mm

Depth: 180 mm

Width: 294 mm

LAN port type: Gigabit

Garantia Produsului: 60 luni
