Omada 10-Port Gigabit Industrial Easy Mn

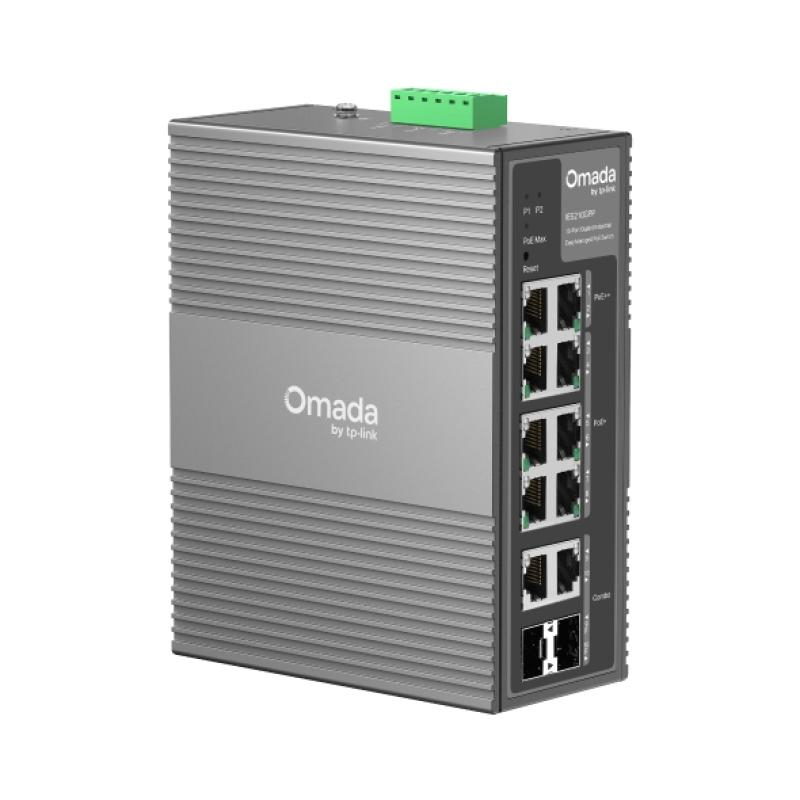

Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++ PORT: 2× Gigabit PoE++ Port, 6× Gigabit PoE+ Ports, 2× Combo Gigabit RJ45/SFP Ports SPEC: 802.3af/at/bt type3, Up to 240 W PoE Power(Depends on power input specifications), -40-75 ℃ Operating Temperature, DIN-rail/Wall mounting Aluminum Case and Fanless Power：Dual 12-57V DC Input, power adapter is not included FEATURE: Centralized Management by Omada SDN Controller, Omada App. Flow Control, Loopback Detection, Port Mirroring, LAG, VLAN, IGMP Snooping, QoS, Storm Control
Garantie: 24 luni


Specificatii tehnice

Forwarding rate: 14.88 Mpps
LED indicators: Yes
Store-and-forward: Yes
Jumbo frames: 15000
Packet buffer memory: 4000 MB
Switching capacity: 20 Gbit/s
MAC address table: 8000 entries
Jumbo frames support: Yes
Rack mounting: Yes
Form factor: DIN rail
Product colour: Grey
Ethernet LAN data rates: 10,100,1000 Mbit/s
VLAN support: Yes
Quality of Service (QoS) support: Yes
Flow control support: Yes
Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Cloud-managed: Yes
Web-based management: Yes
Switch type: Managed
Multicast support: Yes
Auto-negotiation: Yes
10G support: No
Broadcast storm control: Yes
Auto MDI/MDI-X: Yes
Number of VLANs: 4000
Port mirroring: Yes
Power over Ethernet (PoE): Yes
Link aggregation: Yes
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 2
Basic switching RJ-45 Ethernet ports quantity: 8
DC input voltage: 12 - 57 V
Power source: DC
Total Power over Ethernet (PoE) budget: 240 W
Power over Ethernet plus (PoE+) ports quantity: 6
Power over Ethernet 4PPoE (PoE++) ports quantity: 2
Loop protection: Yes
DHCP features: DHCP client
IGMP snooping: Yes
Height: 60 mm
Depth: 120 mm
Width: 155 mm
