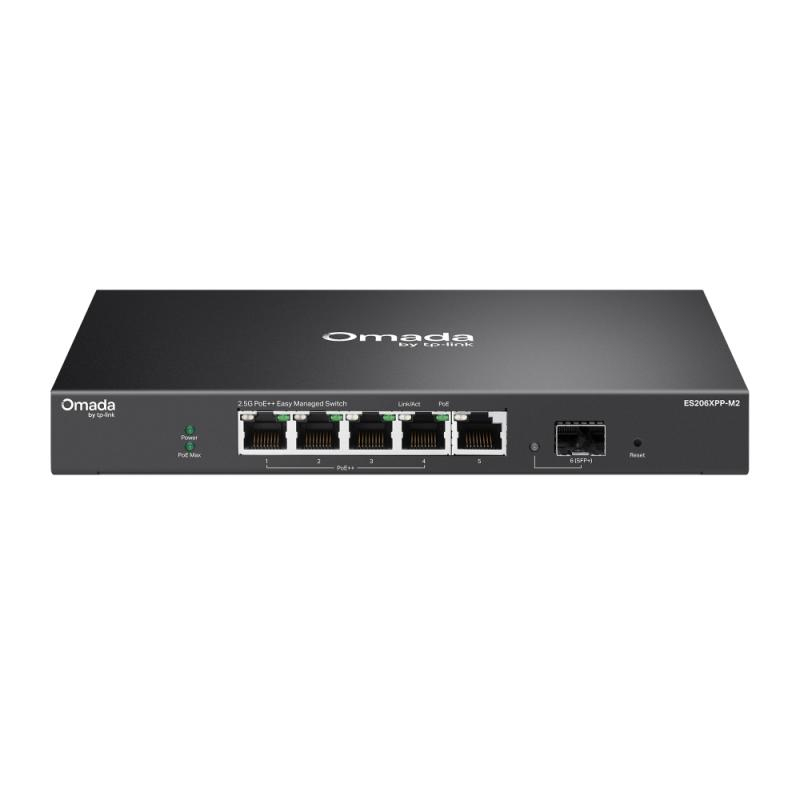

Omada 5-Port 2.5GBASE-T ES206XPP-M2

Omada 5-Port 2.5GBASE-T and 1-Port 10GE SFP+ Easy Managed Switch with 4- Port PoE++ PORT: 4× 2.5G PoE++ Ports, 1× 2.5G Non-PoE RJ45 Port, 1× 10G SFP+ Slot SPEC: 802.3af/at/bt type3/bt type4, 120 W PoE Power, Desktop Steel Case and Fanless FEATURE: Centralized Management by Omada SDN Controller, Omada App. Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping, QoS, Storm Control
Garantie: 36 luni


Specificatii tehnice

Stackable: No
LED indicators: Yes
Forwarding rate: 33.48 Mpps
Certification: CE, FCC, RoHS
Packet buffer memory: 0.64 MB
Store-and-forward: Yes
Switching capacity: 45 Gbit/s
Jumbo frames: 10
Jumbo frames support: Yes
MAC address table: 16000 entries
Form factor: Desktop/Wall-Mounting
Product colour: Black
Flash memory: 64 MB
Quality of Service (QoS) support: Yes
VLAN support: Yes
Flow control support: Yes
Firmware upgradeable: Yes
Switch layer: L2
Switch type: Managed
Virtual LAN features: MTU VLAN, Port-based VLAN
Port mirroring: Yes
Power over Ethernet (PoE): Yes
Link aggregation: Yes
10G support: No
Broadcast storm control: Yes
Storage relative humidity (H-H): 5 - 90%
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): -5 - 40 °C
Basic switching RJ-45 Ethernet ports quantity: 5
Installed SFP+ modules quantity: 0
Installed SFP modules quantity: 0
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
SFP+ module slots quantity: 1
Power source: AC/PoE
AC input voltage: 100 - 240 V
Power supply included: Yes
Power over Ethernet (PoE) type supported: PoE++ (4PPoE)
Power over Ethernet 4PPoE (PoE++) ports quantity: 4
Total Power over Ethernet (PoE) budget: 120 W
Power over Ethernet (PoE) power per port: 90 W
DHCP features: DHCP client
IGMP snooping: Yes
Width: 209 mm
Height: 26 mm
Depth: 126 mm
Rackable: No
LAN-Port-Type: FastEthernet
LAN-Ports: 8
Redundant-PSU: No
