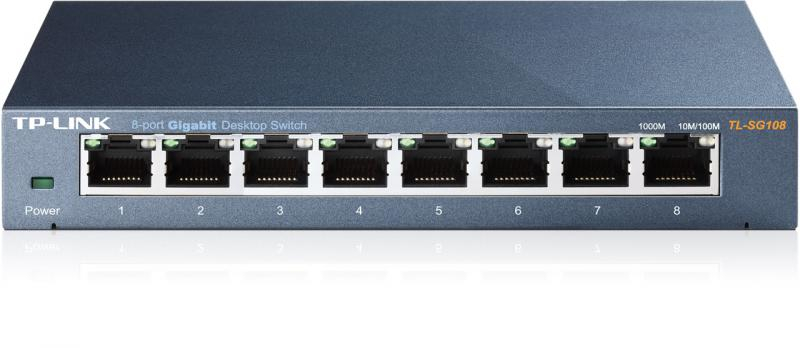

TPL SW 8P-GB UNMNGD DESK METAL

"8-Port Gigabit Desktop Switch PORT: 8× Gigabit RJ45 Ports SPEC: Desktop Steel Case FEATURE: Plug and Play"
Garantie: 60 luni


Specificatii tehnice

Forwarding rate: 11.9 Mpps
LED indicators: Yes
Certification: CE, FCC, RoHS
Switching capacity: 16 Gbit/s
Supported data transfer rates: 10/100/1000Mbps
Maximum data transfer rate: 2 Gbit/s
Jumbo frames: 16000
Packet buffer memory: 1.5 MB
MAC address table: 4096 entries
Store-and-forward: Yes
Jumbo frames support: Yes
Rack mounting: No
Product colour: Black
Wall mountable: Yes
Ethernet LAN: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Quality of Service (QoS) support: Yes
Flow control support: Yes
Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Bandwidth: 16 Gbit/s
Harmonized System (HS) code: 85176990
Switch type: Unmanaged
Switch layer: L2
Multicast support: Yes
10G support: No
Cable types supported: Cat3, Cat4, Cat5, Cat5e
MAC address auto-aging supported: Yes
MAC address auto-learning supported: Yes
Power over Ethernet (PoE): No
Auto MDI/MDI-X: Yes
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Auto-negotiation: Yes
Full duplex: Yes
Ethernet interface type: Gigabit Ethernet
Storage relative humidity (H-H): 5 - 90%
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Packet transfer speed: 14880pps/148800pps/1488000pps
Power LED: Yes
Connectivity technology: Wired
Wi-FI: No
Quick start guide: Yes
User guide: Yes
Cables included: AC
Manual: Yes
Package height: 92 mm
Package type: Box
Package width: 130 mm
Package weight: 510 g
Package depth: 191 mm
Installed QSFP+ modules quantity: 0
Gigabit Ethernet (copper) ports quantity: 8
Installed SFP modules quantity: 0
Installed SFP+ modules quantity: 0
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

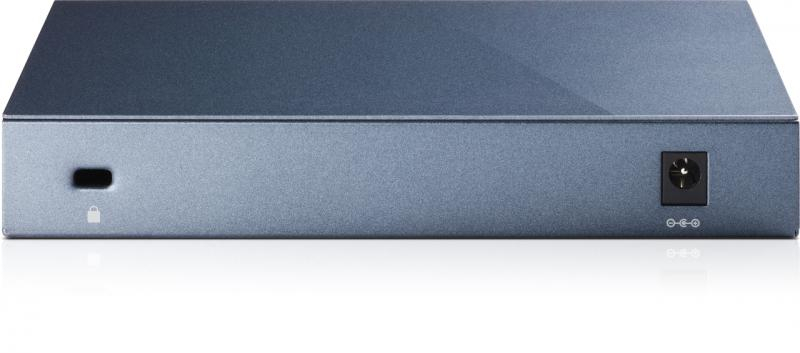

Power connector: DC-in jack
Input current: 0.6 A
Power supply included: Yes
Input voltage: 9 V
Power consumption (max): 33 W
AC input voltage: 220 V
AC input frequency: 50 Hz
Power source: DC
Switching protocols: CSMA/CD
GARP VLAN Registration Protocol (GVRP): Yes
IGMP snooping: Yes
Access Control List (ACL) IPv6 entries: 11
Depth: 101 mm
Height: 25 mm
Width: 158 mm
LAN port type: Gigabit
