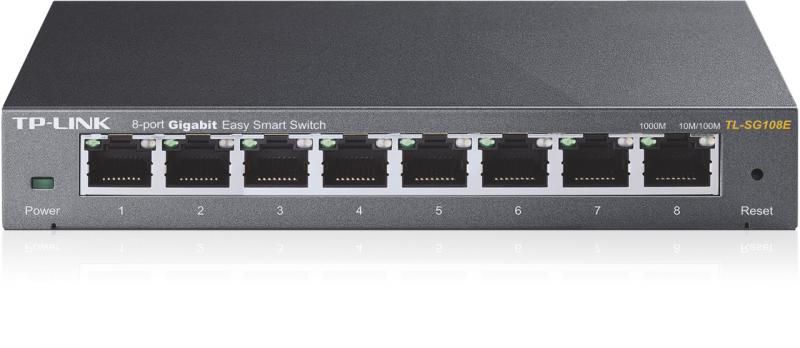

TPL SW 8P-GB EASY-SMART

"8-Port Gigabit Easy Smart Switch PORT: 8× Gigabit RJ45 Ports SPEC: Desktop Steel Case FEATURE: MTU/Port/Tag-based VLAN, QoS, IGMP Snooping, Web/Utility Management, Plug and Play"
Garantie: 60 luni


Specificatii tehnice

Forwarding rate: 11.9 Mpps
LED indicators: Yes
Certification: FCC, CE, RoHS
MAC address table: 4000 entries
Store-and-forward: Yes
Switching capacity: 16 Gbit/s
Throughput: 11.9 Mpps
Jumbo frames support: Yes
Jumbo frames: 16000
Packet buffer memory: 1.5 MB
Number of queues: 4
Product colour: Black
Housing material: Metal
Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Rate limiting: Yes
Plug and Play: Yes
Quality of Service (QoS) support: Yes
VLAN support: Yes
Harmonized System (HS) code: 85176990
Web-based management: Yes
Switch type: Managed
Switch layer: L2
Number of multicast groups filtered: 128
Security algorithms: SNMP, SNMPv2, SNMPv3
Virtual LAN features: Port-based VLAN
Number of VLANs: 32
Auto MDI/MDI-X: Yes
Cable types supported: Cat3, Cat4, Cat5, Cat5e
Auto-negotiation: Yes
10G support: No
Broadcast storm control: Yes
Port mirroring: Yes
Power over Ethernet (PoE): No
Link aggregation: Yes
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 12.55 BTU/h
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
User guide: Yes
Cables included: AC
Package type: Box
Package height: 92 mm
Package weight: 630 g
Package depth: 191 mm
Package width: 130 mm
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 8
Gigabit Ethernet (copper) ports quantity: 8
Input voltage: 9 V
AC input voltage: 100 - 240 V
Power source: DC
AC input frequency: 50 - 60 Hz
DC input voltage: 9 V
Input current: 0.6 A
Power supply included: Yes
Power consumption (max): 3.55 W
Loop protection: Yes
IGMP snooping: Yes
Depth: 101 mm
Height: 25 mm
Width: 158 mm
LAN port type: Gigabit
