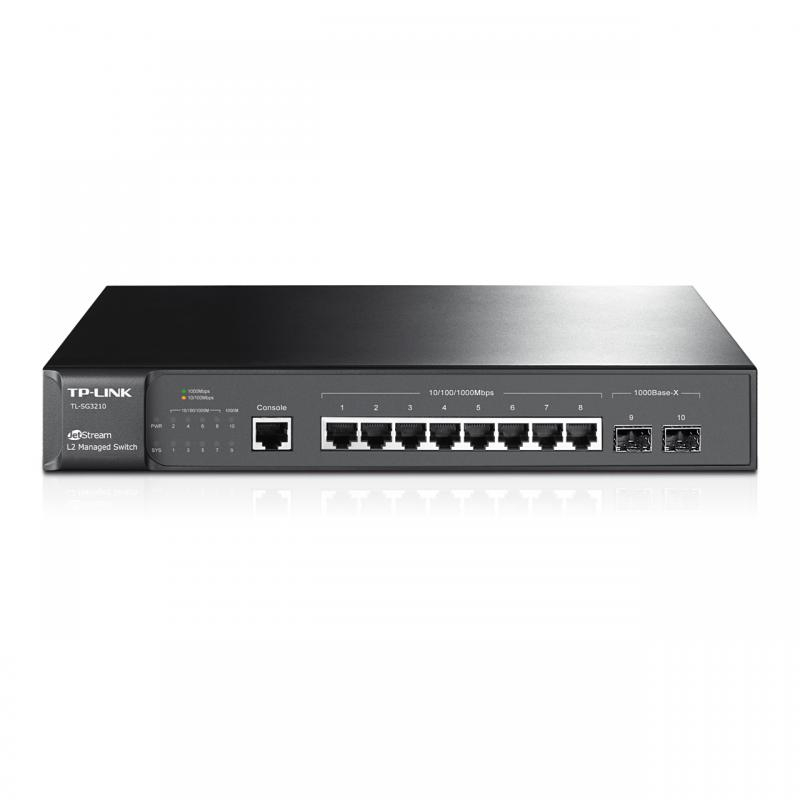

TPL SW 8P-GB 2P-SFP L2 MNGD RM

"JetStream™ 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots PORT: 8× Gigabit RJ45 Ports, 2× Gigabit SFP Slots, RJ45/Micro-USB Console Port SPEC: 1U 13-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static Routing, OAM, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6"
Garantie: 24 luni


Specificatii tehnice

Jumbo frames support: Yes
Static route: Yes
MAC address table: 8000 entries
Jumbo frames: 9000
Switching capacity: 20 Gbit/s
Packet buffer memory: 4.1 MB
Number of IP interfaces: 16
Store-and-forward: Yes
Forwarding rate: 14.9 Mpps
Product colour: Black
Form factor: 1U
Rack mounting: Yes
LED indicators: Yes
Harmonized System (HS) code: 85176990
Switch layer: L2/L3
MIB support: Yes
ARP inspection: Yes
Quality of Service (QoS) support: Yes
Firmware upgradeable: Yes
Web-based management: Yes
System event log: Yes
Switch type: Managed
Configuring Location Settings (CLI): Yes
Cloud-managed: Yes
Multicast support: Yes
Multicast Listener Discovery (MLD) snooping: Y
Head-of-line (HOL) blocking: Yes
Virtual LAN features: Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
IPv4 routes: 48
IPv6 routes: 48
10G support: No
Broadcast storm control: Yes
Spanning tree protocol: Yes
IP routing: Yes
Number of VLANs: 4000
Flow control support: Yes
Rate limiting: Yes
Port mirroring: Yes
VLAN support: Yes
Link aggregation: Yes
Storage relative humidity (H-H): 5 - 90%
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Quick start guide: Yes
User guide: Yes
Manual: Yes
Rack mount kit: Yes
Package depth: 250 mm
Package height: 80 mm
Package width: 400 mm
Package weight: 19 kg
Minimum system requirements: Microsoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux.
Fanless: Yes
Console port: RJ-45/Micro-USB
SFP module slots quantity: 2
Installed SFP+ modules quantity: 0
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power supply included: Yes
Power consumption (max): 6.84 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power source: AC
Power over Ethernet (PoE): No
IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
GARP VLAN Registration Protocol (GVRP): Yes
Management protocols: SNMPv1/v2c/v3, SNTP
Static port security: Yes
DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
IP-MAC-Port binding: Yes
Authentication: MAC-based authentication, Port-based authentication
Authentication type: RADIUS
BPDU filtering/protection: Yes
IGMP snooping: Yes
SSH/SSL support: Yes
Loop protection: Yes
MAC address filtering: Yes
Access Control List (ACL): Yes
Montare in rack: No
Depth: 180 mm
Width: 294 mm
Height: 44 mm
LAN port type: Gigabit
