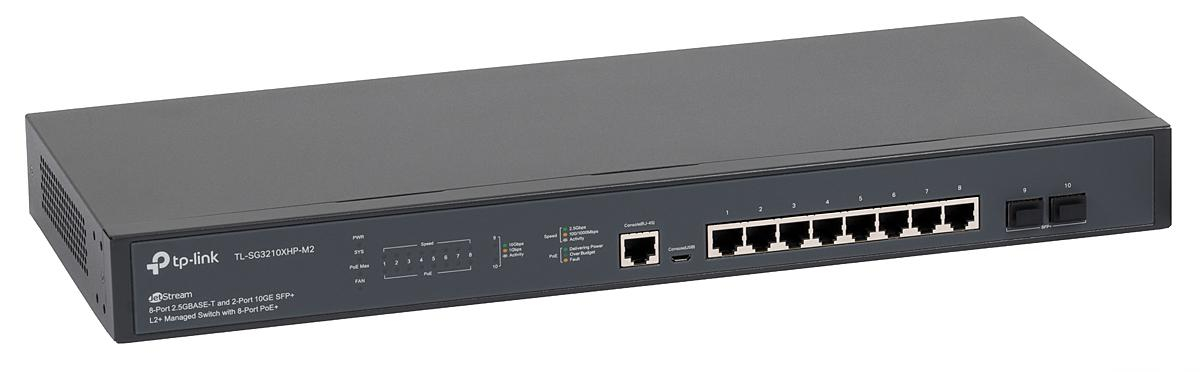

TPL SW 8P-2.5G 2SFP L2 POE SG3210XHP-M2

"JetStream™ 8-Port 2.5GBase-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+ PORT: 8× 2.5G PoE+ Ports, 2× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 802.3at/af, 240 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller,Static Routing, OAM, DDM, sFlow, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6"
Garantie: 24 luni


Specificatii tehnice

Stackable: No
Layer: Layer-2
Console port: RJ-45/Micro-USB
Forwarding rate: 59.52 Mpps
LED indicators: Yes
Certification: CE, FCC, RoHS
Number of static routes: 48
Number of IP interfaces: 16
Switching capacity: 80 Gbit/s
Jumbo frames support: Yes
Static route: Yes
Jumbo frames: 9000
MAC address table: 16000 entries
Packet buffer memory: 12 MB
Form factor: 1U
Number of fans: 2 fan(s)
Rack mounting: Yes
Product colour: Black
Ethernet LAN data rates: 100,1000,2500 Mbit/s
Flow control support: Yes
Rate limiting: Yes
Quality of Service (QoS) support: Yes
VLAN support: Yes
Networking standards: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w
Harmonized System (HS) code: 85176990
MIB support: RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Cloud-managed: Yes
Switch layer: L2
Web-based management: Yes
System event log: Yes
Switch type: Managed
Configuring Location Settings (CLI): Yes
Traffic classification: Yes
ARP inspection: Yes
Multicast support: Yes
Multicast Listener Discovery (MLD) snooping: Y
Virtual LAN features: MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Security algorithms: HTTPS, SSH, SSH-2, SSL/TLS
IP routing: Yes
Number of VLANs: 4000
Head-of-line (HOL) blocking: Yes
Broadcast storm control: Yes
Spanning tree protocol: Yes
10G support: Yes
Port mirroring: Yes
Power over Ethernet (PoE): Yes
Link aggregation: Yes
Storage relative humidity (H-H): 5 - 90%
Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Heat dissipation: 996.35 BTU/h
Quick start guide: Yes
Cables included: AC
Package width: 528 mm
Package depth: 250 mm
Package weight: 2.84 kg
Package type: Box
Package height: 80 mm
SFP+ module slots quantity: 2
Basic switching RJ-45 Ethernet ports quantity: 8
Installed SFP modules quantity: 0
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
SFP module slots quantity: 2
Installed SFP+ modules quantity: 0
2.5G Ethernet (copper) ports quantity: 8
Power connector: AC-in jack
Power supply included: Yes
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power source: AC
Power consumption (max): 292 W
Total Power over Ethernet (PoE) budget: 240 W
Power over Ethernet plus (PoE+) ports quantity: 8
Power over Ethernet (PoE) power per port: 30 W
Management protocols: SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP): Yes
IP-MAC-Port binding: Yes
Authentication: MAC-based authentication, Port-based authentication
Authentication type: AAA, TACACS+
Queue scheduling algorithms: SP, WRR+SP, Weighted Round Robin (WRR)
DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
BPDU filtering/protection: Yes
Static port security: Yes
SSH/SSL support: Yes
Loop protection: Yes
IGMP snooping: Yes
Password protection: Yes
MAC address filtering: Yes
Access Control List (ACL): Yes
Depth: 180 mm
Width: 440 mm
Height: 44 mm
LAN port type: Gigabit
Rackable: No
LAN-Ports: 8
Redundant-PSU: Yes
